2019-2024 GM 1500 3.5" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS755FDSC)

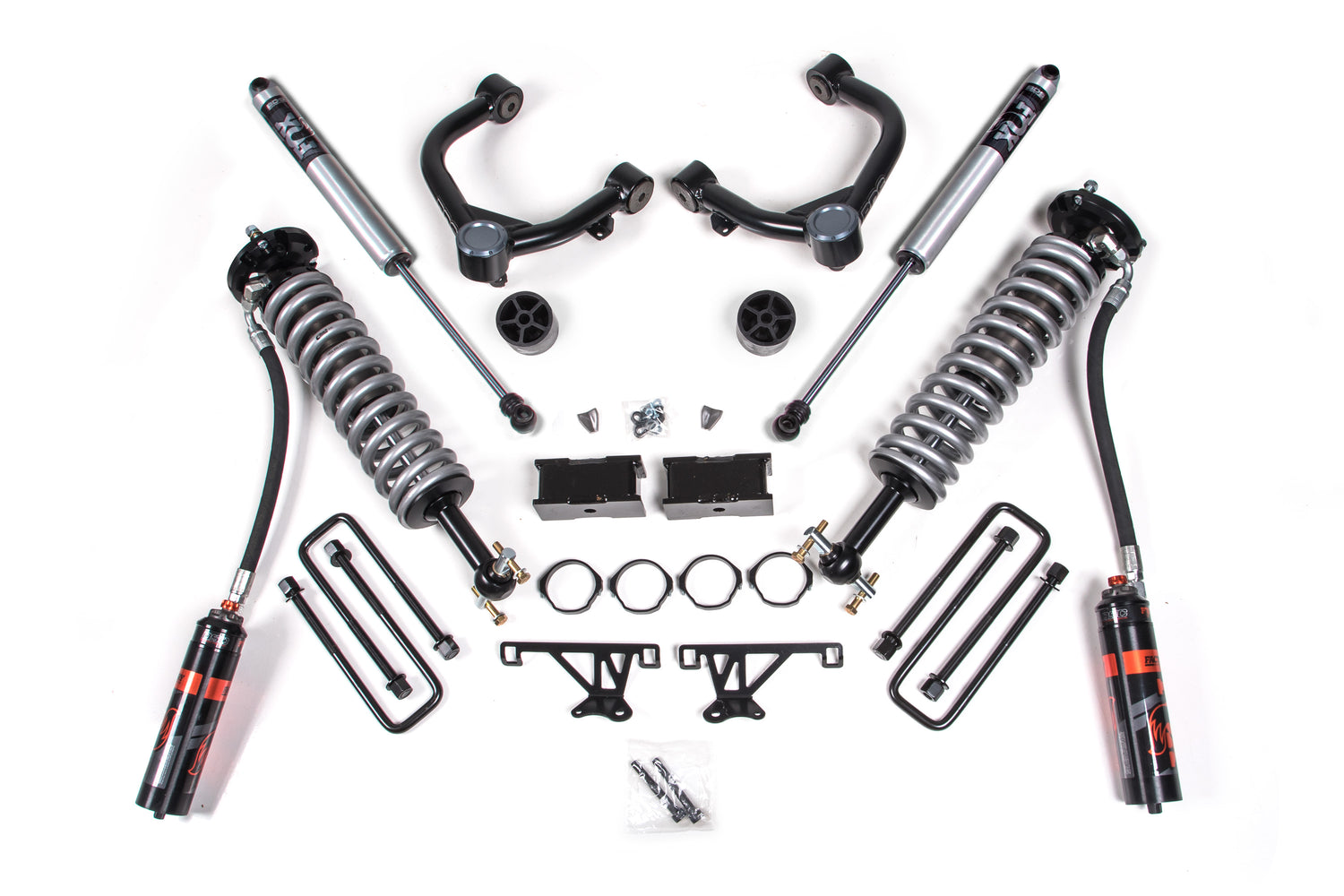

Up the ante in your Silverado/Sierra 1500 with this BDS 3.5" lift kit featuring FOX Performance Elite 2.5 coil-over shocks, with clearance for up to 35" tires (Chevy) or 33" tires (GMC). Up front it includes FOX 2.5 Performance Elite remote reservoir coil-over shocks and heavy duty tubular upper control arms (1.5" OD x .120-wall with indexed ball joint cup and greaseable ball joints) for increased strength. The rear uses fabricated steel lift blocks, longer u-bolts, and a set of FOX 2.0 Performance shocks.

The FOX 2.5 Performance Elite shocks bolt on ready to run, with a remote reservoir for extra fluid capacity to keep them cool in rough terrain. The Dual Speed Compression Adjust adjuster offers 10 low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir for cooling.

Features

• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
• Dual Speed Compression Adjust adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent bolt on installation

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3.5 inch
• Rear Lift Height: 2.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• 5.5 inch max wheel backspacing can be used.
• Will fit Trail Boss/AT4 models, however will net 1.5 inch of lift over factory ride height.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
• Will not fit models equipped with ARC.
• 2.7L Turbo models use Diesel kit for proper skid plate fitment.

Includes

• BDS011350, 2019-2024 Chevrolet Silverado/GMC Sierra 1500 Coilover 3.5 inch Box Kit (UPC 658848611775)
• FOX88306162, Kit: 2019-2024 GM 1500, w/UCA, Front Coilover, 2.5 Series, AL, R/R, 6.0 inch, Non-TB/Non-AT4 3.5 inch Lift, TB/AT4 1.5 inch Lift (UPC 711745603943)
• FOX88326087, 2019-2024 GM 1500, Rear, 2.5 Truck Fox Performance Elite Series, R/R, 10.5 inch, Non-TB/Non-AT4 2.5-4 inch Lift, TB/AT4 0-2 inch Lift, Dual Speed Compression Adjust (UPC 711745591349)
