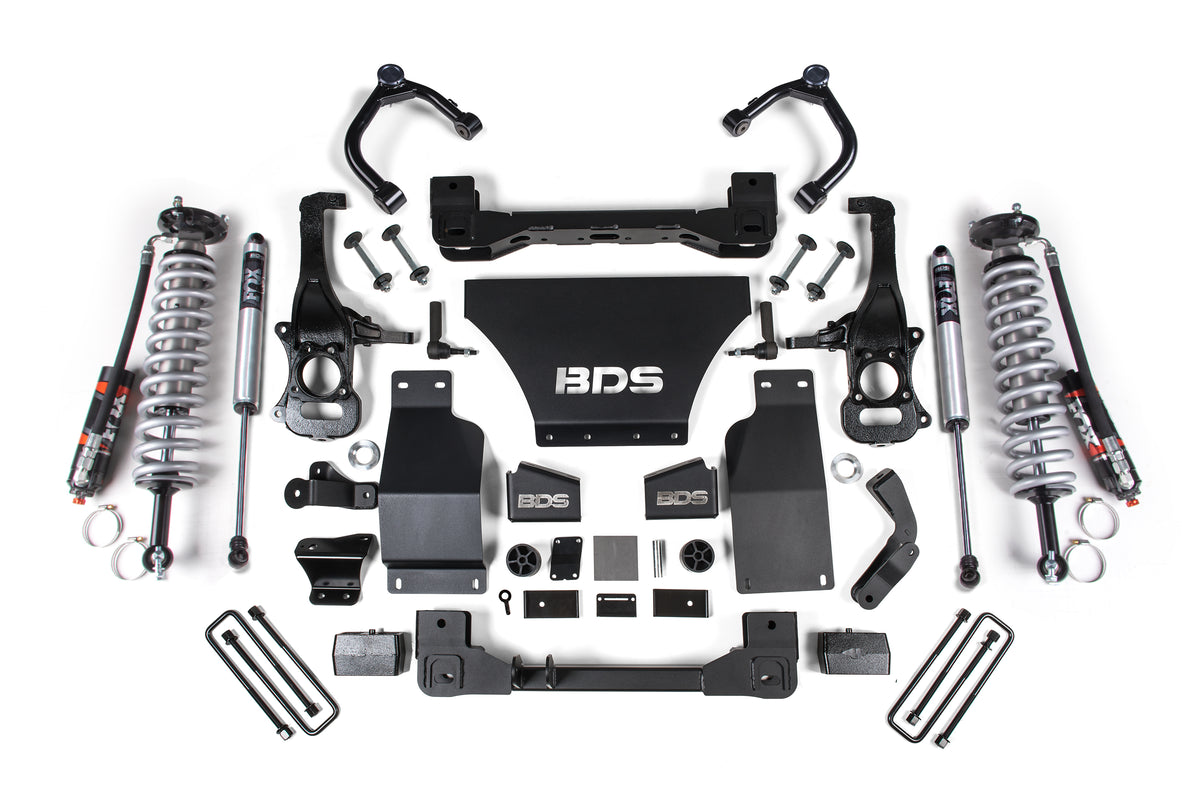

2019-2024 GM 1500 2.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1814FPE)

BDS 2.5" suspension lift for the 2019-2024 Chevy Trail Boss and GMC AT4 1500 with clearance for up to 35" tires, featuring proprietary FOX 2.5 coil-overs for increased travel and rough-terrain capability. Up front it uses top mounted strut spacers, upper control arms, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles with replacement tie rod ends for ESC compatibility. The rear uses a heavy duty lift block, new u-bolts, brake line brackets, and FOX 2.0 Performance shocks. The FOX 2.5 shocks add a remote reservoir and Dual Speed Compression Adjust with 10 low-speed and 12 high-speed settings.

Features

• FOX 2.5 Performance Elite series coilovers with Dual Speed Compression Adjust for improved ride quality, performance, and capability
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• 2-inch impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 2 inch

Notes

• Requires frame bracket modification.
• Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference; stock 20 inch wheels can be reinstalled.
• 17 inch wheels with 4.5 inch backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper; some wheel profiles will not clear it. Test fit before the vehicle is lifted in stock condition.
• 2.7L Turbo models use the diesel kit for proper skid plate fitment.
• If equipped with a mono-leaf rear spring, use part #UBT4064.

Includes

• BDS011316, 2019-2024 Chevy/GMC 1500 4 inch Rear Box Kit (UPC 658848611737)
• BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible) (UPC 658848615056)
• BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible (UPC 658848615063)
• BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2 (UPC 658848615131)
• BDS021685, 2019-2024 Chevy/GMC 1500 6 inch Diesel Front Box Kit 2 of 2 (UPC 658848615162)
• BDS121633, 2019-2024 Chevy/GMC 1500 Coilover Reservoir Mounting Bracket Kit (UPC 658848619184)
• FOX88406321, Kit: BDS 2019-2024 GM 1500, 2.5 Fox Performance Elite Series, R/R, Front, C/O, 4 inch Lift, Dual Speed Compression Adjust
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
