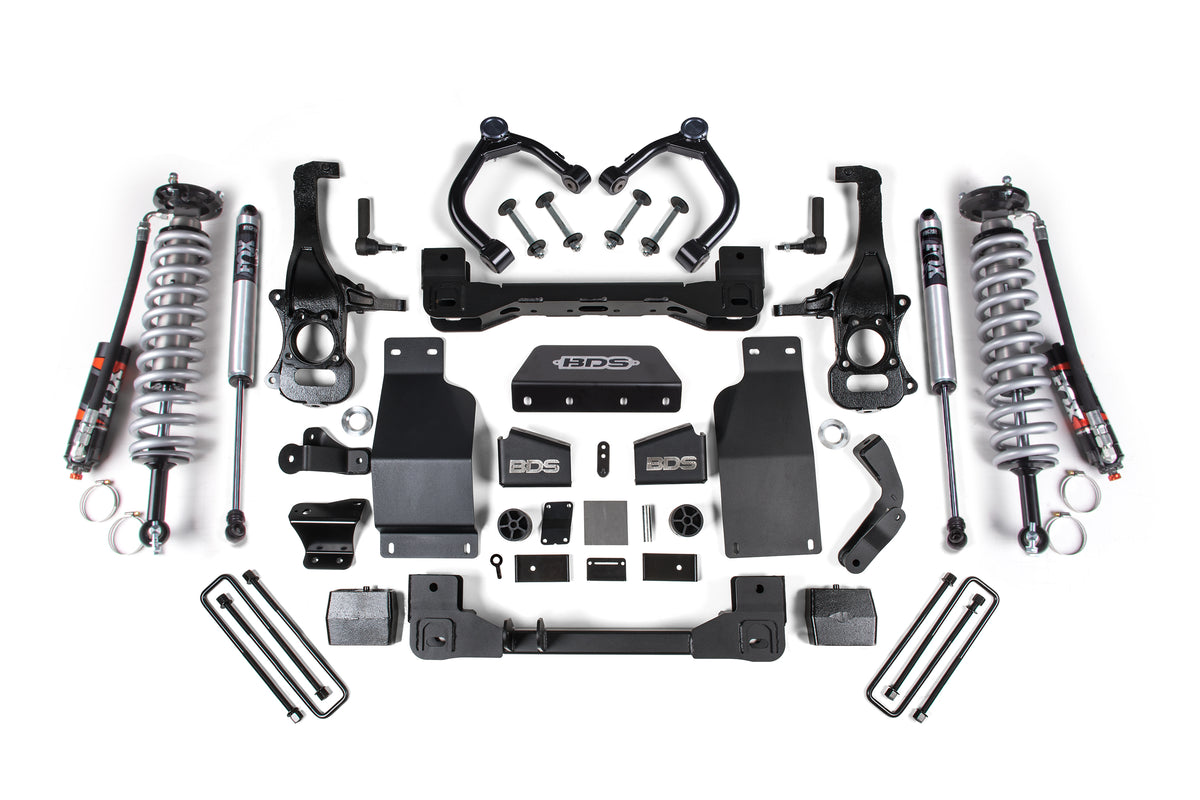

2019-2025 GM 1500 4" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS786FPE)

Step up your Chevy Trail Boss and GMC AT4 1500 with this BDS 4" suspension lift kit featuring FOX 2.5 Performance Elite coil-overs, with clearance for up to 35" tires. It uses BDS's high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry. Up front are top-mounted strut spacers, upper control arms, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates, CNC-machined ductile iron steering knuckles for ESC compatibility, plus sway bar drops, bump stop extensions, brake line brackets and CV spacers. The rear uses a heavy duty lift block, new u-bolts, brake line brackets and NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• FOX 2.5 Performance Elite coilovers with Dual Speed Compression Adjust for improved ride quality, performance, and capability
• DSC adjuster offers 10 low-speed and 12 high-speed compression levels via two knobs
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• 2.5" impact extruded aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• External reservoir separates shock oil from the high-pressure nitrogen, with black anodized aluminum reservoir for cooling
• Fully serviceable for a lifetime of use
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 34x12.5, 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/6.25

Notes

• Requires frame bracket modification.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference; stock 20" wheels can be reinstalled.
• 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure clearance to the steering knuckle / tie rod.
• Front skid plate will not work with 2.7L Turbo engines.
• 2.7L Turbo models use the diesel kit for proper skid plate fitment.

Includes

• BDS011518, 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit (UPC 658848611935)
• BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible) (UPC 658848615056)
• BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible (UPC 658848615063)
• BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2 (UPC 658848615131)
• BDS021685, 2019-2024 Chevy/GMC 1500 6 inch Diesel Front Box Kit 2 of 2 (UPC 658848615162)
• BDS121633, 2019-2024 Chevy/GMC 1500 Coilover Reservoir Mounting Bracket Kit (UPC 658848619184)
• FOX88406323, Kit: BDS 2019-2024 GM 1500, 2.5 Fox Performance Elite Series, R/R, Front, C/O, 6 inch Lift, Dual Speed Compression Adjust
• FOX88426023, 2019-2024 GM 1500, 2.5 Perf. Elite Series, R/R, Rear, 4-6 inch Lift, Dual Speed Compression Adjust
