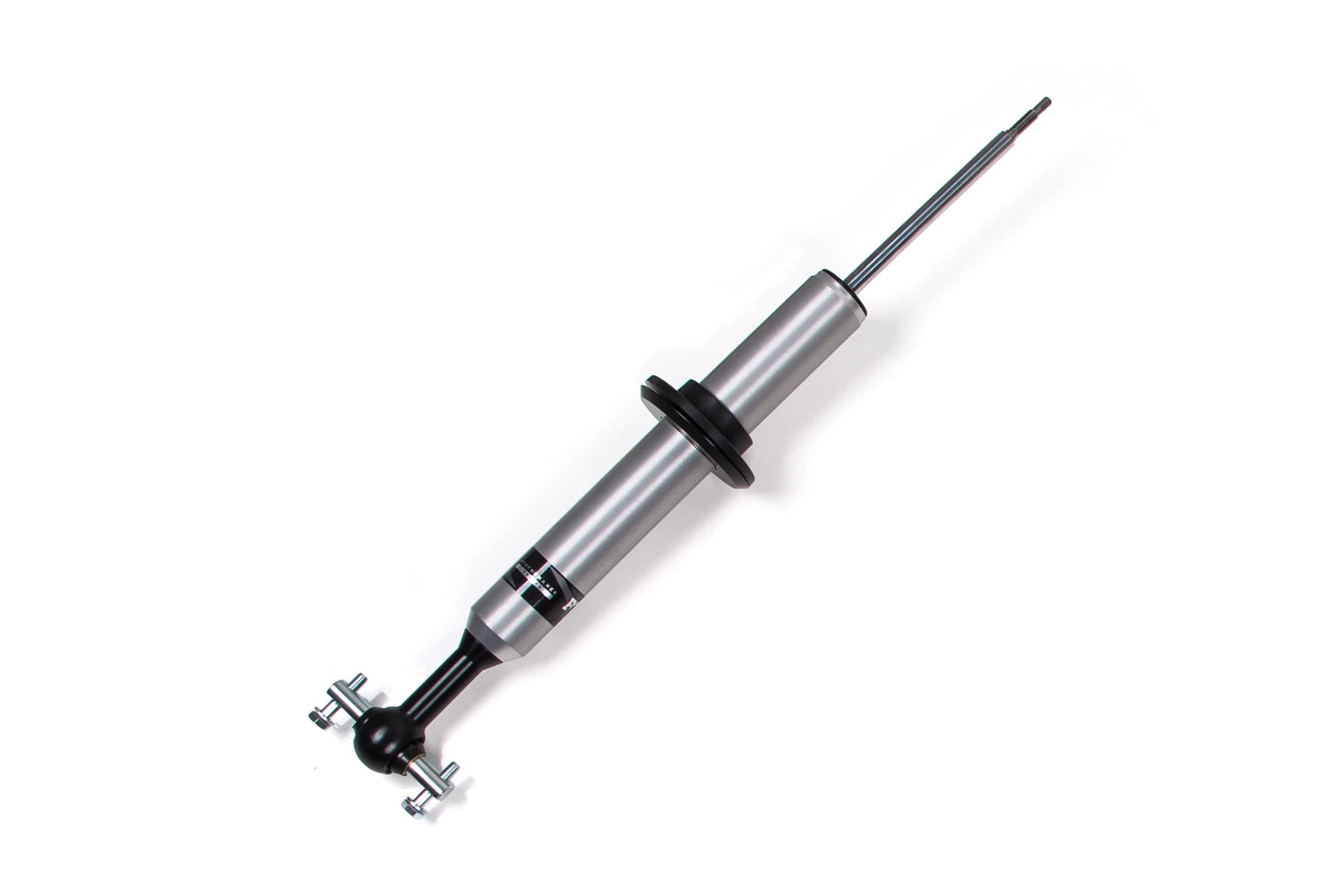

2019-2026 GM 1500 Fox 2.0 Series Front Strut 4-6" Lift (FOX98662000)

Improve on-road comfort and off-road control of your 2019-2026 Chevy Silverado or GMC Sierra 1500 with FOX Performance Series 2.0 Snap Ring IFP (internal floating piston) shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Two predetermined preload settings allow a choice of 4- or 6-inches of lift. Designed to work in conjunction with a BDS lift kit suspension system.

Features

• Custom-molded spring seat so you can reuse the stock spring and mounting hardware
• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design

Specs

• Adjustable Damping : No
• Compressed Length : 23.25
• Extended Length : 28.64
• Finish : Clear-anodized
• Gas Charged : Yes
• Lower Mount Code : OEM
• Lower Mount Type : Bar Pin
• Shaft Diameter : 5_8
• Travel Length : 5.39
• Type : Coil-Over
• Upper Mount Code : OEM
• Upper Mount Type : Stem
