2019-2025 Ram 1500 2" Pre-Load Spacer Front Leveling Kit (66-1920)

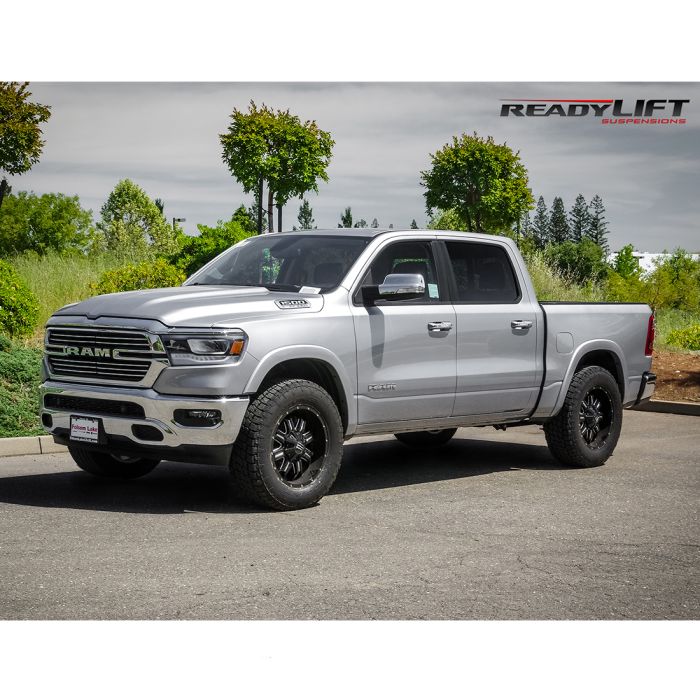

The ReadyLIFT 2.0-inch Pre-Load Spacer Front Leveling Kit is a CNC-machined billet aluminum system designed to properly level the front stance of the new body style Ram 1500 4WD trucks. This kit uses pre-load spring spacer technology to achieve 2 inches of front lift safely, avoiding the stress on composite upper control arm ball joints that traditional strut extension kits can cause. This system is designed to get the job done right and affordably, while enabling the use of larger wheels and tires.

Features

• Provides 2 inches of front leveling lift.
• Constructed from CNC machined billet aluminum.
• Uses pre-load spring spacer design to generate lift without putting excessive stress on the ball joint area.
• The kit is suitable for the new body style Ram 1500 2WD/4WD trucks, including the Rebel.
• Designed to fit Ram 1500 trucks with both V8 (tested) and V6 engines.
• This Kit is not for use on trucks with the Classic body style

Notes

• Requires a spring compressor to install.
• Use of pre-load spacer technology will deliver a firmer ride than the factory tuning. For customers wishing to maintain factory ride and handling, a top spacer leveling kit is recommended (Part #66-1921).
• Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package."
• Not for use on air-suspension equipped trucks.
• Do not install if the wheel hub to fender lip height measurement is greater than 22 inches, as this may indicate pre-existing lift.

Tire Fitment

• Maximum recommended tire size is 285/65-20 on a 20x9 inch wheel with +18 offset.

Specs

• Front Lift: 2.0 inches
• Spacer Type: Pre-Load Spring Spacer
• Material: CNC machined billet Aluminum

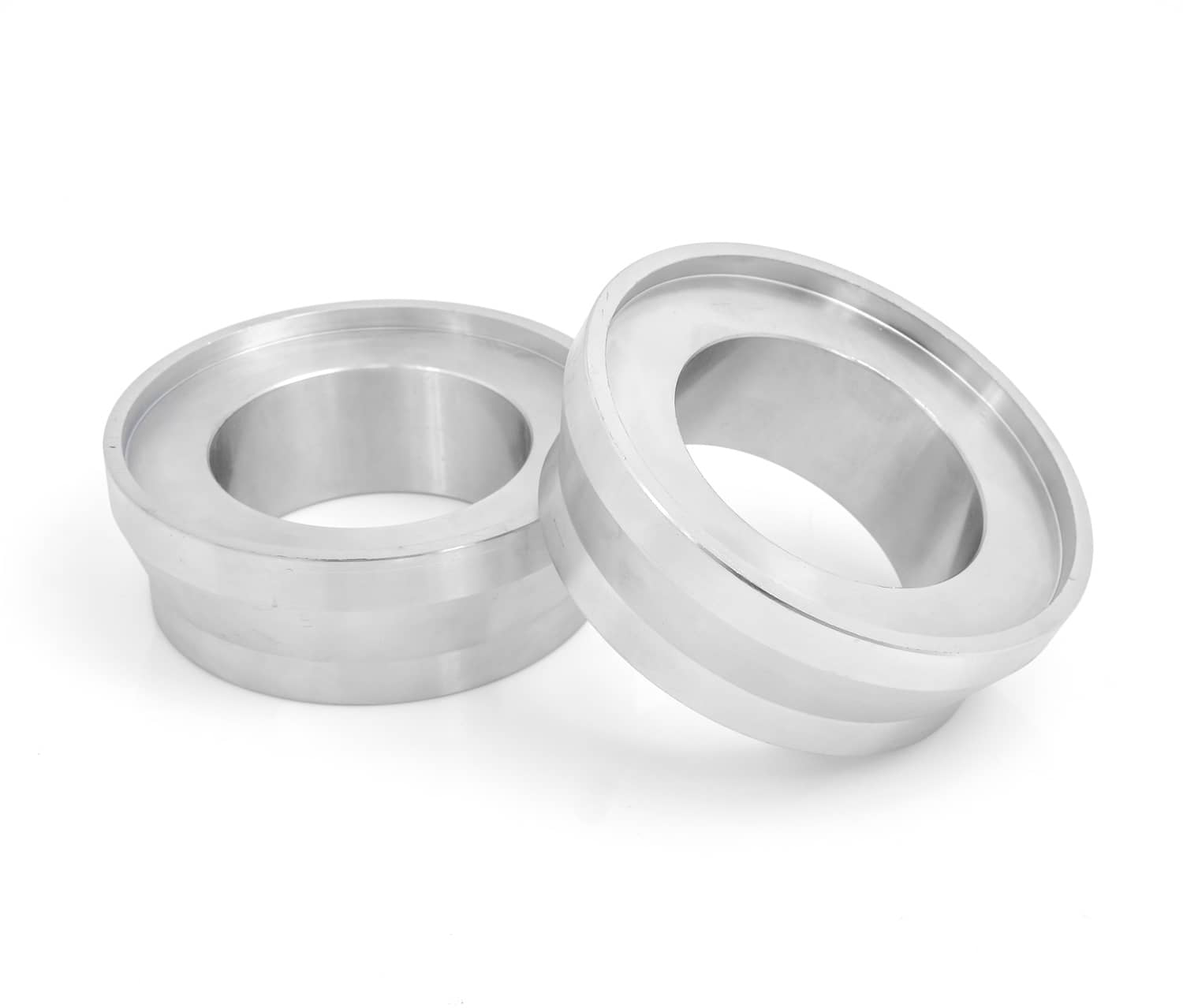

• Kit Contents: Pre-load spring spacers and hardware.
