2019-2025 Ram HD 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1699FS)

BDS 4" radius arm lift kit for the 2019-2025 Ram 2500 gas, clearing up to 35" tires. The front uses gas-specific progressive-rate Pro-Ride coil springs, high-strength tubular replacement radius arms that mount in the factory location and offer caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. A t-case indexing ring and new transmission crossmember let you keep the factory front driveshaft. The rear runs progressive-rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, and sway bar links.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• High strength progressive rate coil springs
• Track bar relocation brackets re-position the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• HD transmission crossmember and t-case indexing ring allow use of factory driveshafts
• FOX 2.0 Performance Series IFP monotube shocks
• 2" Impact extruded aluminum body with CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish

Notes

• Trimming may be required.
• Recommended tire/wheel combinations: 35x12.5 with 17x9 and 4.5" backspacing; 37x12.5 with 18x9 and 5.625" backspacing; 37x12.5 with 20x9 and 5.625" backspacing.

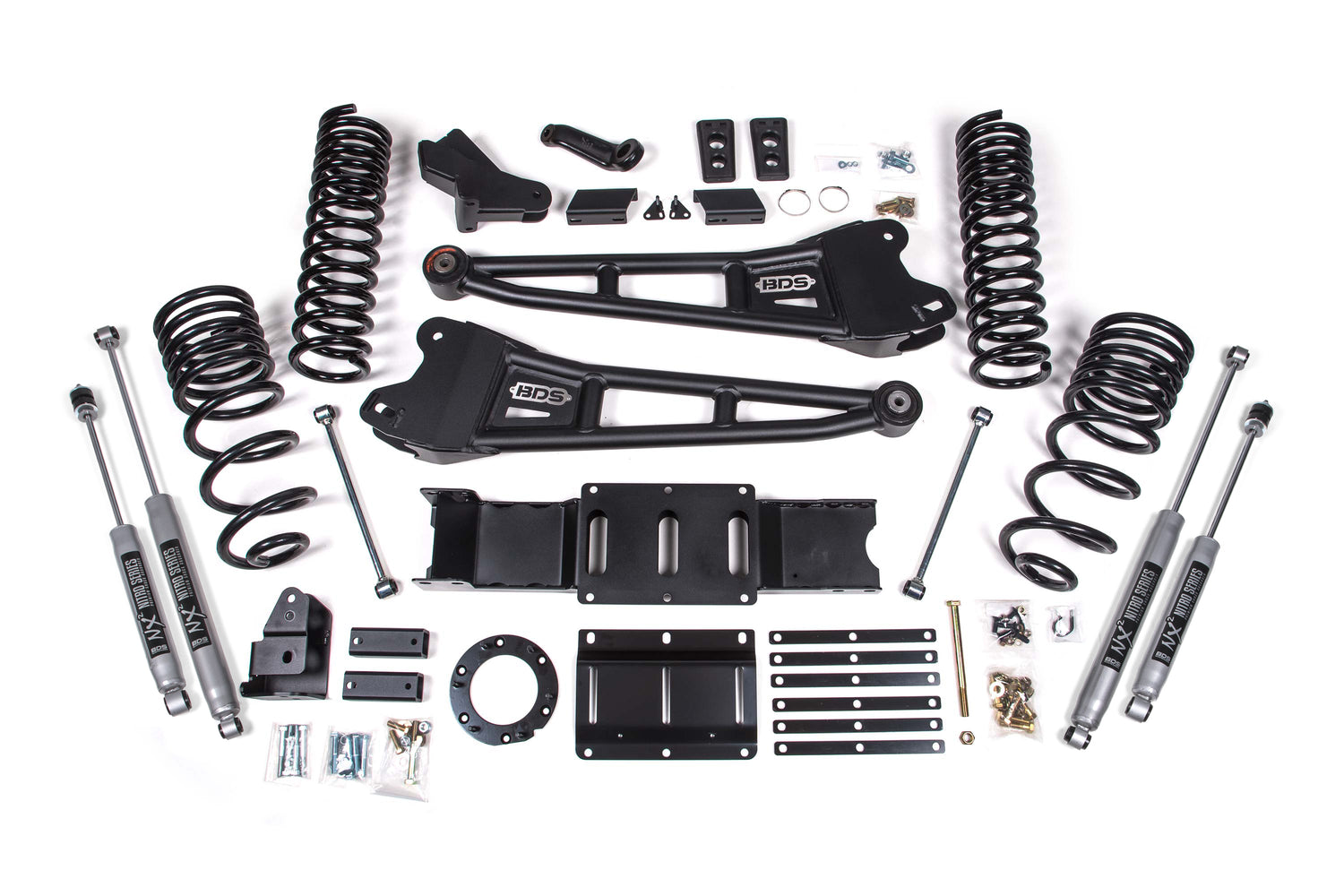

Includes

• BDS012269, 2019-2024 Ram 2500 2.5 inch Rear Coil Box Kit (UPC 658848612185)
• BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit (UPC 658848612420)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
