2019-2025 Ram 2500 3" Lift Pathfinder System (HEMI) (CS-D3-PF-CS-19-H)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$8,111.73 CAD
R1 Or R2 Coils
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Customize your Pathfinder System. Each selection adds as a separate item in your cart - you can adjust quantities or remove individual addons before checkout.

Sway Bars

Required

This System has been optimized for use with the Torsion Sway Bar; this sway bar upgrade is a HUGE ride quality upgrade. Maintaining the factory sway bar through use of the Sway Bar Drops or Extended Link Kit is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Rear Track Bar

Required

The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. We offer two options, a drop bracket to minimize the rear yaw as much as is possible with the short factory track bar, or the Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High Mount Steering Stabilizer

Optional

Bolt-in stabilizer adjustable from 70-200 psi. Run neutral at 70 psi or up to 200 psi to counter right-hand tire pull common with mud terrains. Combine with the Low Mount for a dual opposing stabilizer setup.

Fabricated Radius Arms

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Front Diff Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

Do your ball joints once, grease every oil change and forget they exist
Part Specs
Warranty

Purpose-built for Ram 2500 HEMI owners, the Carli Pathfinder System delivers exceptional on-road comfort with real off-road capability. Custom-tuned 2.5" King Remote Reservoir shocks and Carli fabricated radius arms transform your gas-powered Ram into a seriously capable machine while maintaining smooth daily driving manners.

Features
  • 3.25" of front lift with proper geometry correction
  • 50% more suspension travel than factory
  • Dramatically improved ride quality on and off road
  • Corrected steering geometry with adjustable track bar
  • Radius arm drops to recenter caster
  • Bump stop drops for proper shock cycling
  • Direct bolt-on installation - no cutting or welding required
  • Fully rebuildable shocks for long-term serviceability

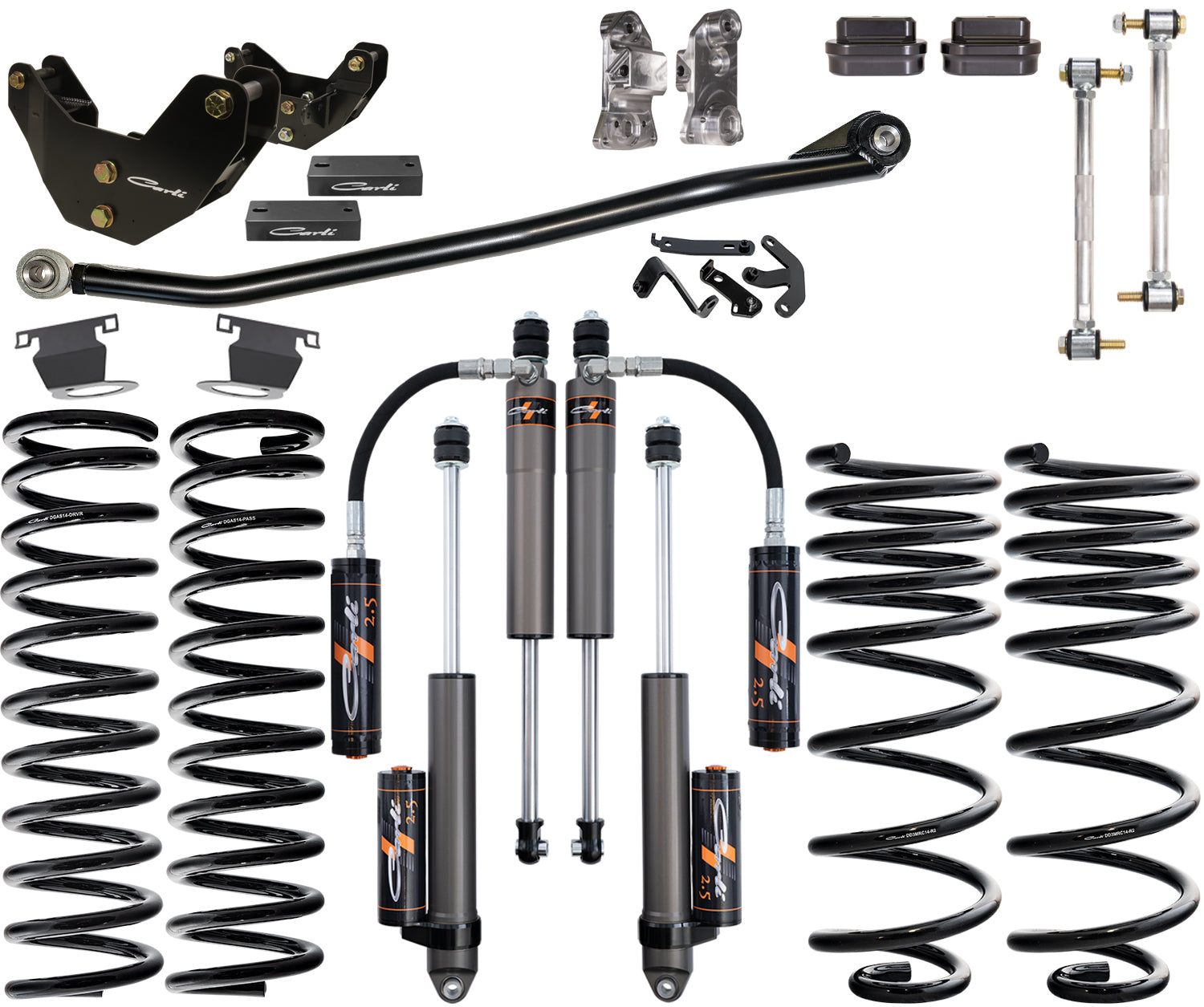

Includes
  • Carli-Spec 2.5" King Remote Reservoir Front & Rear Shocks
  • 3" Front Lift Coil Springs
  • Rear Multi-Rate Coil Springs
  • Carli Adjustable Track Bar
  • Carli Fabricated Radius Arms
  • Front Bump Stop Drops
  • Rear Sway Bar End Links

Warranty
Limited 1 (One) Year Warranty
