2019-2025 Ram 3500 Diesel 2.5" Lift Pathfinder Leveling System (CS-DLVL-PF-19-D-3500)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$5,255.07 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Build your Pathfinder. The base kit includes leveling coils, 2.5" remote-reservoir shock package, adjustable track bar, and 1" billet block & U-bolts. Pick from the optional geometry, steering, and protection upgrades below.

Torsion Sway Bar

Optional

The 2.5" leveling system does not require sway bar geometry correction, but the Torsion Sway Bar is a major ride-quality upgrade. It lets the front suspension move freely without giving up control. Keep the factory bar only if you need its stiff rate (snow plow, in-bed camper, constant max-payload hauling).

Radius Arm Drop Bracket

Optional

The 2.5" Carli system does not require these. Maxing the caster correction with the cam-bolts will reach the Ram alignment spec, but may produce a slight coil bow. Add these brackets to keep the cam-bolts mid-range and guarantee a straight, non-bowing coil.

Leaf Spring Shackle

Optional

Much of the jarring 3500 rear ride comes from the factory vulcanized bushings in the leaf pack and shackle. The Carli shackle uses 1/4" American cold-rolled steel, a mid-length gusset to eliminate deflection, and serviceable bushings for a far better ride than the factory bind.

Low Mount Steering Stabilizer

Optional

14-25 RAM 2500/3500 4X4 Low Mount Steering Stabilizer - Stainless CS-DLMSS-14

High Mount Steering Stabilizer

Optional

Bolt-in stabilizer adjustable from 70-200 psi. Run neutral at 70 psi or up to 200 psi to counter right-hand tire pull common with mud terrains. Combine with the Low Mount for a dual opposing stabilizer setup.

Fabricated Radius Arms

Optional

Icing on the cake. Massive strength upgrade over the factory arms with internal X-bracing, 1/4" boxed steel construction, 17-4 stainless serviceable spherical joints, and 10" quad-wrap limit straps that protect your front shocks.

Front Diff Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

Do your ball joints once, grease every oil change and forget they exist
Part Specs

The Pathfinder is built for Ram owners who want serious on-road comfort with light-to-moderate off-road capability. Nestled between the Backcountry and Pintop tiers, it absorbs small and medium imperfections without an aggressive driving style, and comes alive when you head off the pavement.

Carli-SPEC 2.5" aluminum-bodied shocks finished with a hard-anodized coating lead the kit. 55% more piston surface area than a 2.0" shock means better heat dissipation and longer rebuild intervals. The adjustable track bar recenters the axle at the taller ride height, and the billet reservoir mounts hold the 10" remote reservoirs on display over the front tire.

Features
  • 2.5" front lift with 1" rear billet block
  • Carli-SPEC 2.5" aluminum-bodied remote-reservoir shocks (hard-anodized)
  • Linear-rate front coils tuned for the Ram 3500
  • Adjustable track bar with stabilizer bracket
  • Reservoir mounts orient the reservoirs above the front tire
  • Tight, responsive on-road handling with mild-to-moderate off-road capability
  • Not upgradeable to other Carli systems
Includes

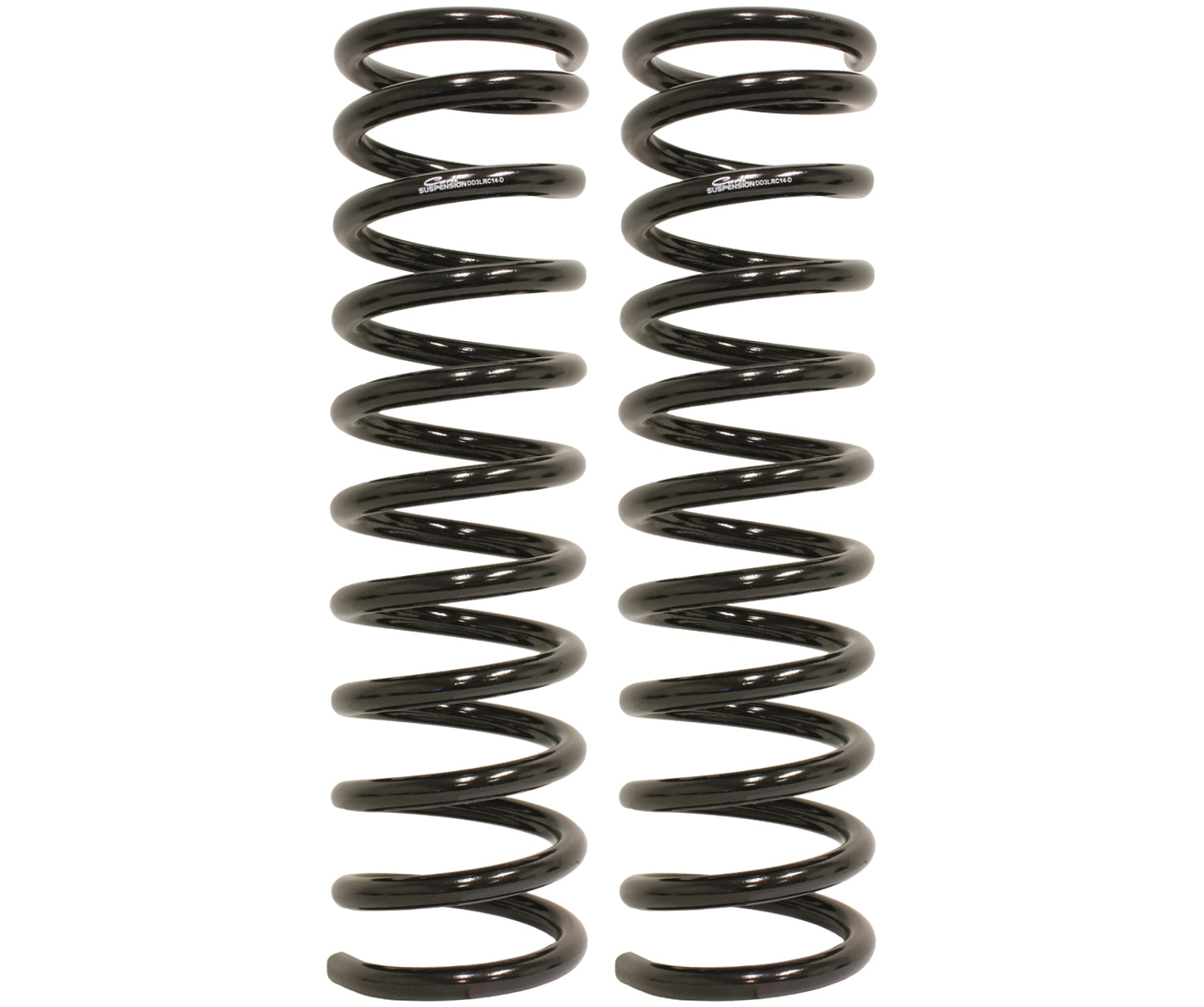

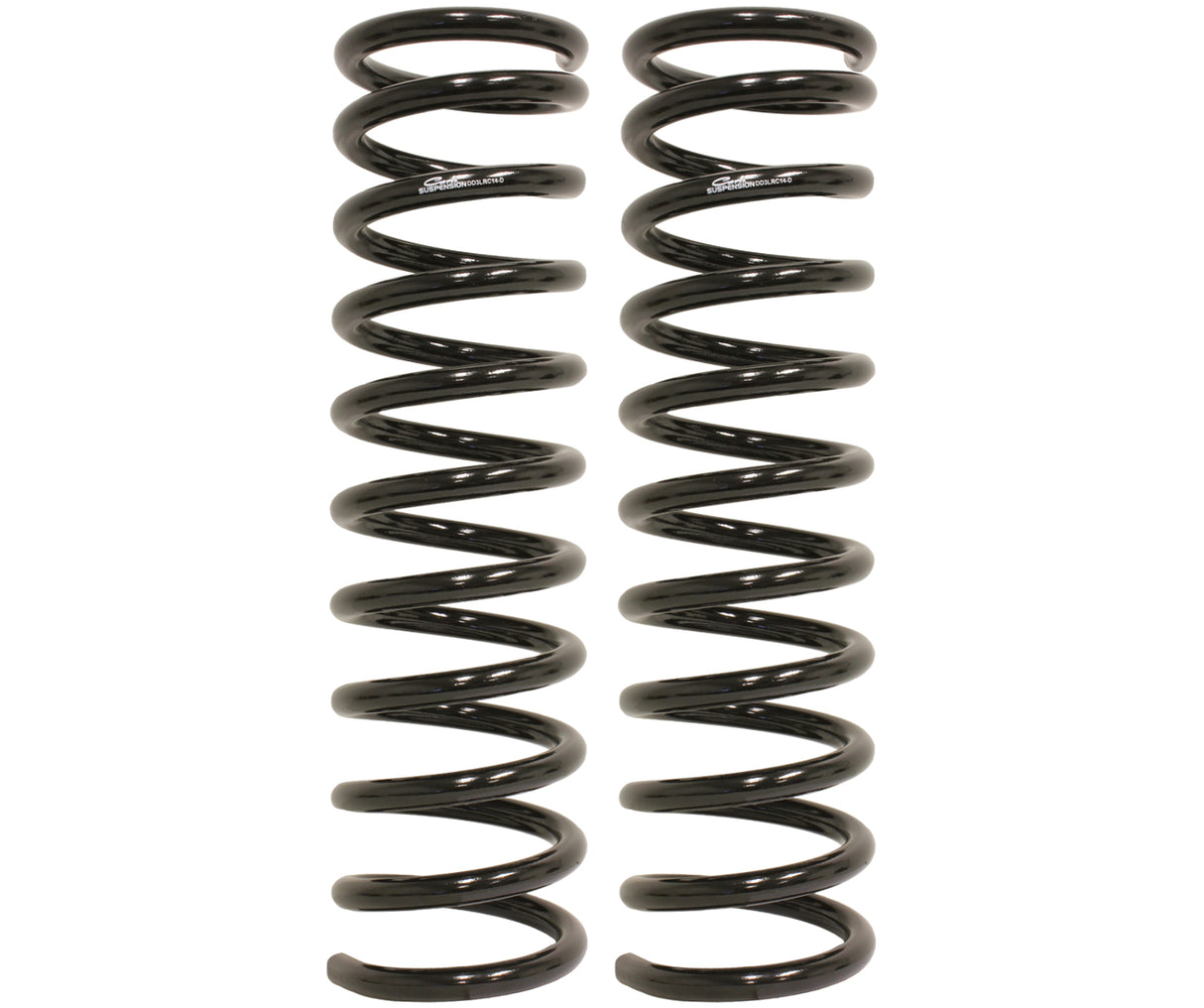

  • CS-DLRC-14-LVL-D Leveling Front Coils

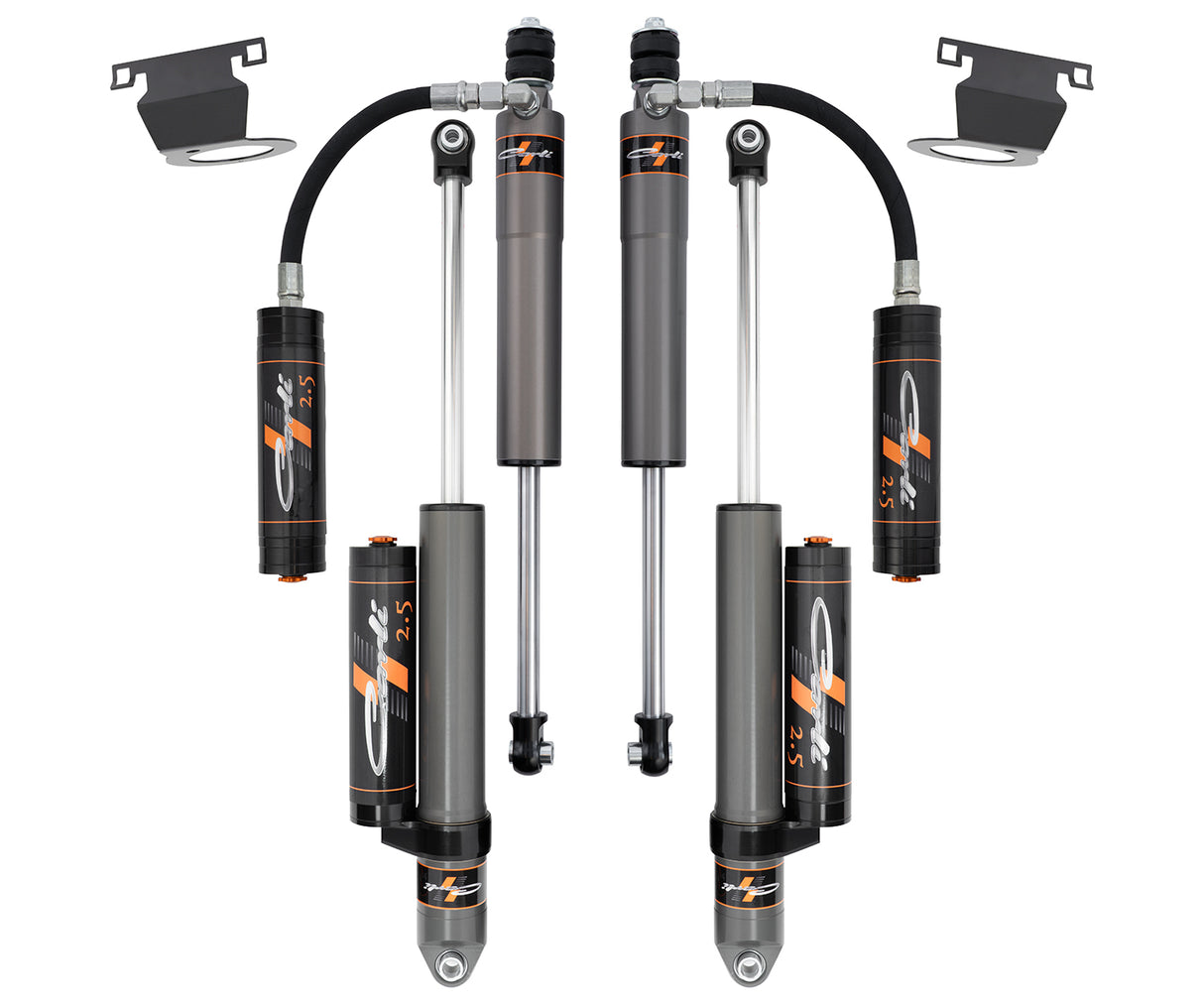

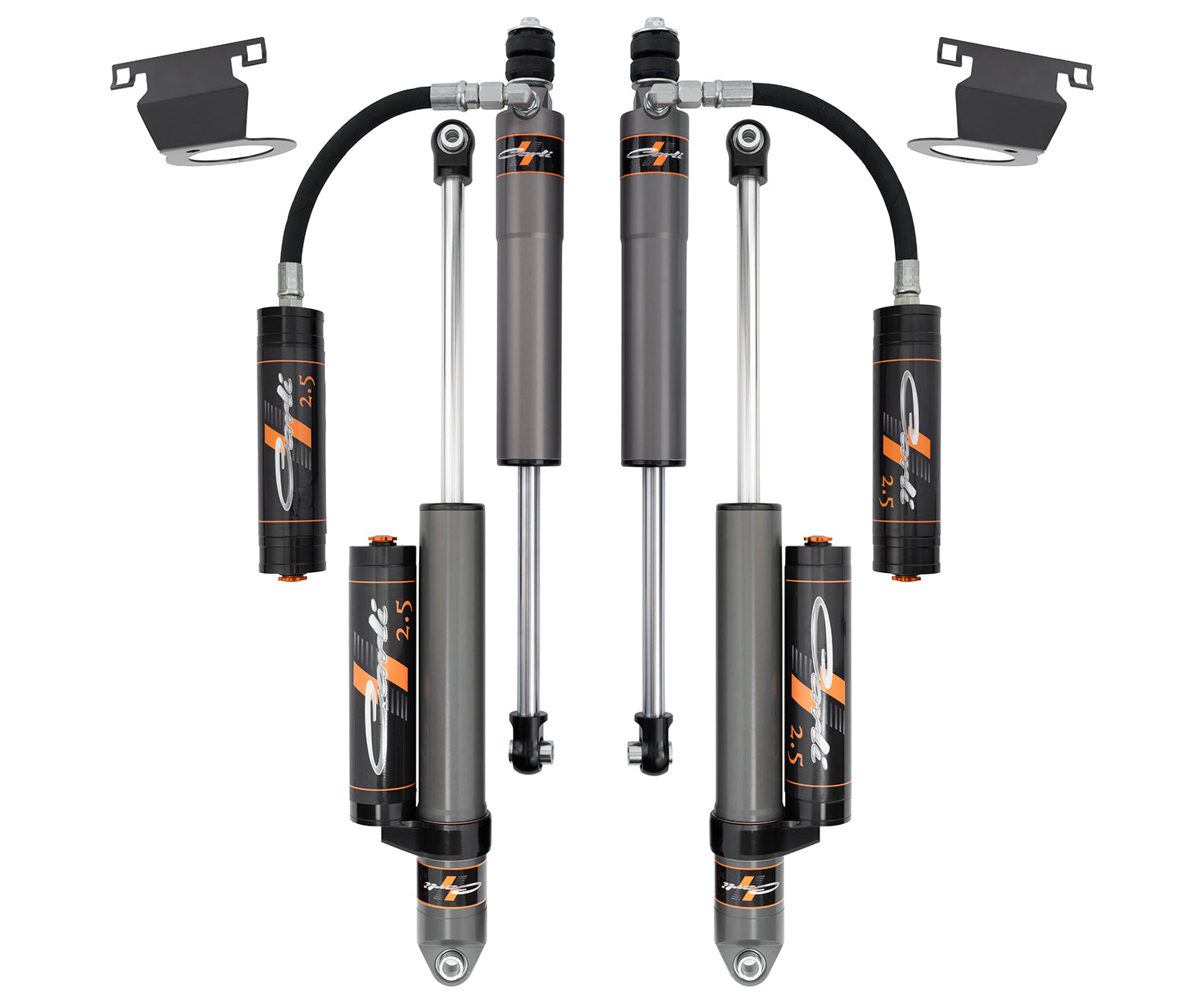

  • CS-DLVLSPKG-CS25RR-B Carli-SPEC 2.5" Remote Reservoir Shock Package with Reservoir Mounts

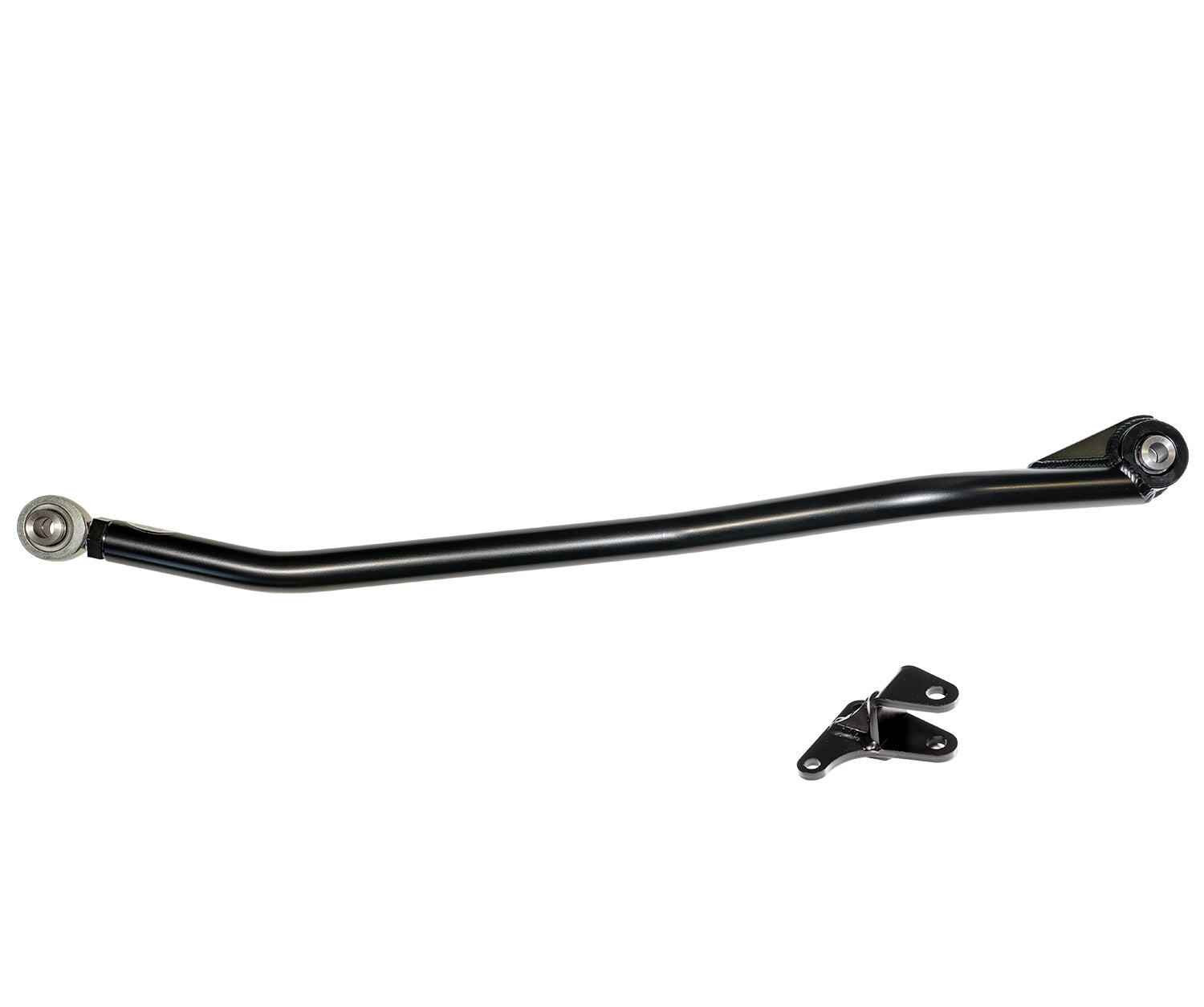

  • CS-DATB-1419 Adjustable Track Bar with Stabilizer Bracket

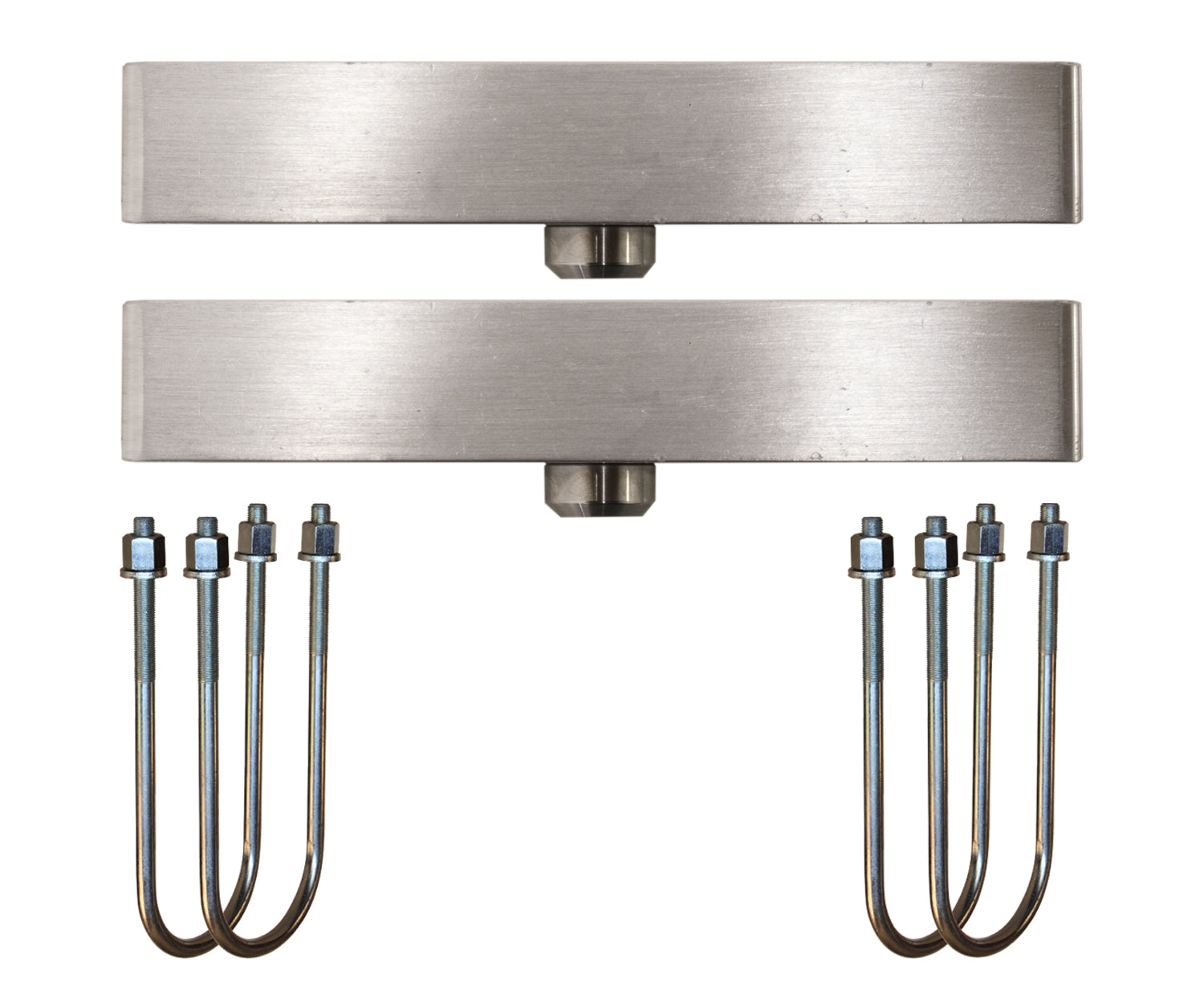

  • CS-DRBKIT-1-4.25 1" Billet Block & U-Bolts
Notes
  • Fits 2019+ Ram 3500 4x4 SRW only. For DRW use CS-DLVL-PF-13-D with no block.
  • Not compatible with factory rear auto-leveling air suspension.
  • Recommended tire: 35" on a 9" wide wheel with 5.5-6" backspace; 18" diameter best for ride quality.
  • Eccentric caster correction may produce a slight coil bow. Add Radius Arm Drop Brackets to keep cam-bolts mid-range.

Vehicle Fitment

Part Specifications

  • Part No.
    CS-DLVL-PF-19-D-3500
  • Cross Reference #
    883584173991
  • Vendor
    Carli Suspension
  • Shipping Weight
    145.0 lb
