2019-2025 Ram HD 1.5" Coil Spring Front Leveling Kit (46-19120)

The ReadyLIFT 1.5-inch Coil Spring Leveling Kit is the first-ever Front Coil Spring Leveling Kit solution offered by the company for Ram HD trucks. This premium kit is specifically engineered to fit 4WD diesel trucks, providing a 1.5-inch lift using new front coil springs. This is the ideal solution for customers seeking a level stance and a reduced rake when lightly loaded, while retaining the factory shock performance, ride, and handling. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance.

Features

• Provides 1.5 inches of front leveling lift via heavy-duty coil springs.
• Fully bolt-on kit utilizing 10.9 Grade Hardware.
• Comes with shock extensions, allowing users to retain factory shocks.
• Maintains factory suspension geometry and articulation.

Notes

• Ram 2500 Air Suspension trucks are leveled from the factory and installing this kit will result in overlift in the front of the truck.
• If the front axle is shifted off center with the track bar relocation bracket, some trucks may require retaining use of the factory track bar bracket for optimal suspension geometry.
• The kit is designed for customers seeking to retain the factory shock performance, ride, and handling.
• New body only

Compatibility Notes

• Engineered exclusively for Ram 2500/3500 HD 4WD diesel applications.
• Not compatible with Power Wagon or Snow Prep/Ambulance Package.
• If installed on a gas truck, the front will be nose high and have a stiff ride.
• This kit should fit Dually (DRW) trucks.
• Recalibration of the ADAS system (forward collision braking, etc.) will be needed after install.

Tire Fitment

• Maximum tire diameter is 35 inches.
• Recommended fitment is 35x12.50 for no rub on a 9-inch wide wheel with +12 to 0 offset.

Specs

• Front Lift: 1.5 inches (maximum).
• Maximum Tire Diameter: 35 inches.

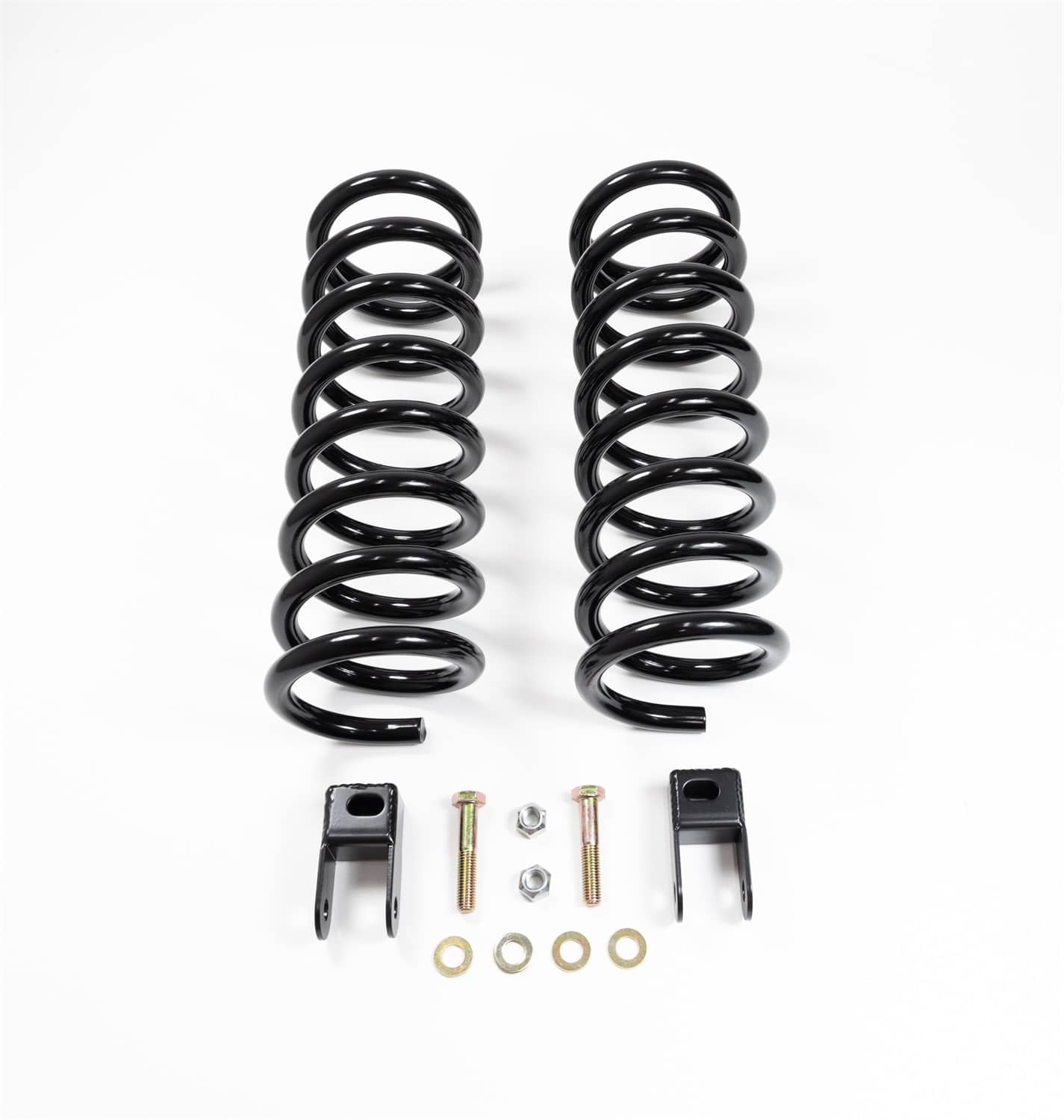

• Kit Contents: Spring leveling components and 10.9 Grade Hardware.
