2019-2025 Ram HD 4WD 1.75" Front Leveling Kit (66-19180)

The ReadyLIFT 1.75-inch Leveling Kit uses heavy-duty, laser-cut, powder-coated steel front top mount coil spring spacers to provide 1.75 inches of front leveling lift. This kit is designed to level the front stance of heavy-duty Ram trucks, allowing for larger wheel and tire combinations. New kits include a retention bolt to lock the spacer to the frame and shock extensions to optimize shock length after the leveling process.

Features

• Provides 1.75 inches of front leveling lift.
• Includes heavy-duty, laser-cut, powder-coated steel front top mount coil spring spacers.
• New kits include a retention bolt to lock the spacer to the frame.
• New kits include shock extensions to optimize shock length.

Notes

• Ram trucks equipped with factory Air Suspension are typically already level, and installing this kit will result in overlift in the front of the truck.
• Not compatible with the Power Wagon model or the Snow Prep/Ambulance Package.

Tire Fitment

• Maximum tire diameter is 35 inches.
• Recommended fitment is 35x12.50 for no rub on a 9-inch wide wheel with a +12 to 0 offset.
• Recommended sizes include 18-inch (315/70R18), 20-inch (295/65R20 or 325/60R20), and 22-inch (35X12.5R22).

Specs

• Front Lift: 1.75 inches (maximum)
• Maximum Tire Diameter: 35 inches
• Spacer Material: Heavy-duty, laser-cut, powder-coated steel

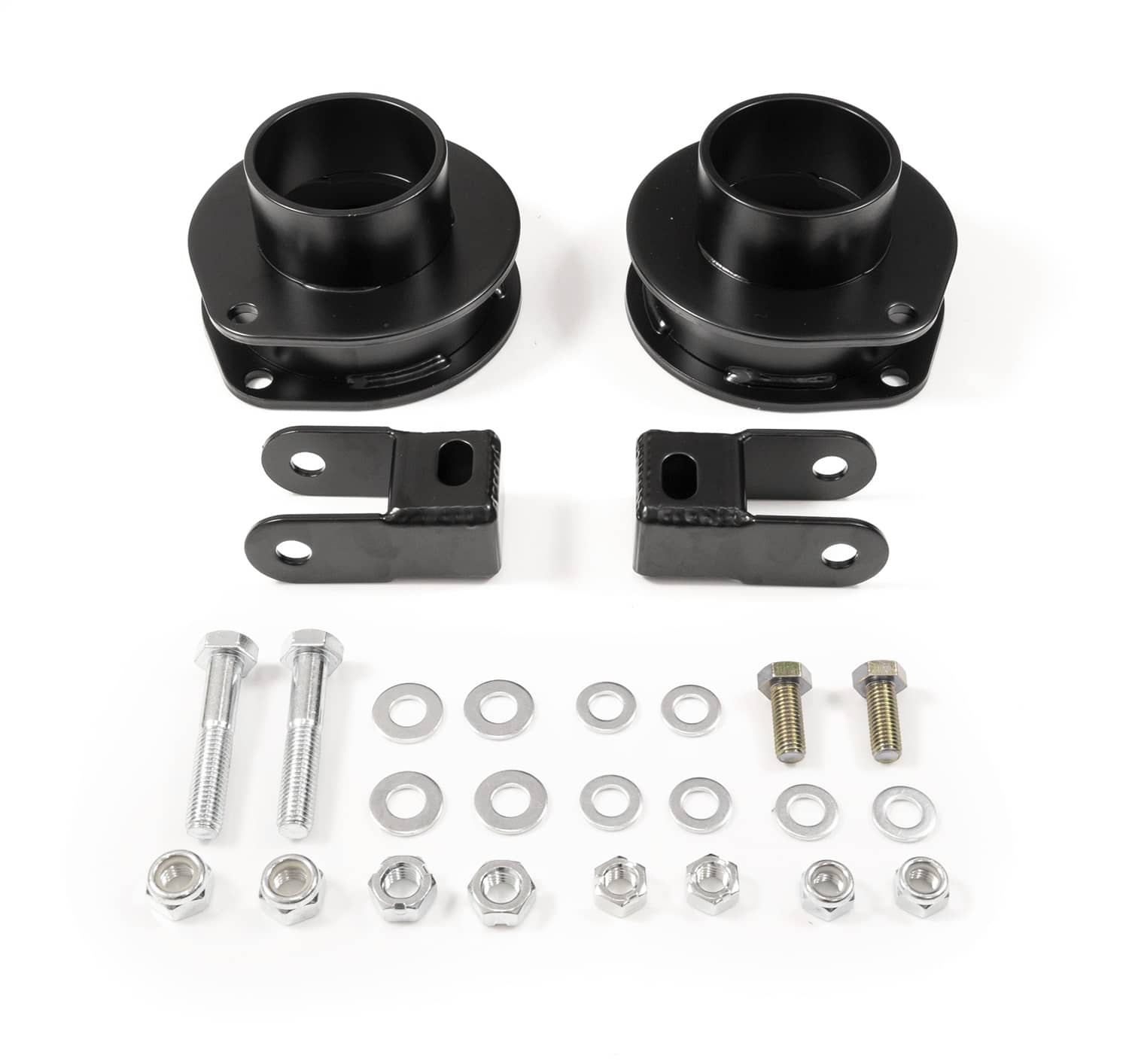

• Kit Contents: (2) Heavy-duty plate steel front coil spring spacers, retention bolt, and shock extensions.

Compatibility Notes

• This Kit is for the new body Ram Trucks only
