2019-2025 Ram 1500 3" Lift Kit with FOX 2.0 Performance Shocks (BDS1709FPE)

BDS 3" lift kit for the 2019-2025 Ram 1500 4WD, clearing up to 33" tires. Up front it runs FOX 2.5 Performance Elite remote-reservoir coil-over shocks and heavy duty tubular upper control arms (1.5" OD x .120 wall) with an indexed ball joint cup for added down travel and camber adjustment. The rear levels the stance with 1.5" dual-rate coil springs for ride quality and extra load capacity, paired with rear FOX 2.0 IFP shocks. The FOX 2.5 coil-overs use a remote reservoir for cooling and a Dual Speed Compression Adjust adjuster offering 10 low-speed and 12 high-speed settings.

Features

• FOX 2.5 Performance Elite remote-reservoir coil-overs
• Dual Speed Compression Adjust adjuster (10 low-speed, 12 high-speed levels)
• Performance tubular UCAs increase strength and allow more suspension travel
• FOX 2.0 Performance Series IFP rear shocks included
• 2" Impact extruded aluminum body with CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish
• 100% bolt-on installation
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5

Notes

• Will not work with stock rims running a 12.50" wide tire; the tire will rub the UCA at full steering lock. If reinstalling the stock rim, use stock-size tires only.
• The ball joint used is 500-1134 (use for replacement). It is directional and must be installed with the 'dot' facing inward or outward on the vehicle, otherwise damage may occur.
• Vehicles with the Offroad or Rebel Package will not achieve the full 3" of lift; net ride height change will be around 2" above stock.

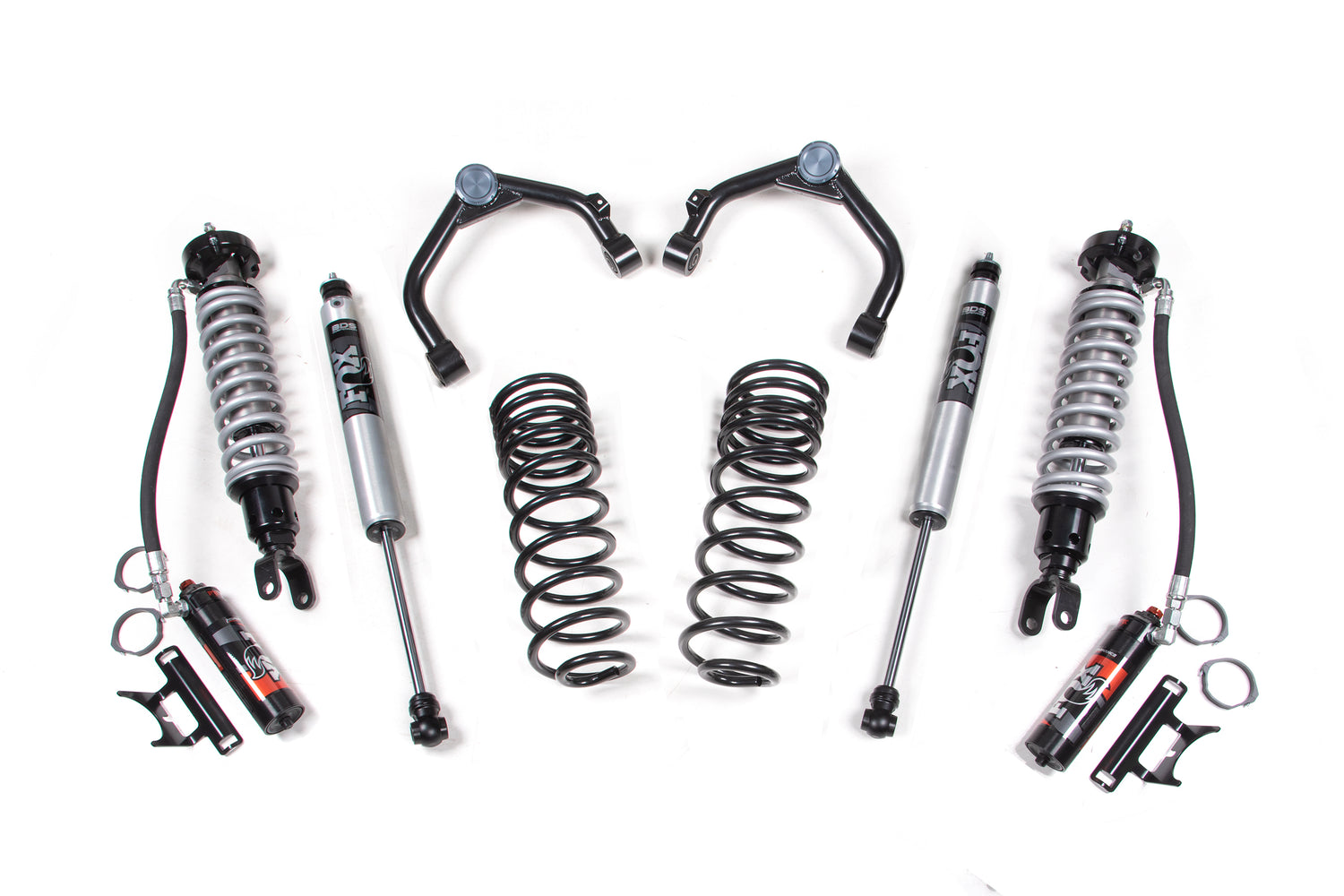

Includes

• BDS012315, 2019-2023 Ram 1500 3in Performance Lift Box Kit (UPC 711745611443)
• FOX88306166, Kit: 19-ON Ram 1500 w/ UCA, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 2-3 inch Lift, Dual Speed Compression Adjust
• FOX98224806, Fox 2.0 Shock 26.74 x 16.65 S50/EB1
