2019-2026 Sprinter 2500 2WD Suspension Lift Kit (7176-LM-RS)

Take your 2WD Sprinter to the next level with the Van Compass Stage 5 system, the ultimate performance upgrade for clearance and capability. The Striker 2 in lift raises ride height while preserving OEM suspension geometry, making room for larger tires and a more aggressive stance with zero handling or comfort penalty.

Features

• 2 in lift for larger tires and improved ground clearance
• Increased approach, breakover, and departure angles
• VC Inverted 3.3 adjustable Rally Struts up front
• VC-tuned Falcon 3.3 adjustable rear shocks with 10 firmness settings
• Reduced cornering lean and wind sway with better bump control
• 100% bolt-on installation

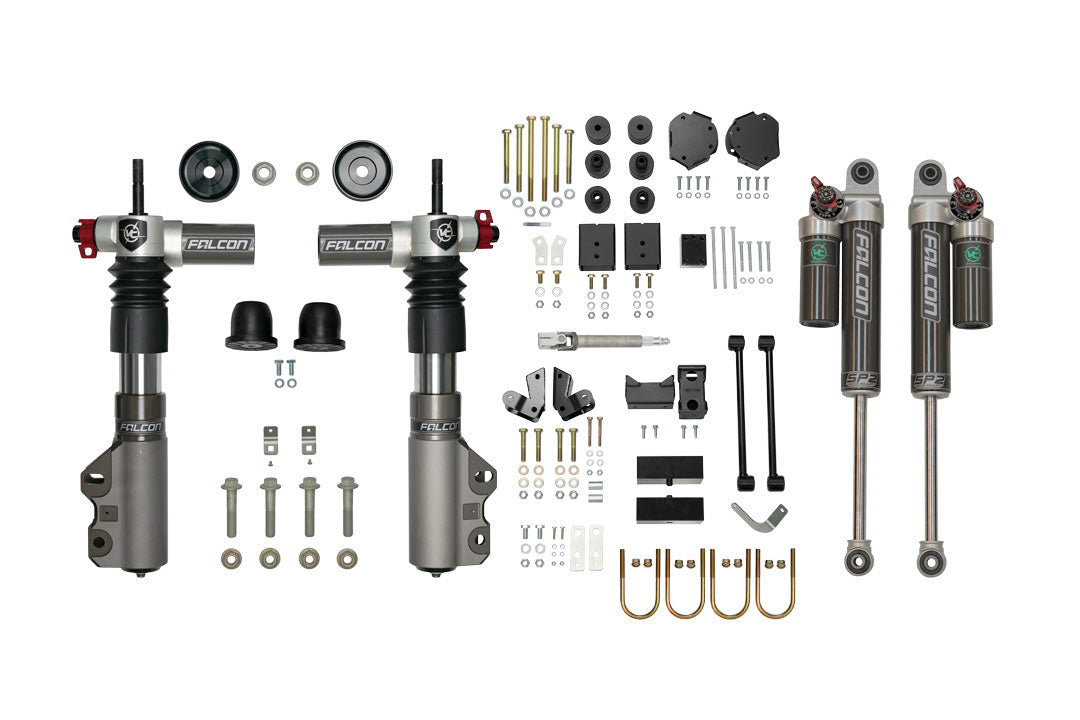

Included Components

• Striker 2" Lift Kit
• 3.3 Adjustable Inverted Rally Struts
• Front Bump Buddies Jounce Bumpers (pair)
• Falcon 3.3 Fast Adjust rear shocks

Important Notes

• Up to 265/70R17 Tire
• Raises Front 2"
• Raises Rear 2"

Installation Instructions

• VS30 2500 and 3500 Front Lift Installation Instructions
• VS30 2500 Rear Lift Installation Instructions
• 2007+ Sprinter Inverted Rally Strut Installation Instructions
• Sprinter 2wd Front Bump Buddies installation instructions
• Sprinter Falcon 3.3 rear shock installation instructions
• Falcon 3.3 Shock Settings Guide

Labor Time

Recommended shop labor time: 16 hours.
