2019-2026 Sprinter 4x4 Skid Plate (4094-SB)

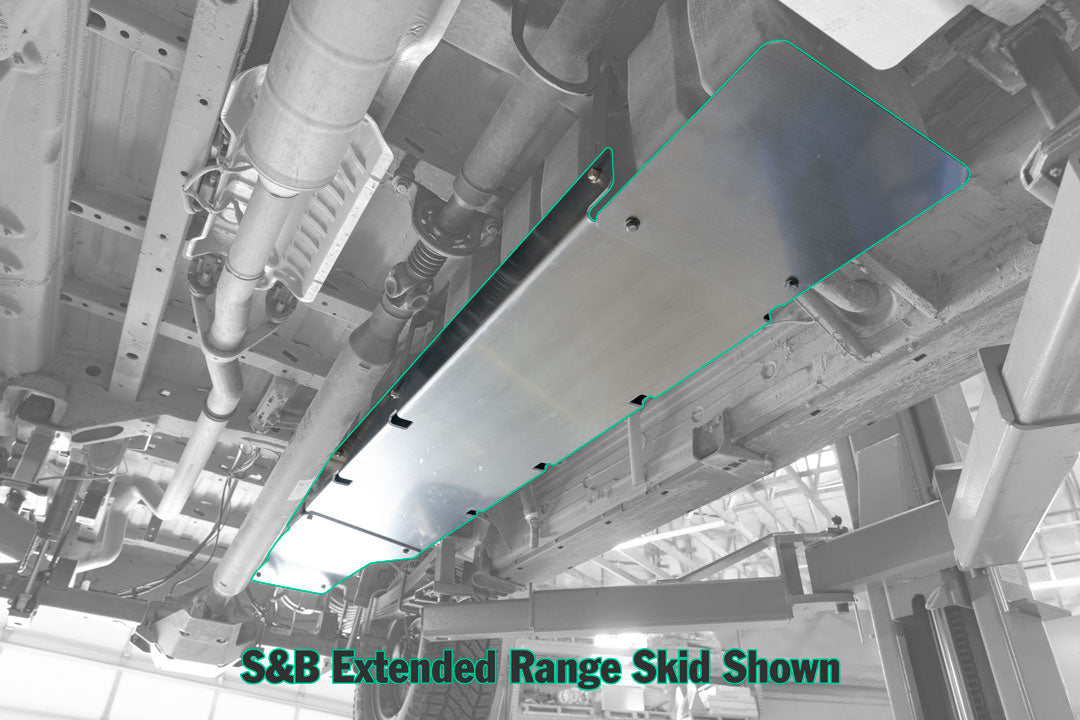

Explore with confidence in your 4x4 or AWD Sprinter and shield the vulnerable plastic fuel tank from whatever the trail throws at it. The Van Compass Fuel Tank skid plate gives you a strong, smooth surface to slide over or land on, built from 1/4" thick 5052 aluminum to absorb the hardest hits. This version is purpose-built for the S&B extended-range tank and adds a front plate that also protects the fuel filter assembly on 2023+ AWD vans.

Features

• Protects the exposed plastic fuel tank from trail obstacles
• Made of 1/4" thick 5052 aluminum for maximum impact resistance
• 100% bolt-on with all hardware and 1/8" high-strength steel brackets included
• Designed to mate with the S&B extended-range, high-capacity fuel tank
• Added front plate also protects the fuel filter assembly on 2023+ AWD vans
• Pairs with the engine and transmission skid plates for full underbody protection

Included Components

• Main Fuel Tank Skid Plate - 1/4" 5052 Aluminum
• Front Extension Piece - Covers AWD Fuel filter, or front of S&B extended range tank.
• Skid Plate Mounting Brackets - 1/8" High strength steel brackets powder coated black for corrosion resistance
• S&B Specific part number includes rear extension piece, and 2 additional mounting brackets.
• All necessary hardware

Important Notes

• Requires S&B Extended Range Fuel Tank
• Does not fit Storyteller MODE

Labor Time

Recommended shop labor time: 1 hour.

Specifications

• Material: Aluminum | Finish: Uncoated
• Color: Silver
• Attachment Type: Bolt On
