2019-2026 Sprinter Fule Tank Skid Plate, OE or S&B 40 Gallon (4094-OEM)

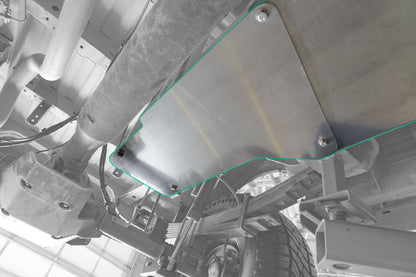

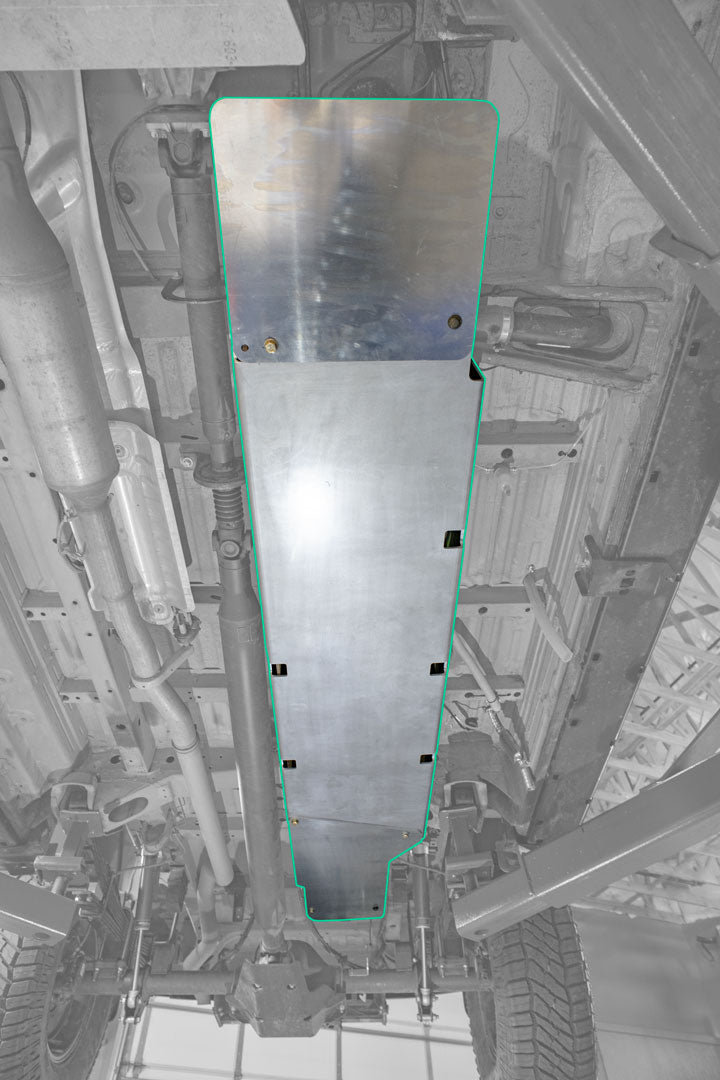

Explore with confidence in your 4x4 or AWD Sprinter and keep that vulnerable plastic fuel tank out of harm's way. The Van Compass Fuel Tank skid plate creates a strong, smooth surface to slide over or land on, built from 1/4" thick 5052 aluminum to take the hardest hits. This version fits the OE tank or the S&B 40-gallon tank, and the two-piece design also protects the fuel filter assembly on 2023+ AWD vans.

Features

• Protects the exposed plastic fuel tank from trail obstacles
• Made of 1/4" thick 5052 aluminum for maximum impact resistance
• 100% bolt-on with all hardware and 1/8" high-strength steel brackets included
• Two-piece design fits the OE tank and current S&B fuel tank variations

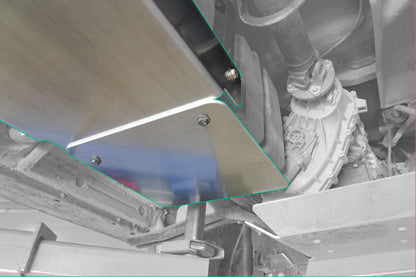

• Added front plate also protects the fuel filter assembly on 2023+ AWD vans
• Pairs with the engine and transmission skid plates for full underbody protection

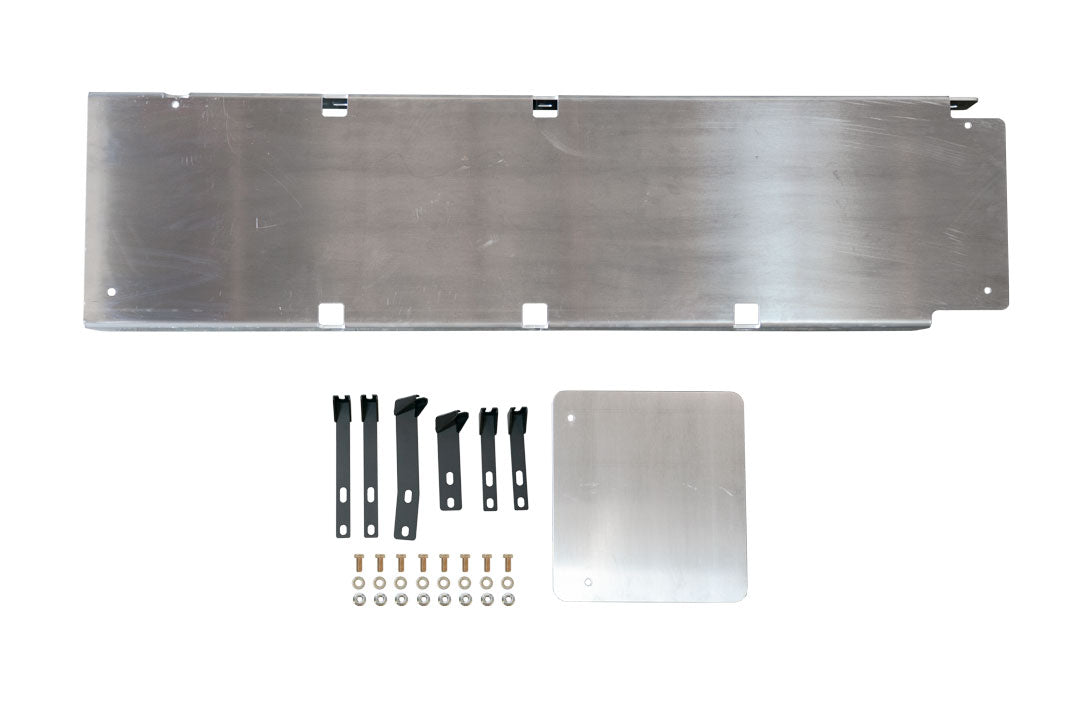

Included Components

• Main Fuel Tank Skid Plate - 1/4" 5052 Aluminum
• Front Extension Piece - Covers AWD Fuel filter, or front of S&B extended range tank.

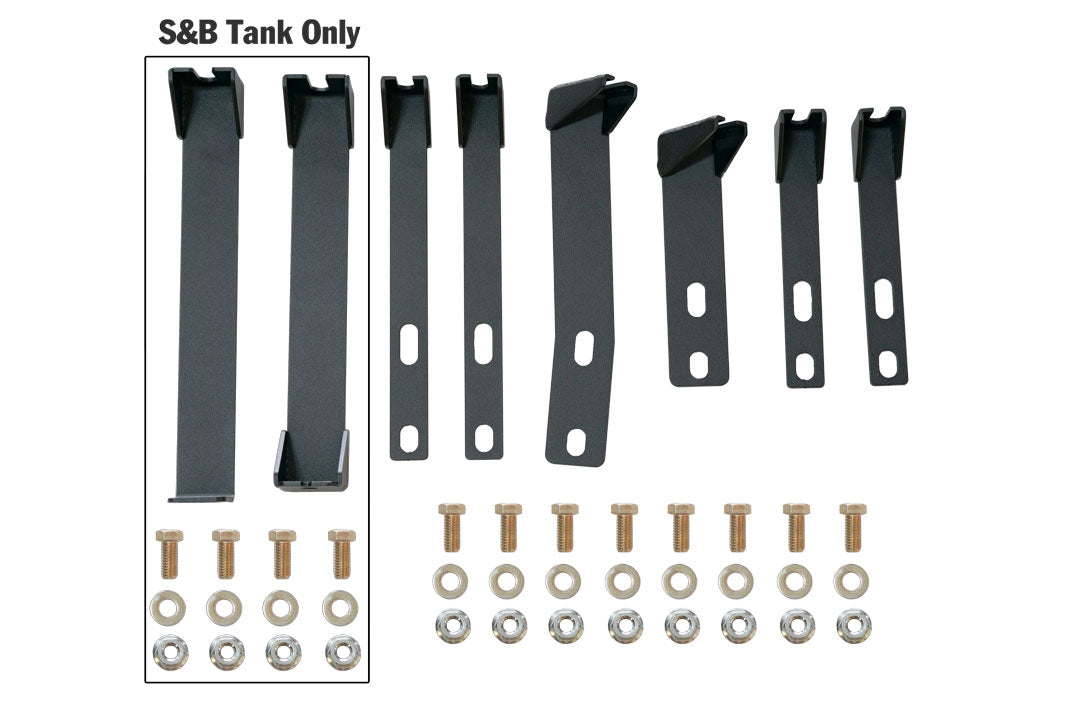

• Skid Plate Mounting Brackets - 1/8" High strength steel brackets powder coated black for corrosion resistance
• S&B Specific part number includes rear extension piece, and 2 additional mounting brackets.
• All necessary hardware

Important Notes

• Does not fit Storyteller MODE

Labor Time

Recommended shop labor time: 1 hour.

Specifications

• Material: Aluminum | Finish: Uncoated
• Color: Silver | Configuration: Two Piece
• Attachment Type: Bolt On
