2020-2022 Superduty 3" Lift Kit with FOX 2.0 Performance Shocks (BDS1989FPE)

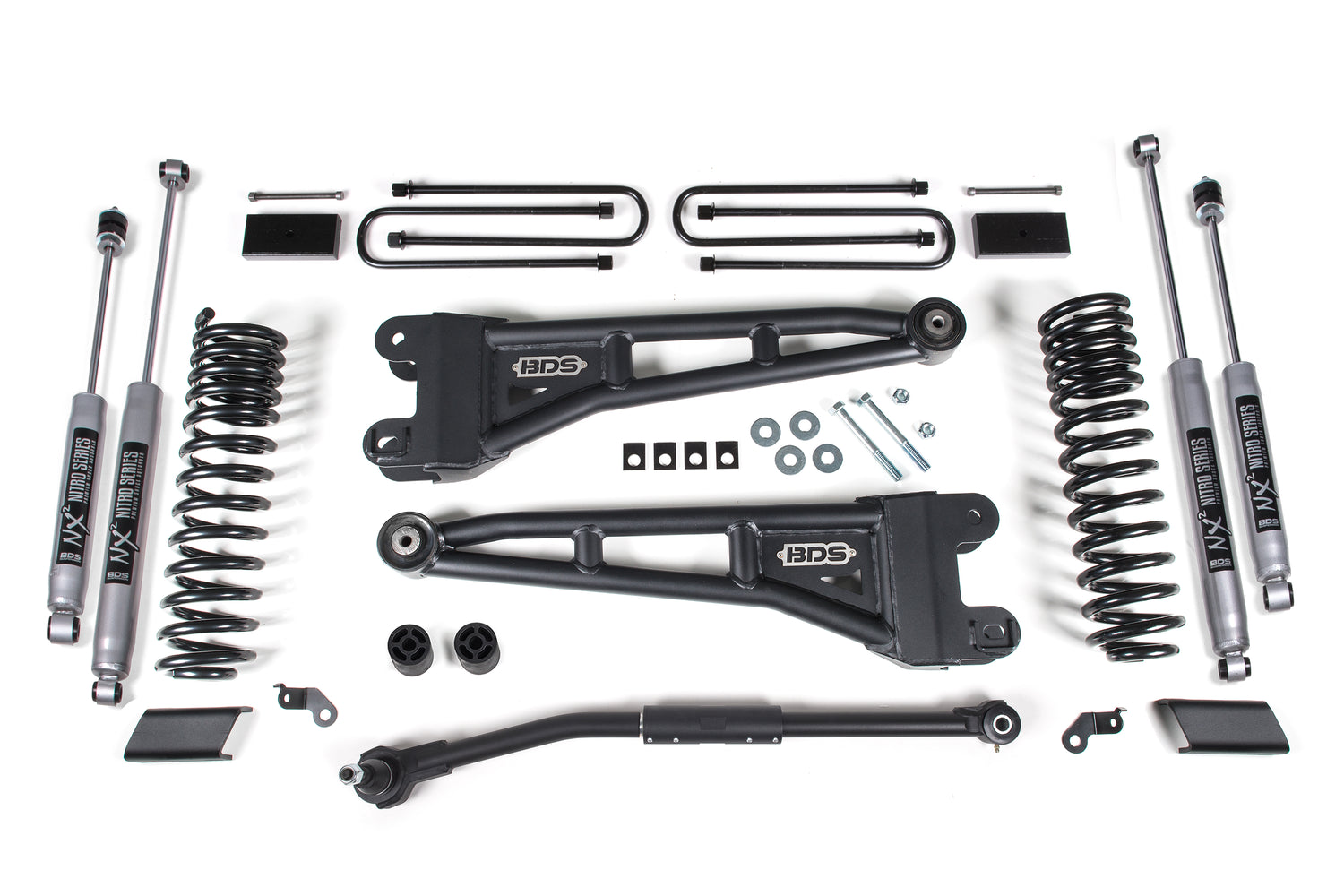

Level out your 2020-2022 Ford Super Duty diesel with this BDS Suspension 3" radius arm lift kit, with clearance for up to 35" tires. Up front it runs diesel-specific Pro-Ride coil springs, heavy-duty tubular radius arms with caster adjustment, a high-strength 1-3/8" solid steel adjustable track bar to recenter the front axle, sway bar relocation, brake line brackets and tuned FOX 2.0 Performance shocks. The rear uses a high-strength fabricated lift block, longer u-bolts and matching shocks.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Adjustable solid steel track bar recenters the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance
• 2.5-inch Impact extruded aluminum shock body
• 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir separates shock oil from the high-pressure nitrogen
• Dual Speed Compression adjuster standard
• Fully serviceable for a lifetime of use
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Designed for diesel models; can be installed on gas trucks but will achieve an additional 1/2 inch front ride height.
• Larger tires on stock wheels are not recommended due to brake line clearance. Use the specs in the tire and wheel fitment section.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Due to taller factory ride height, Tremor models will not net full advertised lift; final ride height matches standard models.
• Trucks with a rear driveline vibration may have Ford Safety Recall 21S31 on the rear axle. BDS recommends having the recall performed before installing the lift.
• Trucks without top-mounted overload springs require (x4) UBT4031, sold separately.

Includes

• BDS013108, 2017-2024 F250/F350 1 inchRear Block Kit (UPC 658848613052)
• BDS013261, 2020-2024 F250/350 2.5 inch Front Box Kit (UPC 658848613236)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• FOX88326096, Kit: 2017-2024 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 0-1.5 inch Lift, Dual Speed Compression Adjust
• FOX88326097, Kit: 2017-2024 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
