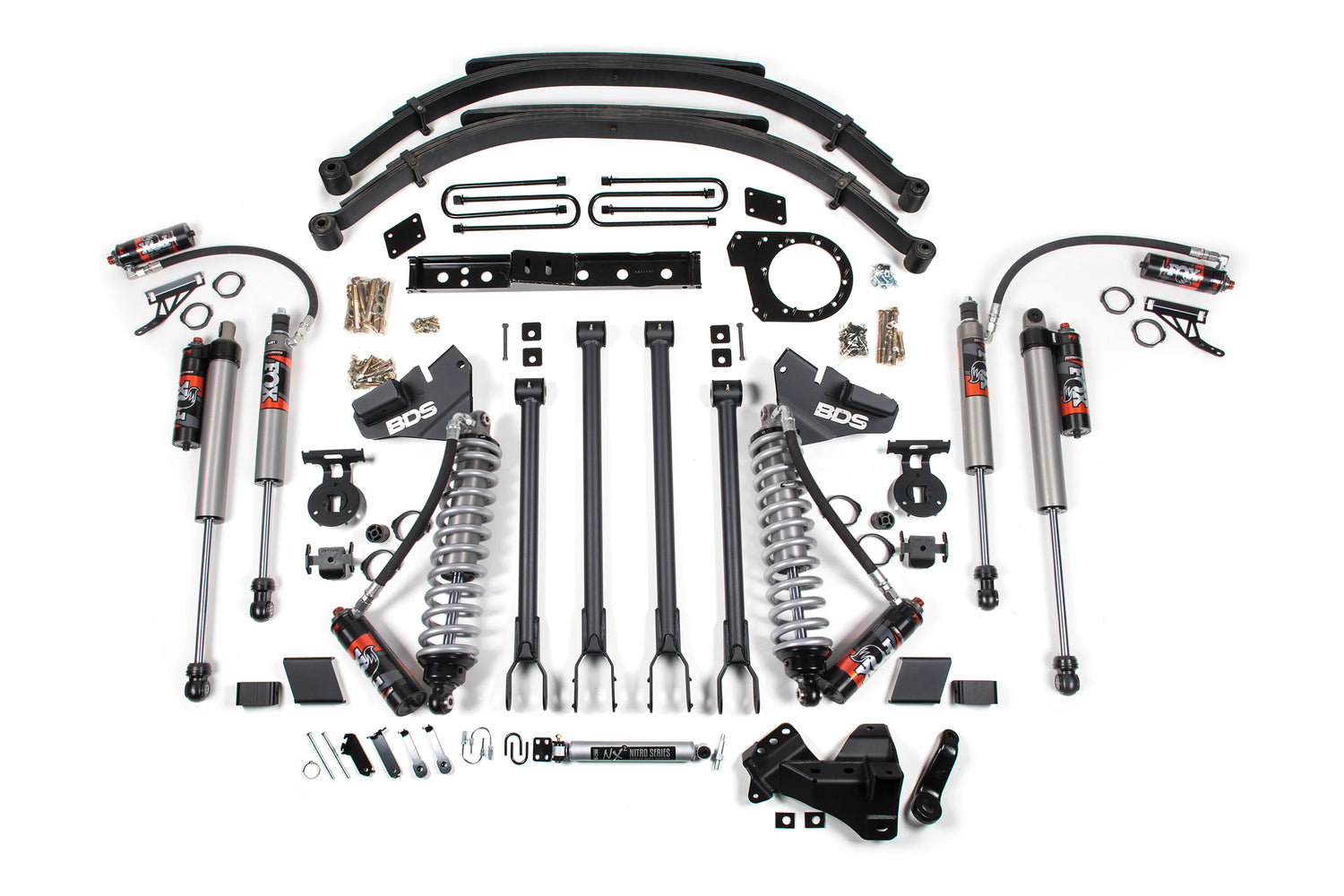

2020-2022 Superduty 4-Link Fox 2.5 PE 5" Lift Kit (BDS1973FPE)

Engineered for Ford F-250/F-350 4WD trucks, this 5-inch 4-link suspension system from BDS transforms your Super Duty's dynamics with a complete geometry overhaul. The integrated FOX 2.5 Performance Elite coil-over shocks deliver responsive damping across varied terrain, while Eibach springs provide consistent load support. The 4-link architecture optimizes suspension kinematics for improved articulation and stability, whether navigating highway miles or challenging off-road conditions. This kit elevates both capability and ride refinement without compromising the truck's daily usability.

Features

• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.

• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.

• Fits SRW models only.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 5"
• Rear Lift Method : Leaf Spring
• Rear Lift Height : 4"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Tire Fitment

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
