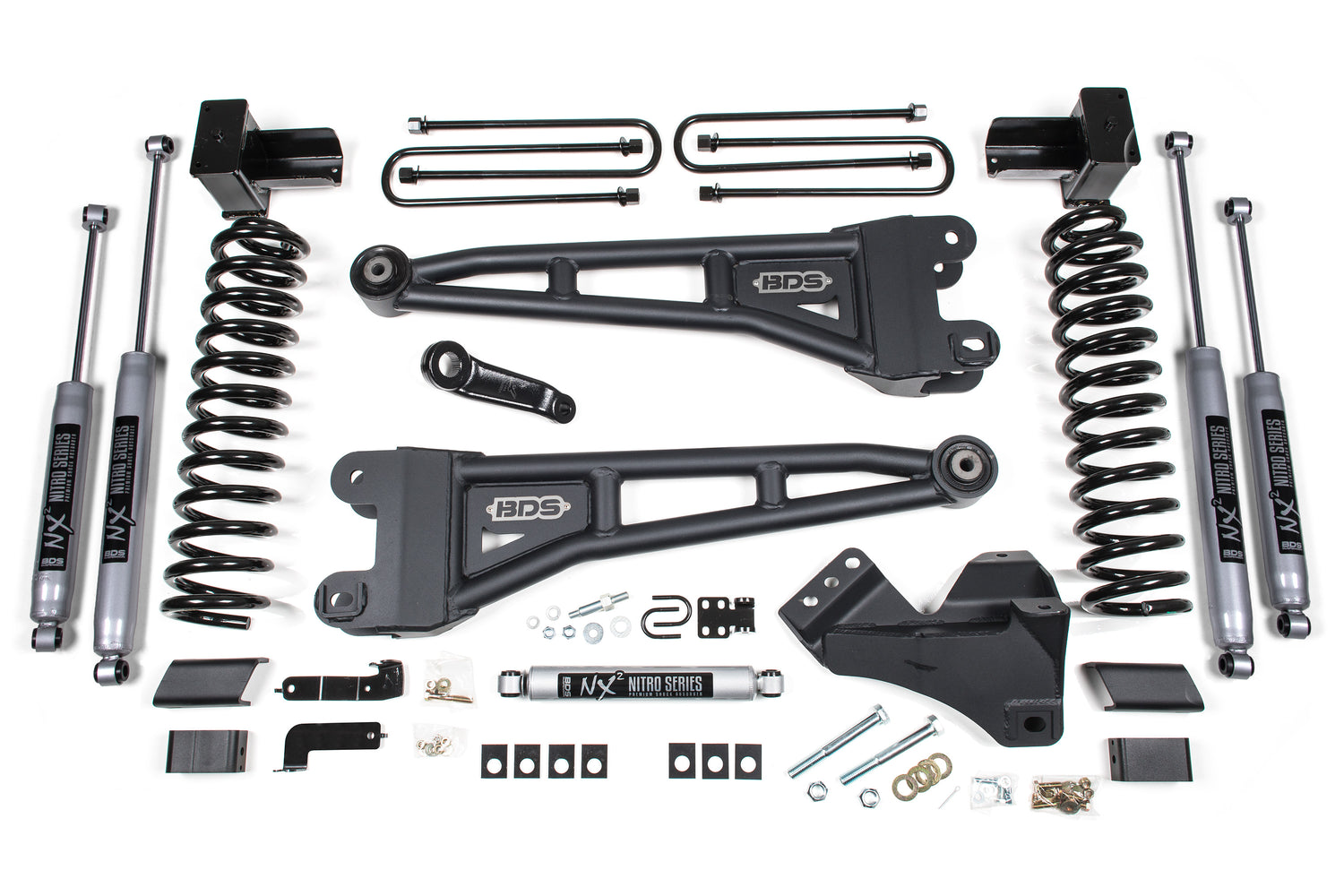

2020-2022 Superduty 5" Lift Kit with FOX 2.0 Performance Shocks (BDS1550FS)

BDS 5" radius arm lift kit for Ford Super Duty gas trucks, with clearance for up to 37" tires. Up front are gasoline-specific Pro-Ride coil springs, heavy-duty replacement radius arms that correct caster, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and nitrogen charged shocks. The rear uses a fabricated lift block, longer u-bolts, brake line brackets, and NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide a level stance front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Ford recommends replacing the pitman arm nut after each removal
• If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8" (UBT4027, Qty 4) is required
• Front exhaust modification may be required to clear the front driveshaft (gas only)
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• Due to taller factory ride height, Tremor models will not net the full advertised lift; final height matches standard models
• Larger tires on stock wheels are not recommended due to brake line clearance; use the recommended wheel and tire fitment specs
• Minor trimming may be necessary for 37x12.50 tires on certain wheel setups
• Installation requires a torque wrench capable of 405 ft-lbs
• Some trucks with rear driveline vibration may have Ford Safety Recall 21S31; BDS recommends having it performed before installing the lift

Includes

• BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit (UPC 658848613458)
• BDS013459, 2020-2022 F250/F350 4.5 inch Rear Block Kit (UPC 658848613564)
• BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit (UPC 658848616534)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
