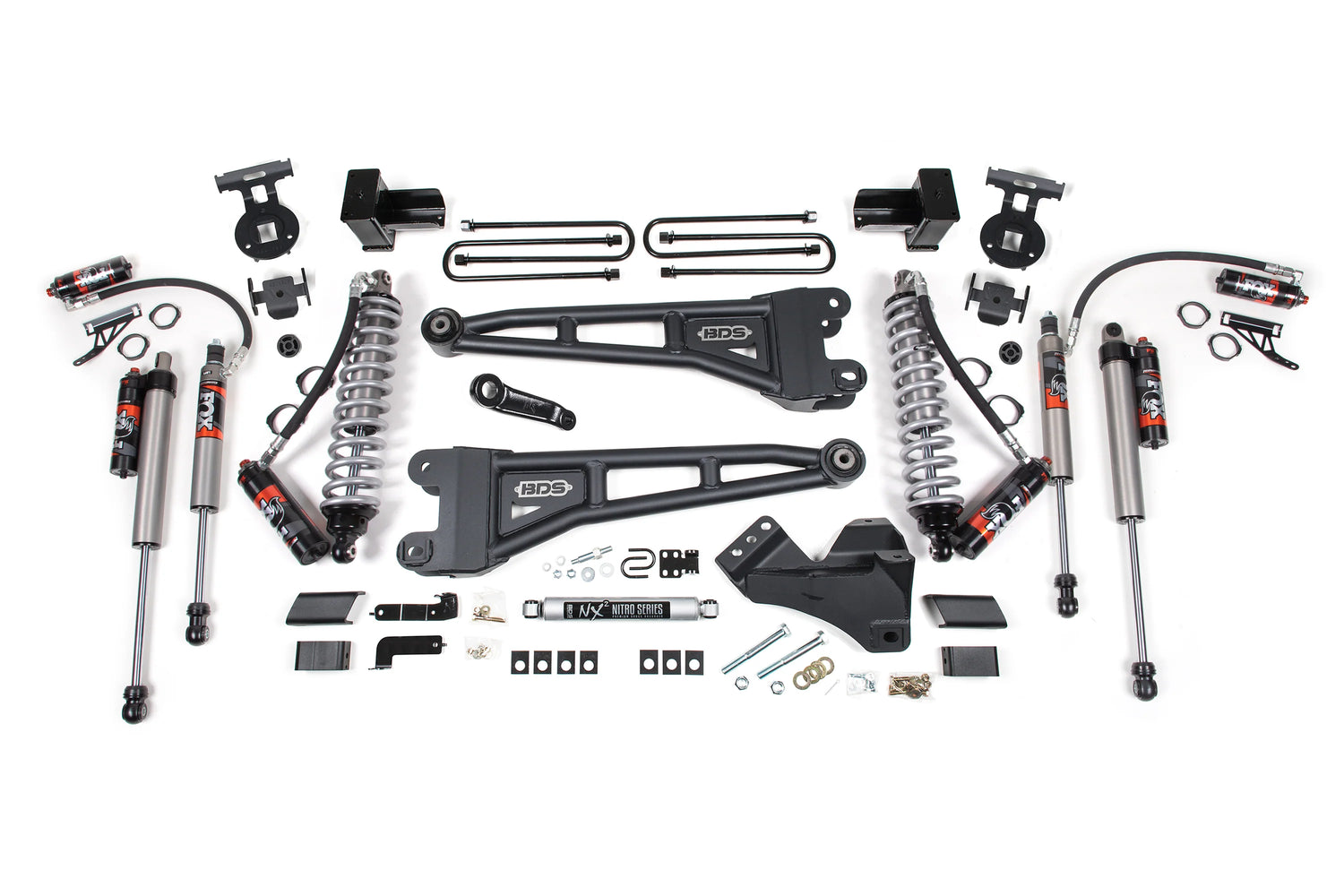

2020-2022 Superduty 5" Radius Arm Lift Fox 2.5 PES (BDS1968FPE)

Engineered for serious off-road performance, this 5-inch radius arm suspension system transforms your Ford F-250 or F-350 4WD with FOX 2.5 Performance Elite coil-over shocks. The complete front and rear component package optimizes suspension articulation, corrects steering geometry, and maximizes tire clearance for aggressive terrain. Built to deliver enhanced ground clearance, improved handling dynamics, and extended suspension travel that separates capable trucks from truly capable ones.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments


Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on the stock wheels are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.

• Fits SRW models only.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 5"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Tire Fitment

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
