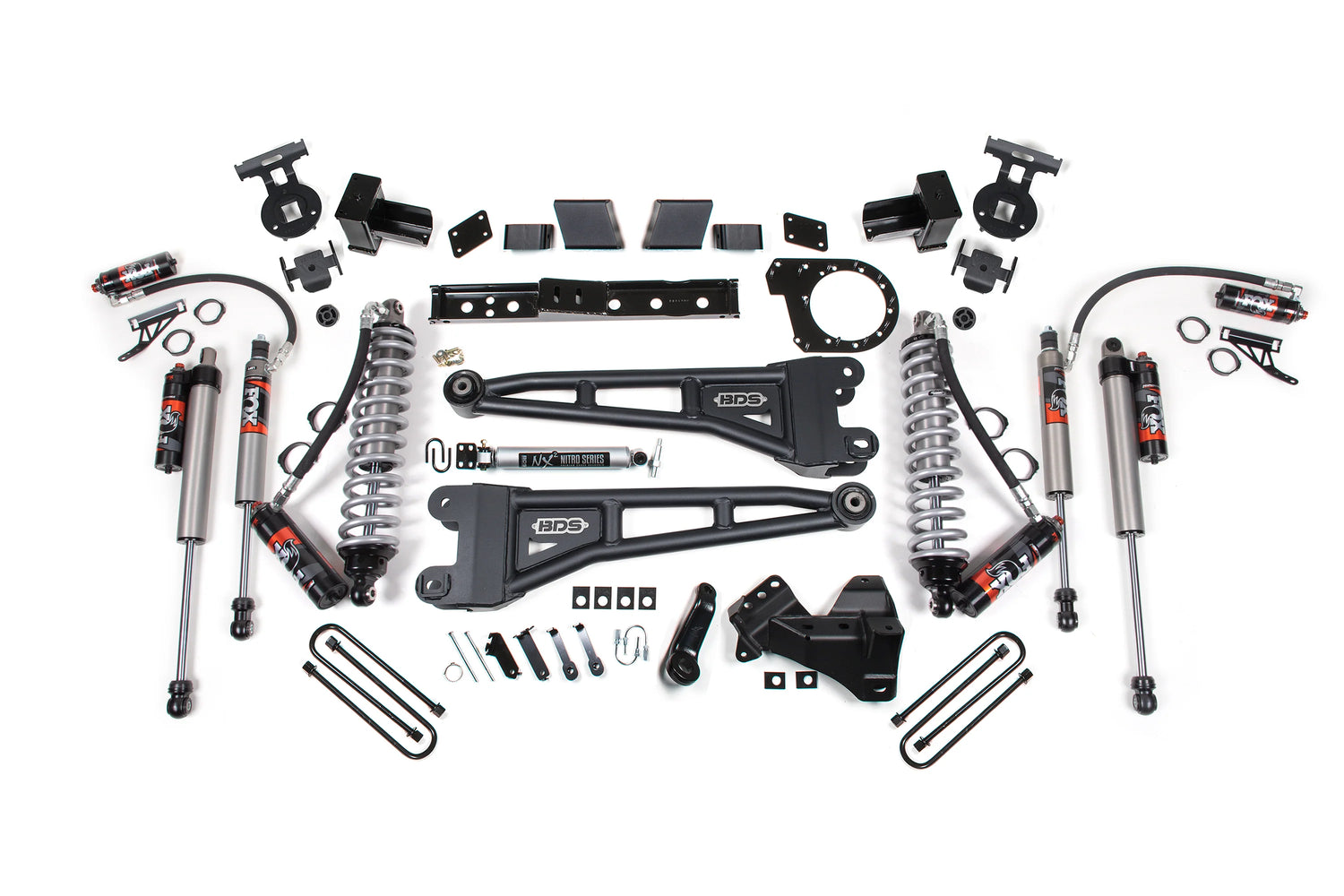

2020-2022 Superduty 7" Radius Arm Lift Fox 2.5 PE (BDS1980FPE)

Engineered for serious off-road performance, this 7-inch radius arm lift system transforms your F-250/F-350 with FOX 2.5 Performance Elite dampers. The complete kit delivers aggressive ground clearance and improved suspension geometry while preserving factory driveline angles. Paired with a 5-inch rear lift, it provides balanced articulation and accommodates larger tires without compromise. Built for trucks that demand capability beyond the pavement.

Features

• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.
• Block kit made of cast iron for high strength.
• Block kit designed to provide correct pinion angles.

Notes

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a factory rear sway bar add: BDS123808
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

• The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing it. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.
• Installation requires a torque wrench capable of 405 ft-lbs.

• Fits SRW models only.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 7"
• Rear Lift Method : Leaf Spring
• Rear Lift Height : 6"
• Shocks Included : Yes
• Lift Height : 6-7.5"

Tire Fitment

• 38 x 13.5 with 17 x 9 and 5 in. Backspace
• 38 x 13.5 with 18 x 10 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace
