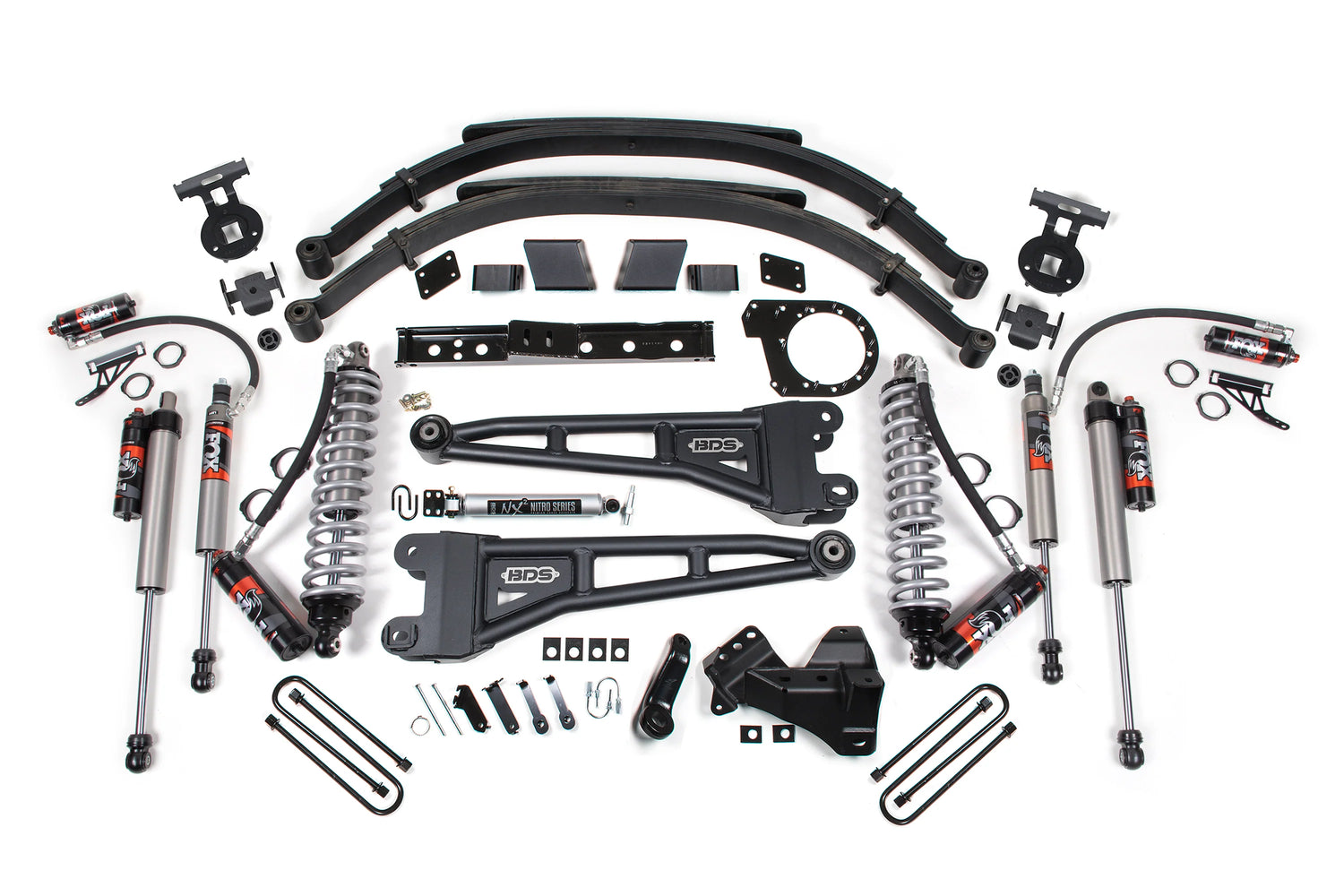

2020-2022 Superduty 7" FOX 2.5 Performance Elite Conversion Kit (BDS1981FPE)

Take your 2020-2022 Ford Super Duty diesel to the next level with this 7" radius arm lift kit and FOX 2.5 Performance Elite coil-over shocks from BDS, with clearance for up to 38" tires. Up front it includes FOX 2.5 coil-over shocks, heavy-duty tubular replacement radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. The transfer case is indexed with the supplied ARP-stud indexing ring and high-clearance transmission crossmember, while the rear uses a high-strength fabricated lift block, longer u-bolts, brake line brackets, and a matching set of FOX shocks.

The FOX 2.5 Performance Elite shocks include a remote reservoir for added fluid capacity and cooling, plus Dual Speed Compression adjustment offering 10 low-speed and 12 high-speed settings to dial in for any terrain.

Features

• FOX 2.5 coil-over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments
• Cast iron pinion shims provide correct pinion angles, included in the base system
• Multi-leaf progressive design eliminates need for a lift block, reduces axle wrap for a smooth, controlled ride
• Maintains factory payload weight ratings
• Secondary FOX 2.0 shock: 2-inch impact extruded aluminum body, internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft (2.0 shock)
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish
• 2.5-inch impact extruded aluminum body (PE coil-over)
• 7/8-inch hard chrome plated heat-treated alloy steel shaft (PE coil-over)
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 7 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 38x13.5
• Wheel Diameter: 18x10, 20x10
• Back Spacing: 5/5

Notes

• Ford recommends replacement of the pitman arm nut each time it has been removed
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper
• If your truck is equipped with a factory rear sway bar, add BDS123808
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. Final ride height will be the same as standard models
• Larger tires on the stock wheels are not recommended due to brake line clearance required; use recommended specs in the wheel and tire fitment section
• The indexing ring is only compatible with 10-speed transmission trucks; verify your truck's equipment before installing. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission
• Indexing ring is NOT designed for manual shift transfer case models. Modification of the shift cable mount will be required
• Installation requires a torque wrench capable of 405 ft-lbs
• Some trucks with a rear driveline vibration may have a Ford recall regarding the rear axle (Safety Recall 21S31). BDS recommends having this performed prior to installing the lift

Includes

• BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring (UPC 658848611409)
• BDS013603, 2020-2022 F250/F350 6 inch RA Front Box Suspension System (UPC 658848613724)
• BDS013617, 2017-2022 Super Duty Rear Leaf Spring Box Kit (UPC 658848613823)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS123605, 2017-2022 SD T-Case Indexing Kit- Diesel (UPC 711745604377)
• BDS123613, 2017-2024 Super Duty Coil-over Mount Kit (UPC 711745604407)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX88326099, Kit: 2017-2023 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 4-6 inch Lift, Dual Speed Compression Adjust
• FOX88326100, Kit: 2017-2024 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inch Lift, Dual Speed Compression Adjust
• FOX88406428, Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 6 inch Lift, Dual Speed Compression Adjust
