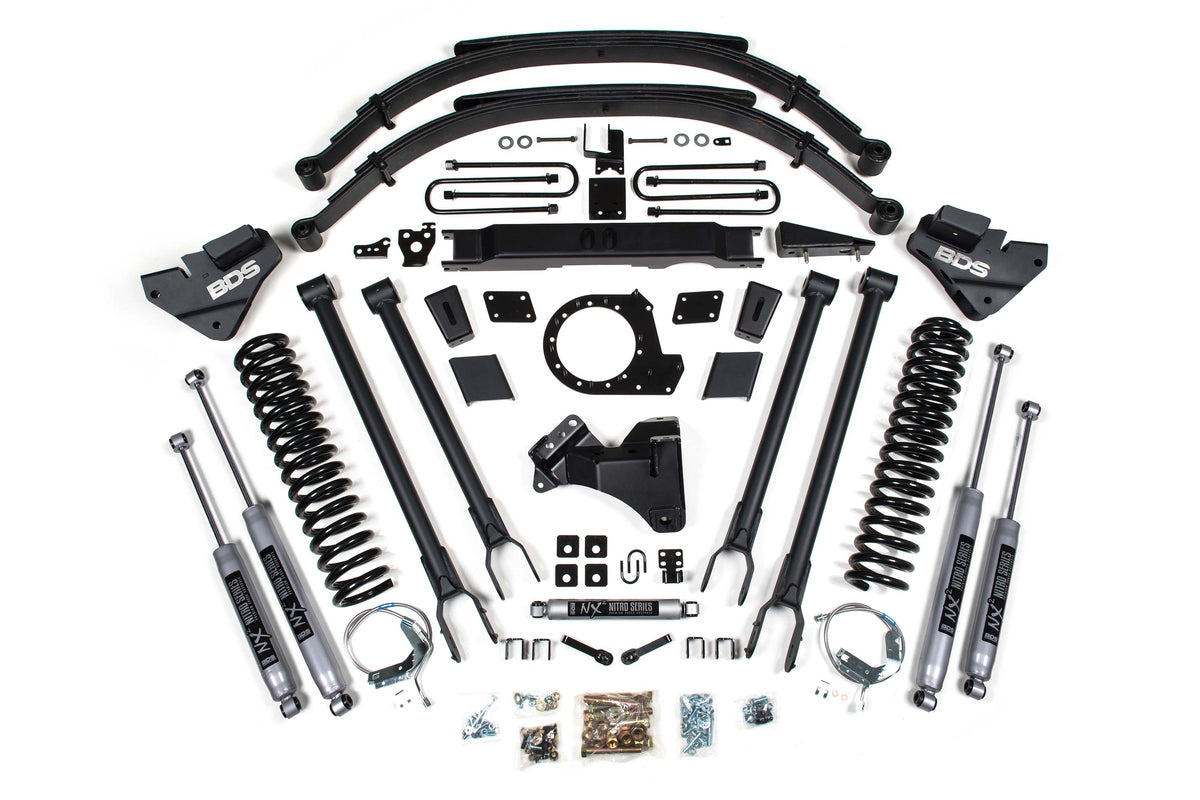

2020-2022 Superduty 9" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1959H)

BDS 9" 4-Link lift for the 2020-2022 Ford Super Duty diesel truck with clearance for up to 40" tires. Up front it includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, bump stop extensions, stainless steel braided brake lines, an NX2 steering stabilizer, and custom-tuned nitrogen charged shocks. At this height the transfer case is indexed with an ARP-stud indexing ring and a new transmission crossmember to allow use of factory driveshafts. In the rear it uses full replacement Glide-Ride leaf springs with a built-in overload spring, u-bolts, brake line brackets, and NX2 Nitro or FOX Performance shocks.

Features

• Easy, 100 percent bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glide-Ride leaf springs provide full lift height with increased capacity
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 9 inch
• Rear Lift Height: 8 inch

Notes

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• 40 x 13.50 tires WILL require trimming.
• Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• If your truck is equipped with a factory rear sway bar add: 123009.
• Indexing ring is not designed to work on manual shift transfer case models; modification to the shift cable mount will be required.

Includes

• BDS003839, 2017 F250/F350 8 inch Rear Leaf Spring (UPC 658848611447)
• BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2 (UPC 658848613700)
• BDS013801, 2017 Super Duty 8 inch Front Box Kit (UPC 658848613830)
• BDS013809, 2017 Super Duty 8 inch Rear Box Kit (UPC 658848613847)
• BDS033811, 05 Ford F250 SD Diesel 8in Coil Kit (UPC 658848616602)
• BDS123805, 2020-2022 Ford Superduty 8 inch Transfer Case Indexing Ring Kit (UPC 711745612181)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• BDS85721, Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1 (UPC 711745609594)
• BDS85779, Shock- 35.50 x 20.40 x 2-3/8 - EB1/EB1 (UPC 711745609778)
