2020-2022 Superduty 2.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1915FS)

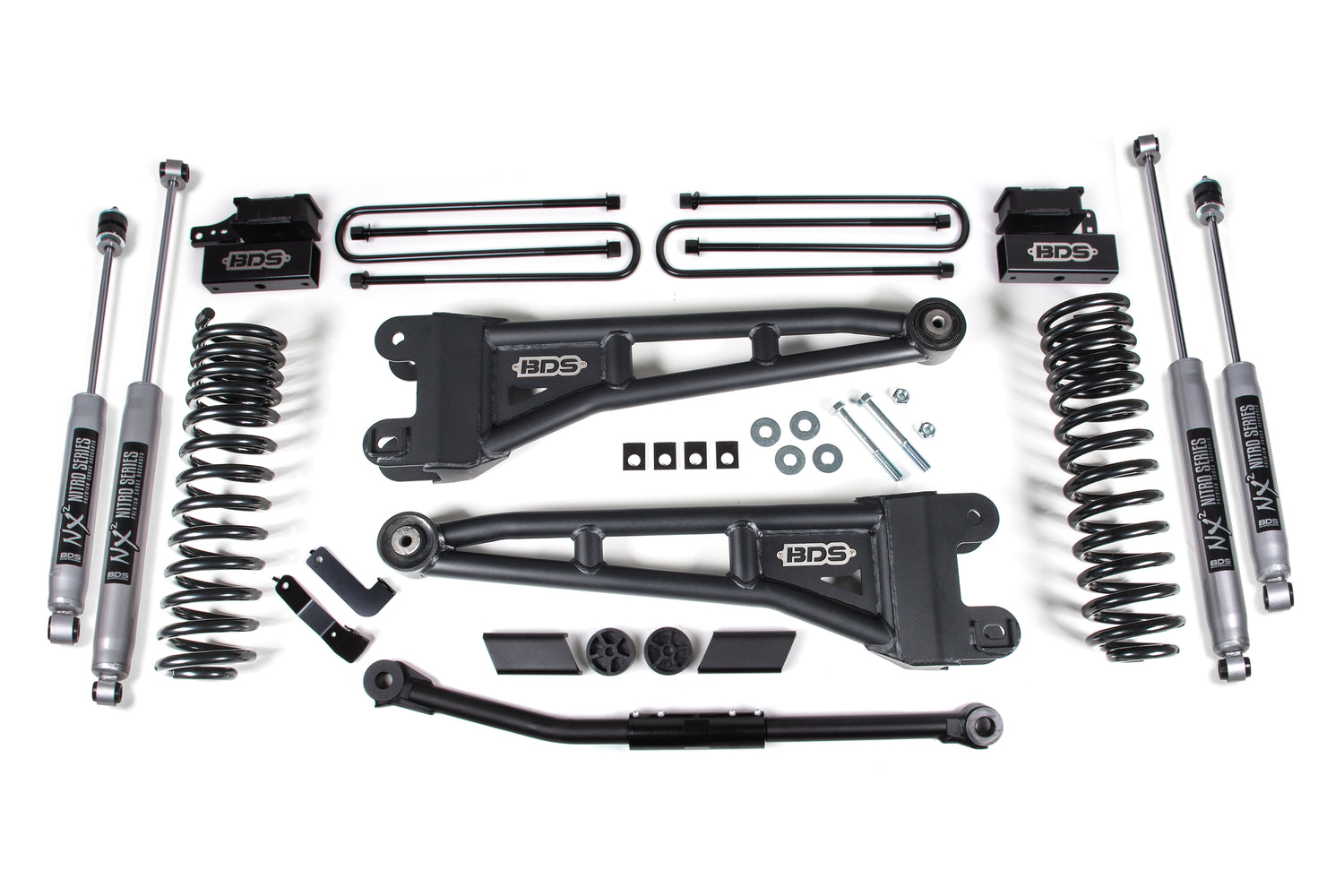

Level and lift your 2020-2022 Ford F-450 Super Duty diesel or gas truck with this BDS 2.5" radius arm lift kit with clearance for up to 35" tires. Up front the kit includes diesel-specific Pro-Ride dual-rate coil springs, heavy-duty tubular replacement radius arms that correct caster, a high-strength 1-3/8" solid steel adjustable track bar, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks. The rear uses a high-strength fabricated lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 1 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.50

Notes

• Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2 inch front ride height).
• Larger Tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in Tire and wheel fitment section.
• Installation requires a torque wrench capable of 405 ft-lbs.

Includes

• BDS013207, 2020-2022 Ford F-450 4wd 2 inch Rear Block Kit (UPC 658848613137)
• BDS013263, 2020-2022 Ford F-450 Super Duty 4wd 2.5 inch Front Box Kit (UPC 658848613250)
• BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair (UPC 658848616480)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
• FOX98224717, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
