2020-2022 Superduty 9" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1959FS)

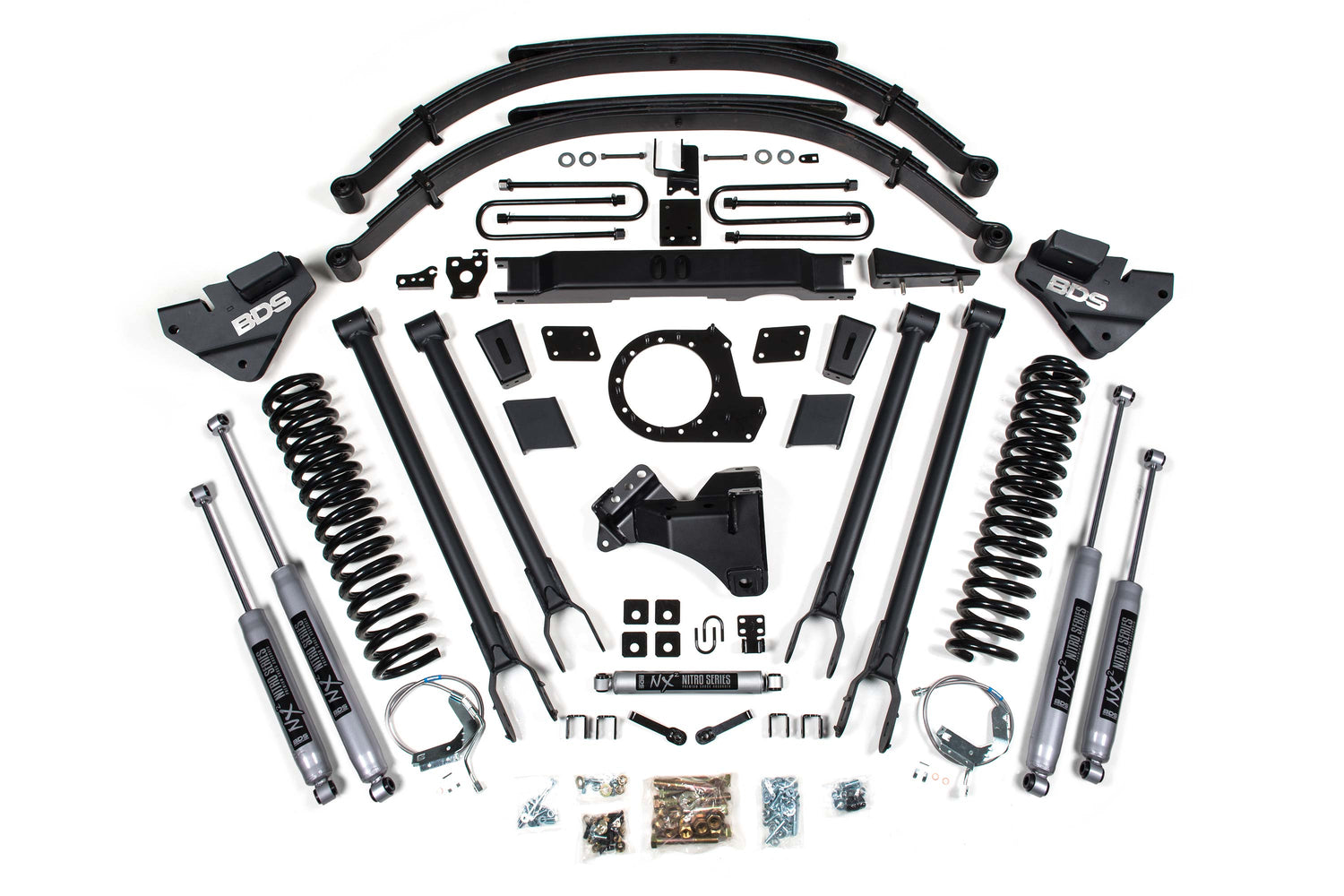

Take your Ford Super Duty diesel truck to the next level with this BDS 9" 4-Link lift kit, with clearance for up to 40" tires. Up front it converts the factory radius arms to a BDS 4-link with HD upper and lower control arms, diesel-specific Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, bump stop extensions, stainless steel braided brake lines, an NX2 steering stabilizer, and custom-tuned nitrogen-charged shocks. At this height a transfer case indexing ring and new transmission crossmember are supplied. The rear uses full replacement Glideride leaf springs with built-in overload, u-bolts, brake line brackets, and NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 9 inch
• Rear Lift Height: 8 inch

Notes

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• 40x13.50 tires WILL require trimming.
• Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• If your truck is equipped with a factory rear sway bar add: 123009.
• Indexing ring is not designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.

Includes

• BDS003839, 2017 F250/F350 8 inch Rear Leaf Spring (UPC 658848611447)
• BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2 (UPC 658848613700)
• BDS013801, 2017 Super Duty 8 inch Front Box Kit (UPC 658848613830)
• BDS013809, 2017 Super Duty 8 inch Rear Box Kit (UPC 658848613847)
• BDS033811, 05 Ford F250 SD Diesel 8in Coil Kit (UPC 658848616602)
• BDS123805, 2020-2022 Ford Superduty 8 inch Transfer Case Indexing Ring Kit (UPC 711745612181)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX98224721, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
• FOX98224779, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
