2020-2022 Superduty 9" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1959FPE)

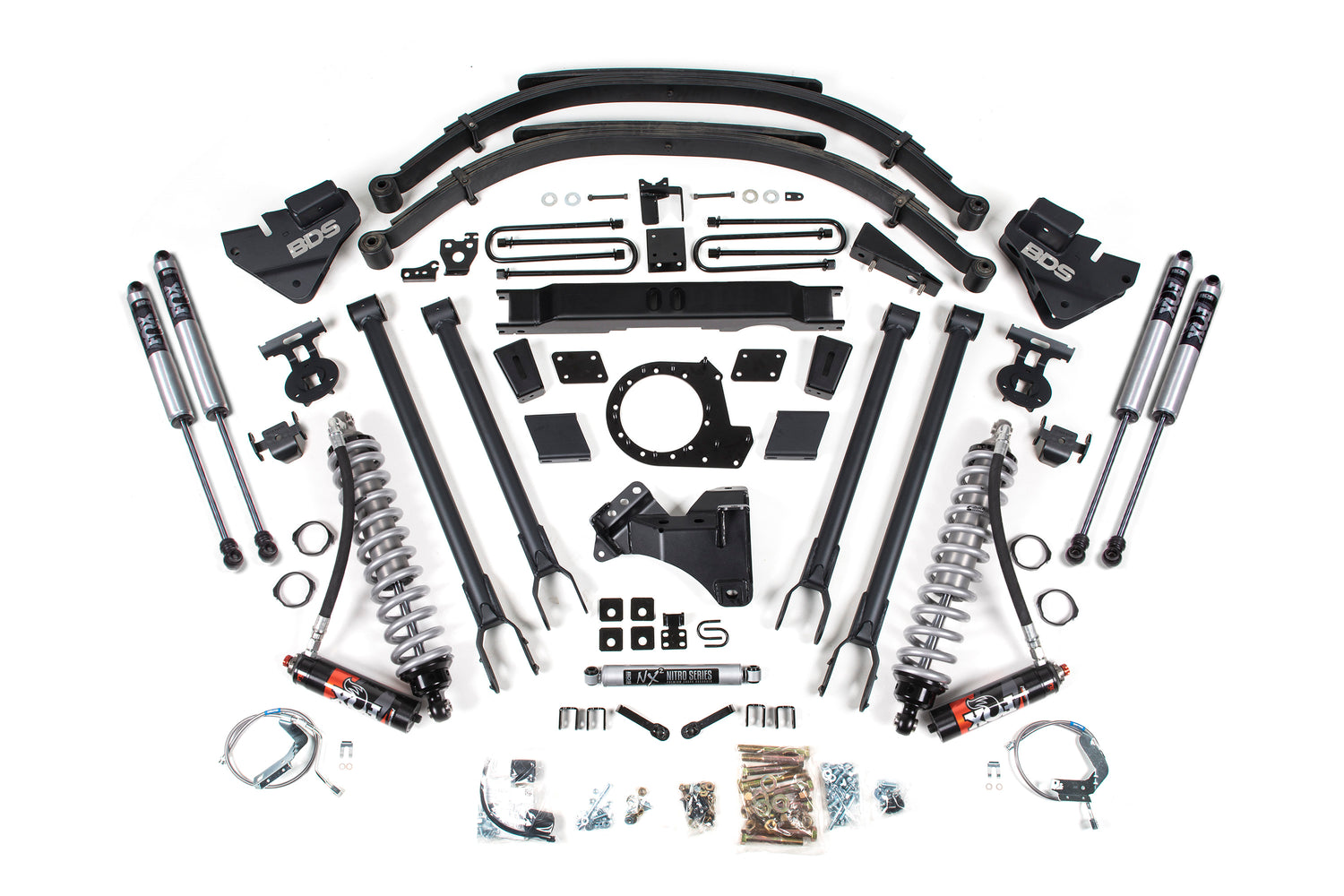

Go to new heights with your 2020-2022 Ford F250/F350 Super Duty diesel with this 9" 4-Link lift kit and FOX 2.5 Performance Elite coil-over shocks from BDS, with clearance for up to 40" tires. Up front it includes diesel-specific FOX 2.5 coil-overs, a 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned FOX secondary shocks. The transfer case is indexed with the supplied ARP-stud indexing ring and high-clearance transmission crossmember, while the rear uses full-replacement BDS Glideride leaf springs, u-bolts, brake line brackets, and a matching set of FOX shocks.

The FOX 2.5 Performance Elite shocks include a remote reservoir for added fluid capacity and cooling, plus Dual Speed Compression adjustment offering 10 low-speed and 12 high-speed settings to dial in for any terrain.

Features

• FOX 2.5 coil-over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs provide full lift height and increased capacity with a built-in overload spring
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 9 inch
• Rear Lift Height: 8 inch

Recommended Tire & Wheel Fitment

• Tire Size: 40x13.5
• Wheel Diameter: 20x10
• Back Spacing: 512

Notes

• The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission
• If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
• 40x13.50 tires WILL require trimming
• If your truck is equipped with a factory rear sway bar, add BDS123009
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required

Includes

• BDS003839, 2017 F250/F350 8 inch Rear Leaf Spring (UPC 658848611447)
• BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2 (UPC 658848613700)
• BDS013801, 2017 Super Duty 8 inch Front Box Kit (UPC 658848613830)
• BDS013809, 2017 Super Duty 8 inch Rear Box Kit (UPC 658848613847)
• BDS123613, 2017-2024 Super Duty Coil-over Mount Kit (UPC 711745604407)
• BDS123805, 2020-2022 Ford Superduty 8 inch Transfer Case Indexing Ring Kit (UPC 711745612181)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX88406429, Kit: BDS 05-ON Ford SD, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 8 inchРЎСљ Lift, Dual Speed Compression Adjust
• FOX98224721, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
• FOX98224779, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
