2019-2023 Ranger 3.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1906FSL)

Take your 2019-2023 Ford Ranger to the next level with this BDS 3.5" lift kit with FOX 2.0 coil-over shocks, engineered for added tire clearance and performance without overextending suspension or driveline angles. Up front the kit uses steel top-mount strut spacers, pre-load spacers, differential relocation brackets that correct CV axle angle while retaining the factory front skid plate, and tubular upper control arms built from 1.5" OD x .120-wall tubing with an indexed ball joint cup for added down travel and camber adjustment. The rear uses heavy-duty lift shackles and custom-tuned FOX 2.0 Performance Series shocks. The FOX coil-overs feature a 2.0" machined 6061-T6 aluminum body, internal floating piston, and 5/8" hard chrome plated shaft, preloaded for easy installation.

Features

• FOX Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• HD Upper control arms provide superior strength and proper alignment
• Adjustable height to fine tune
• Provides level stance from front to rear
• Easy, 100 percent Bolt On installation
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specs

• Front Lift Method: Strut Spacer
• Rear Lift Method: Shackle
• Shocks Included: Yes
• Front Lift Height: 3.5 inch
• Rear Lift Height: 1 inch

Recommended Tire & Wheel Fitment

• Tire Size: 305/55
• Wheel Diameter: 20x9
• Back Spacing: 5

Notes

• Aftermarket wheels must have a minimum of 93.1mm center hub bore.
• Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
• Will NOT work on trucks equipped with cast steel steering knuckles. Ford produces two knuckle/control arm configurations in 2020+ Rangers; verify which factory knuckle your truck has before ordering by referencing the help images when customizing your kit.

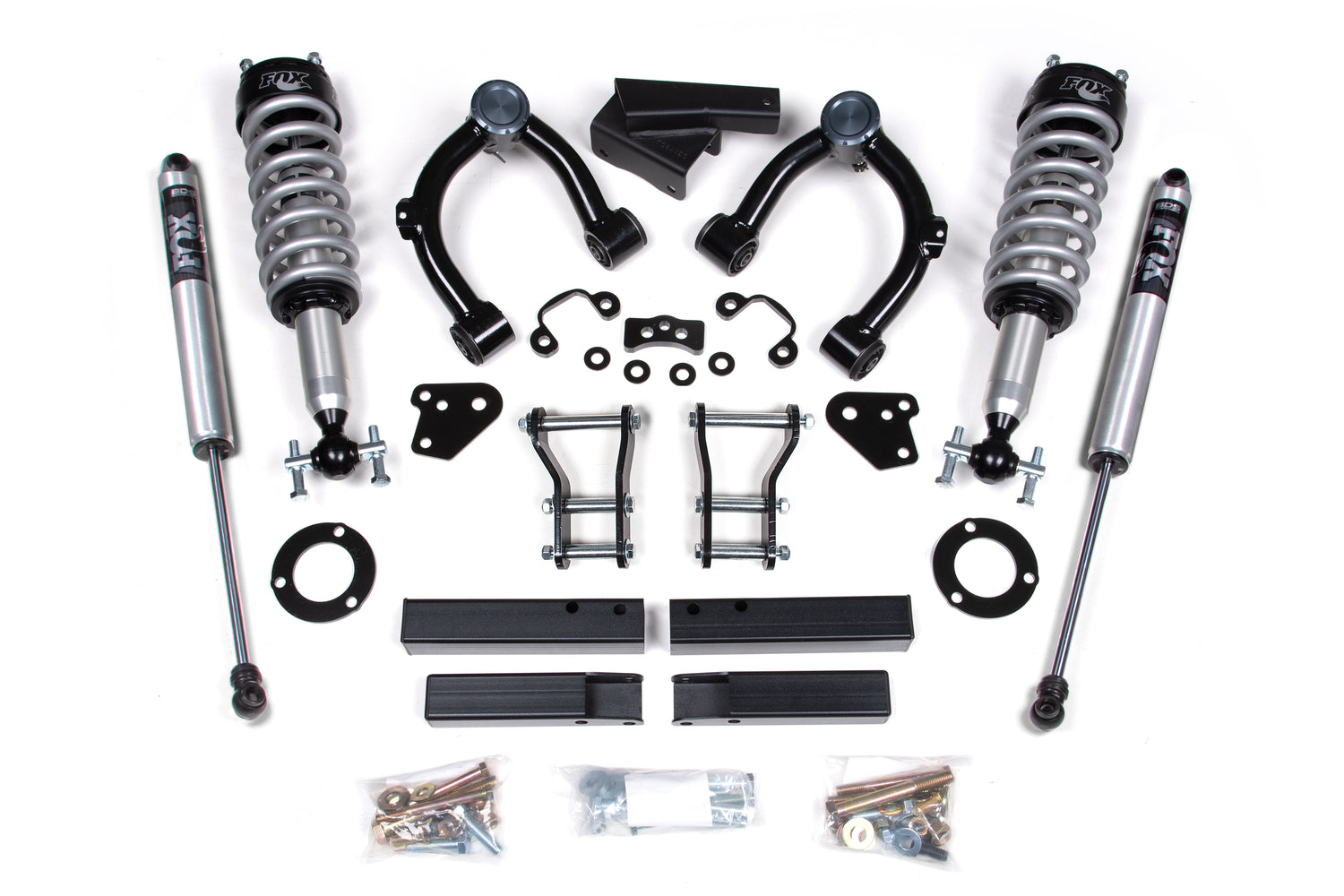

Includes

• BDS013354, 2020-2023 Ford Ranger Coilover 2.5 inch-3.5 inch Box kit - Steel OE Knuckle (UPC 711745611764)
• BDS123614, 2019-2023 Ford Ranger Intrusion Beam Kit (UPC 711745604414)
• FOX98224880, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
• FOX98502133, 19-ON Ford Ranger, Front Coilover, PS, 2.0, Internal Floating Piston, 4.5 inch, 0-3 inch Lift (UPC 788000424551)
