2019-2023 Ranger 3.5" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1910FPE)

Take your 2019-2023 Ford Ranger to the next level with this 3.5" lift kit and FOX 2.5 coil-over shocks from BDS, with clearance for up to 33" tires. Up front it includes steel top-mount strut spacers, pre-load spacers, differential relocation brackets to correct CV axle angle while keeping the factory skid plates, and tubular upper control arms built from 1.5" OD x .120-wall tubing with an indexed ball joint cup for added down travel and camber adjustment. The rear runs heavy duty lift shackles and custom-tuned matching FOX shocks.

The FOX 2.5 coil-overs come standard with DSC (Dual Speed Compression) adjustment to tune high-speed and low-speed damping for any terrain.

Features

• FOX 2.5 coil-over shocks designed for increased travel to soak up the roughest terrain
• DSC adjuster adds versatility and precise tuning with a simple twist of two adjuster knobs
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• 2.5-inch impact extruded aluminum body
• 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• Trimming may be required
• Recommended fitment: 285/65 with 18 x 9 and 5.75" backspace, or 305/55 with 20 x 9 and 5" backspace
• Ford produces two knuckle/control arm configurations in 2020+ Rangers. Cast steel knuckle models have different ball joints than aluminum knuckle models. Verify which factory knuckle your truck has before ordering (reference the help images when customizing your kit)

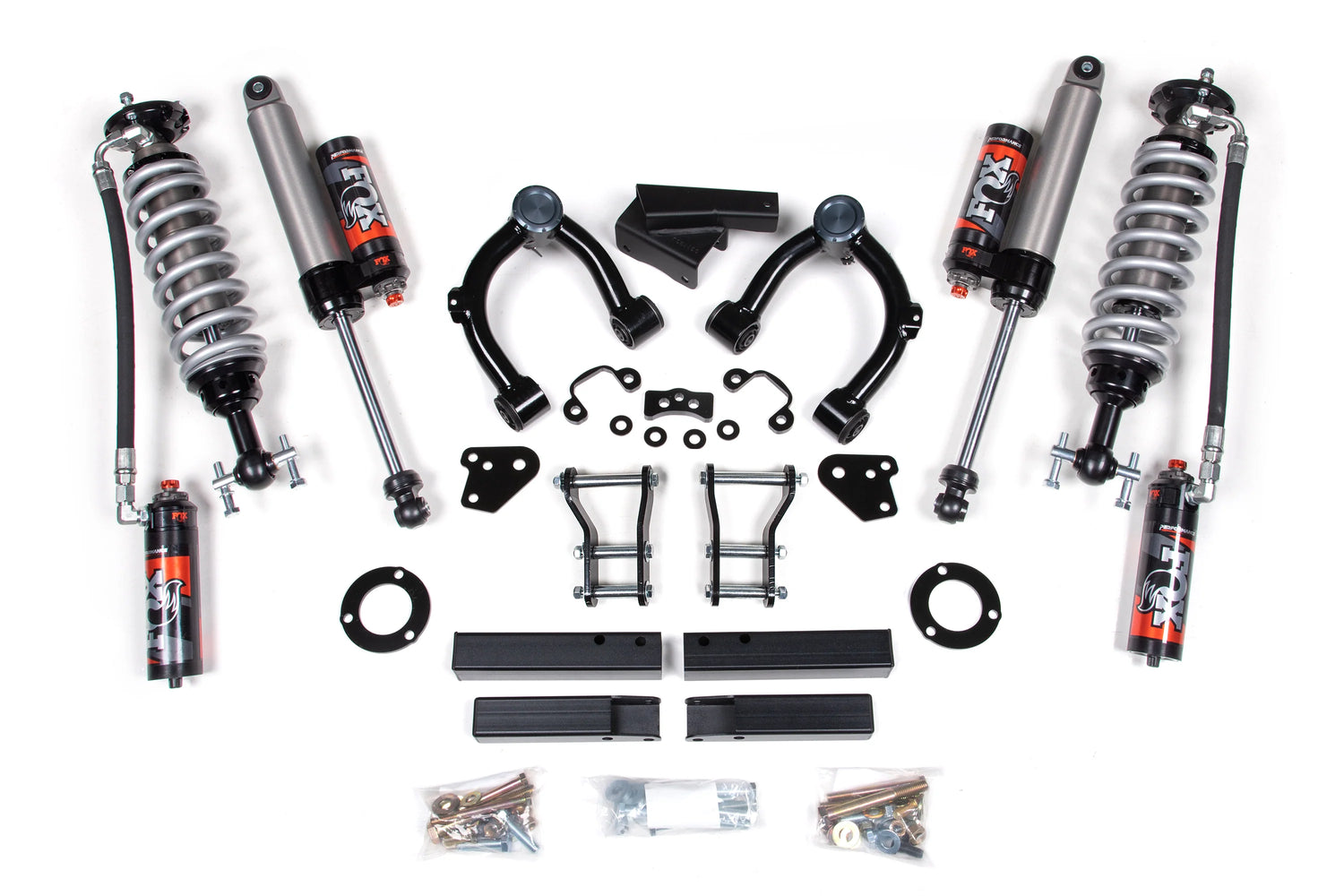

Includes

• BDS013354, 2020-2023 Ford Ranger Coilover 2.5 inch-3.5 inch Box kit - Steel OE Knuckle (UPC 711745611764)
• BDS123614, 2019-2023 Ford Ranger Intrusion Beam Kit (UPC 711745604414)
• FOX88306156, KIT: 19-ON Ford Ranger, US Only, Front, 2.5 Truck Fox Performance Elite Series, R/R, 4.05 inch, 2-3 inch Lift, Dual Speed Compression Adjust
• FOX88326059, KIT: 19-ON Ford Ranger, US Only, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 9.55 inch, 0-1.5 inch Lift, Dual Speed Compression Adjust (UPC 711745603585)
