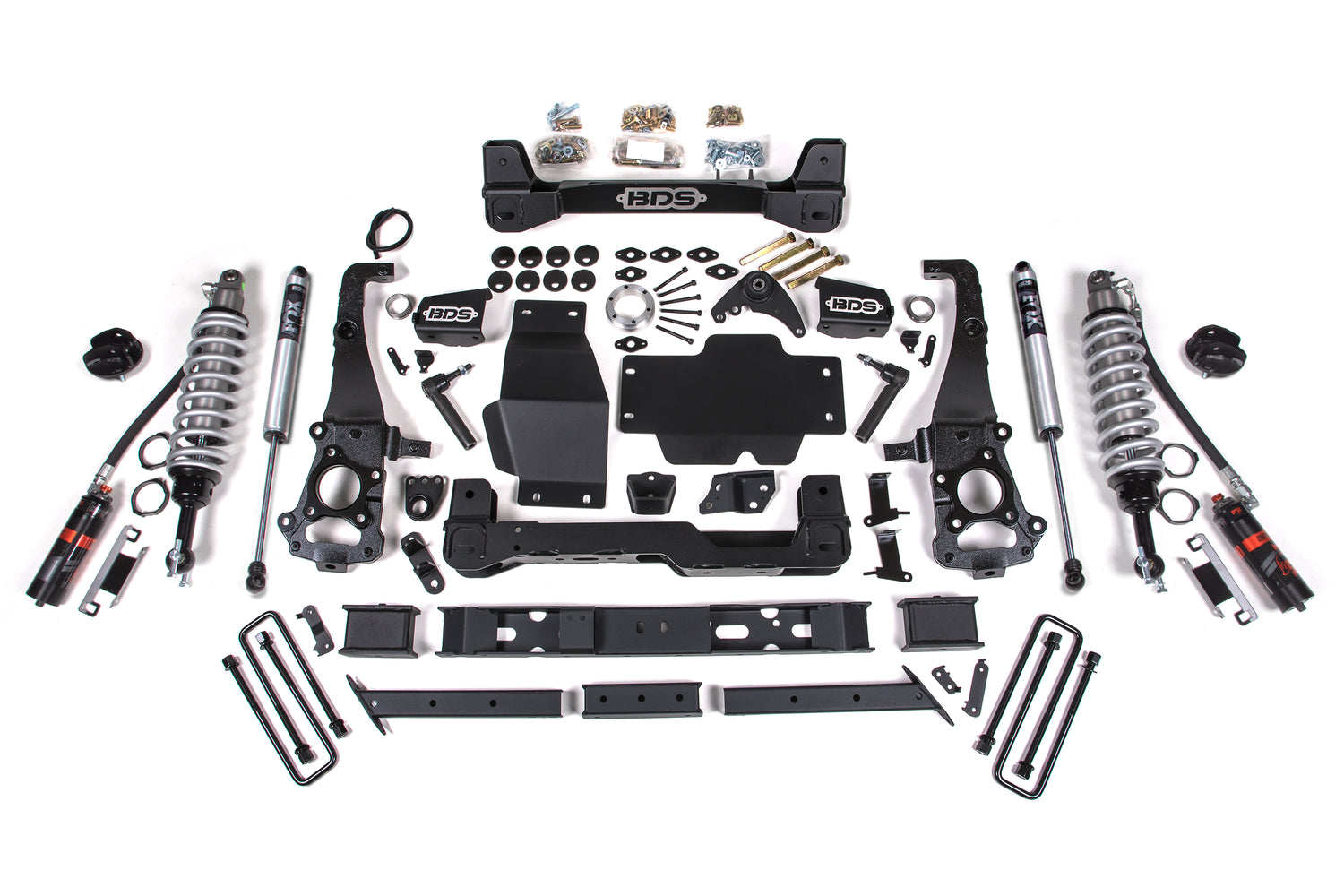

2019-2023 Ranger 6" Lift Kit with FOX 2.5 Performance Shocks (BDS1907FDSC)

BDS steps up the performance of the 2019-2023 Ford Ranger with this 6" lift kit built around proprietary FOX 2.5 coil-over shocks for increased travel and on-road comfort, with clearance for up to 35" tires. The high-clearance front end uses 1/4" thick high-arched steel crossmembers, top-mounted strut spacers, multipiece differential relocation brackets, a skid plate, and CNC-machined ductile iron steering knuckles with sway bar relocation brackets, brake line brackets, and alignment cam bolts. The rear uses a heavy-duty replacement transfer case crossmember, high-strength fabricated lift blocks, longer u-bolts, and NX2 Nitro or optional FOX 2.0 Performance Series shocks. Standard DSC adjustment tunes low and high-speed compression for any terrain.

Features

• FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance

Notes

• Trimming may be required.
• Fitment: 33 x 12.5 with 17 x 9 and 4.5 in. Backspace; 33 x 12.5 with 18 x 9 and 5 in. Backspace; 35 x 12.5 with 20 x 9 and 5.5 in. Backspace.

Includes

• BDS023662, 2019-2023 Ford Ranger Front Box Kit (1of2) (UPC 658848616015)
• BDS023663, 2019-2023 Ford Ranger Front Box Kit (2of2) (UPC 658848616022)
• BDS023669, 2019-2023 Ford Ranger 6 inch Rear Box Kit (UPC 658848616046)
• BDS023674, 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Driver (UPC 711745611955)
• BDS023675, 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Passenger (UPC 711745611962)
• BDS123600, 2019-2023 Ford Ranger Coilover Mount Box Kit (UPC 711745604339)
• FOX88406262, Kit: BDS 19-20 Ford Ranger, Front, 2.5 FRS, R/R, 4.4 inch, 6 inch Lift, Dual Speed Compression Adjust (UPC 814897013476)
• FOX98224821, Fox 2.0 Shock 26.85 x 16.75 EB1/EB1
