2020-2025 Superduty 4WD Front 2.5" Coil Spring Leveling Kit (46-20252)

The ReadyLIFT 2.5-inch Coil Spring Front Lift Kit is an exclusive leveling system engineered for Ford Super Duty diesel trucks, providing 2.5 inches of front lift. This kit is designed for those who wish to upgrade their suspension and utilize their own preferred shock absorbers or retain the factory shocks, as it comes without shocks but includes shock extensions. A front coil spring leveling kit is a superior alternative for lifting the front of your truck, delivering a great ride and handling performance while providing improved ground clearance and a more commanding view of the road.

Features

• Provides 2.5 inches of front leveling lift via heavy-duty coil springs.
• Includes a front track bar relocation bracket.
• Comes with shock extensions, allowing retention of factory shocks.
• Includes model-specific brake line extension brackets, bump stop extension brackets, and front sway bar frame mount extension brackets.

Notes

• Tremor editions will not net full height.
• 2023-2025 Tremor versions will gain approximately 1.125 inches over stock ride height.
• For trucks with the Onboard Scale option, the Auto-Leveling Headlight Bracket Kit (PN: 67-23210) is required.
• Some 2020-2025 Super Duty trucks may need to retain the factory track bar bracket if the front axle is shifted off center with the provided bracket.

Compatibility Notes

• Engineered exclusively for Ford Super Duty diesel trucks.
• Not recommended for 2WD or gas trucks because the springs are designed and rated for the heavier diesel engine.
• Also compatible with F450 models, though you may get less lift due to heavier spring ratings.

Tire Fitment

• Allows for up to 35-inch tall tires for no rub.
• With minor trimming, fitment is possible for up to 37-inch tall tires.
• Ideal tire/wheel combo is 35x12.50 on a 9 or 10-inch wide wheel with +25 to 0 offset for no rub.

Specs

• Front Lift: 2.5 inches (maximum).

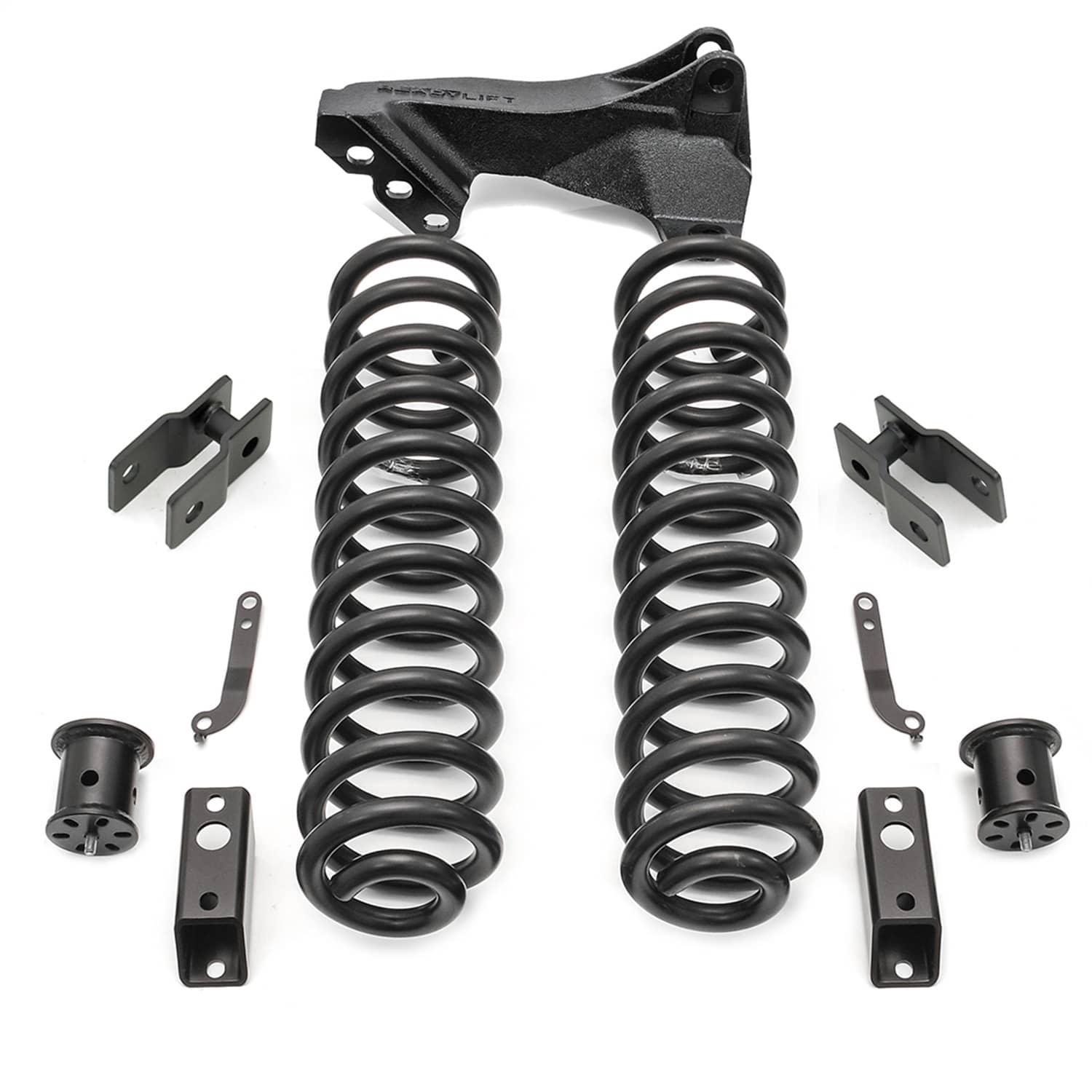

• Kit Contents: 2.5-inch lift front coil springs, Sway bar spacers, Brake line extensions, Front track bar relocation bracket, and Shock extensions.
