2020-2026 GM HD 6.6L Fuel Coolant Pump Relocation Kit (114002700)

Description

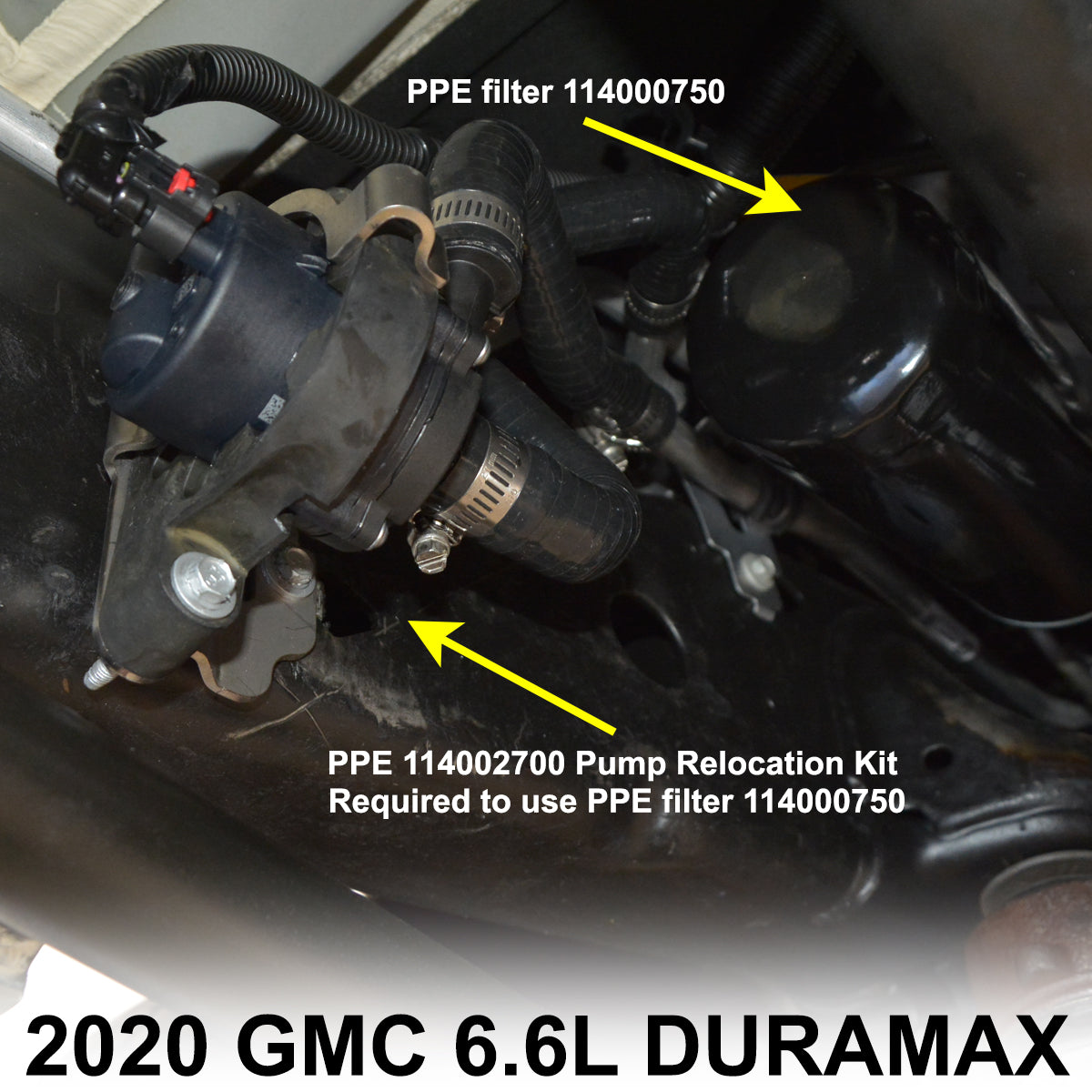

The PPE Fuel and Coolant Pump Relocation Kit is a precision-engineered solution for GM 2500/3500 trucks equipped with the 6.6L Duramax L5P engine. This kit replaces the restrictive factory mounting bracket to reposition the fuel heater coolant pump away from the oil filter housing. By creating this additional clearance, the kit enables the installation of oversized high-efficiency oil filters, such as the PPE 114000750, which provides superior 5-micron filtration and significantly increased oil capacity compared to the OEM unit.

Features

• Relocates the factory fuel heater coolant pump to provide clearance for oversized, high-capacity engine oil filters.
• Replaces the bulky factory plastic mounting bracket with a low-profile, high-strength fabricated bracket.
• Enhances serviceability by improving access to pump and filter components during routine maintenance.
• Reduces thermal stress on fuel and coolant hoses by increasing the air gap between fluid lines and high-temperature engine components.
• Includes heavy-duty molded hoses and stainless steel clamps to ensure a leak-free, factory-quality installation.
• Direct-fit design integrates with existing factory mounting points for a secure and stable fitment.

Specifications

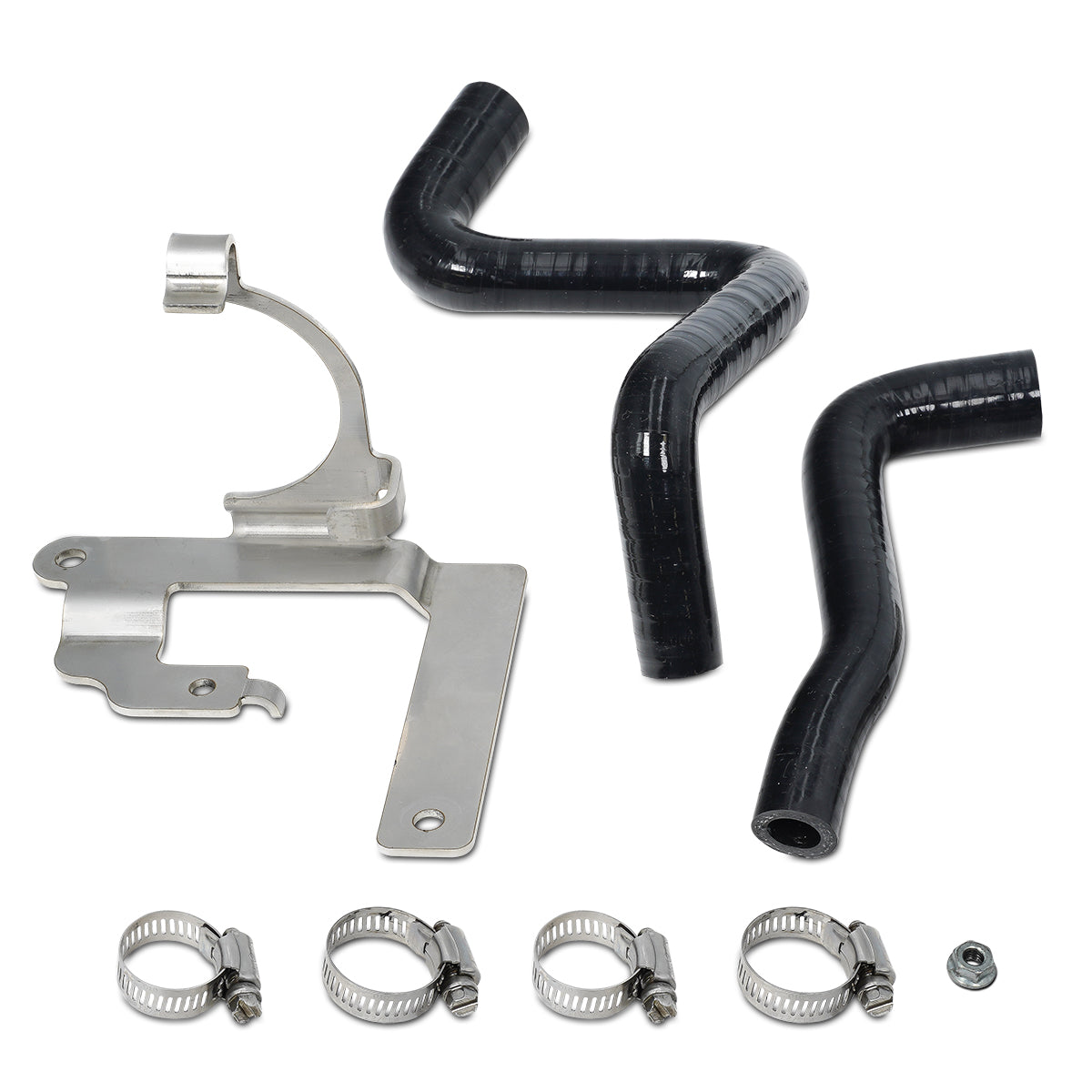

• Components: Fabricated mounting bracket, molded hoses, and high-tension hose clamps.
• Compatibility: Specifically designed for use with PPE 114000750 High-Efficiency Deep Engine Oil Filter.

Notes

• Mandatory requirement for owners wishing to upgrade to the PPE Deep Engine Oil Filter on L5P platforms.
• Installation utilizes existing factory retention screws for the pump assembly; no drilling or permanent modification is required.
• Helps prevent "vapor lock" conditions and fuel economy degradation caused by fuel lines contacting hot oil filter surfaces.
