2020-2025 Gladiator EnduroSport 3" Suspension Lift System (JT30-1X5310-L7)

Description

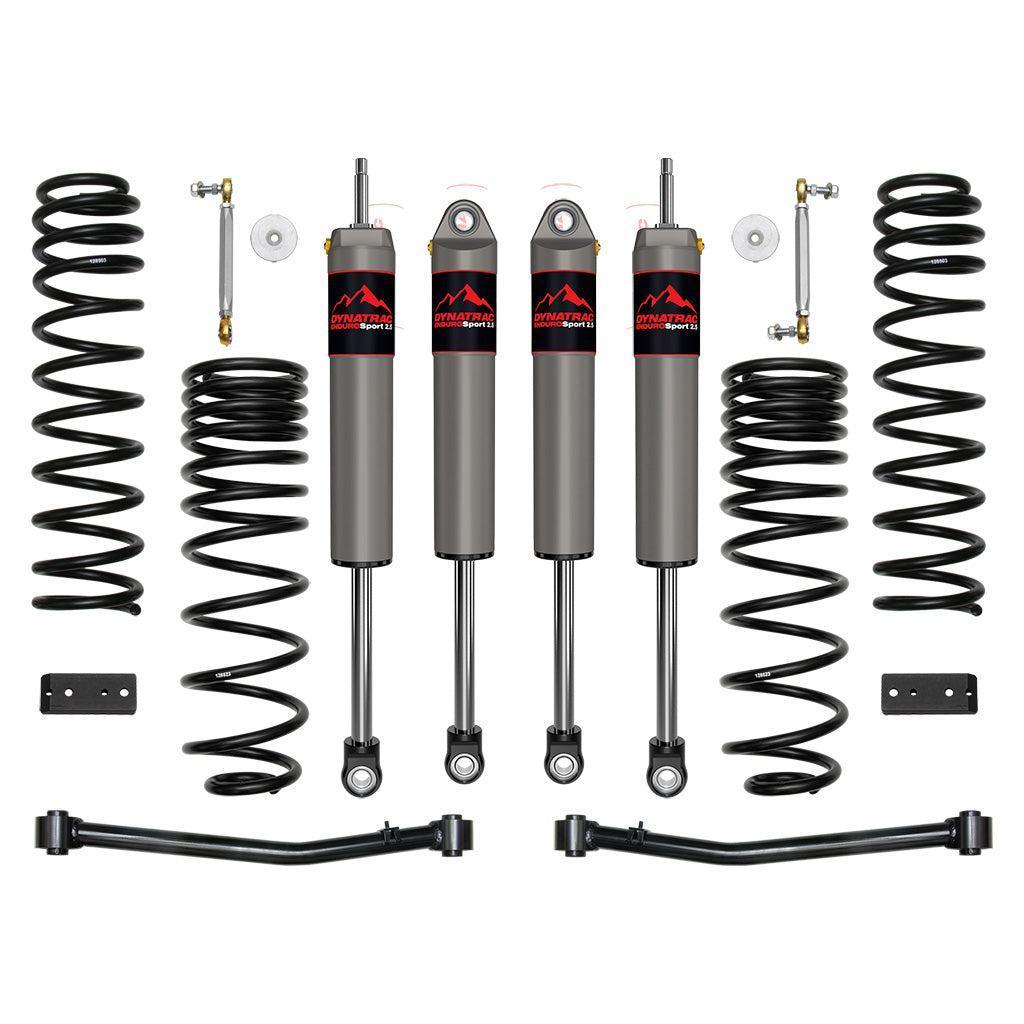

The Dynatrac 3" Suspension Lift System 7 for 2020+ Jeep Gladiators boosts your ride with 3" lift front dual-rate coil springs, 1.5" lift triple-rate rear coil springs, 2.5 EnduroSport shocks, bump stop spacers, adjustable front sway bar links and rear brackets, and all necessary hardware. It’s got tough steel links and noise-free bushings for smooth, flexible off-road action. You’ll get more wheel travel and fit 35" tires easily. Want 37" tires? Grab the extra bump stop kit. Simple upgrade, serious performance.

Part Number: JT30-1X5310-L7

Features

• 3" front lift height and 1.5" of rear lift over stock
• Fits 35" tires (37" with optional extended bump stop spacer kit)
• 3" front, 2" rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Dual-rate front coil springs and triple-rate rear coils with lifetime guarantee against sagging/breakage
• 2.5 EnduroSport shocks with Jeep JL-specific valving offer greater shock damping and performance
• Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
• Tubular steel link arms with dual durometer bushings for noise-free performance, maximum articulation, and minimal bind
• 100% bolt-on
• Easy install
• Tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Additional Info

• Bushings Included: No
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Grade Type: Performance
• Maximum Lift Front: 3
• Maximum Lift Rear: 1.5
• Mounting Hardware Included: Yes
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

Notes

• Dynatrac's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Springs are NOT rated for use with models equipped with EcoDiesel engines.
• Jeep Gladiator Mojave also requires heim spacer kit, part # DT9611070

Tire Fitment

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
