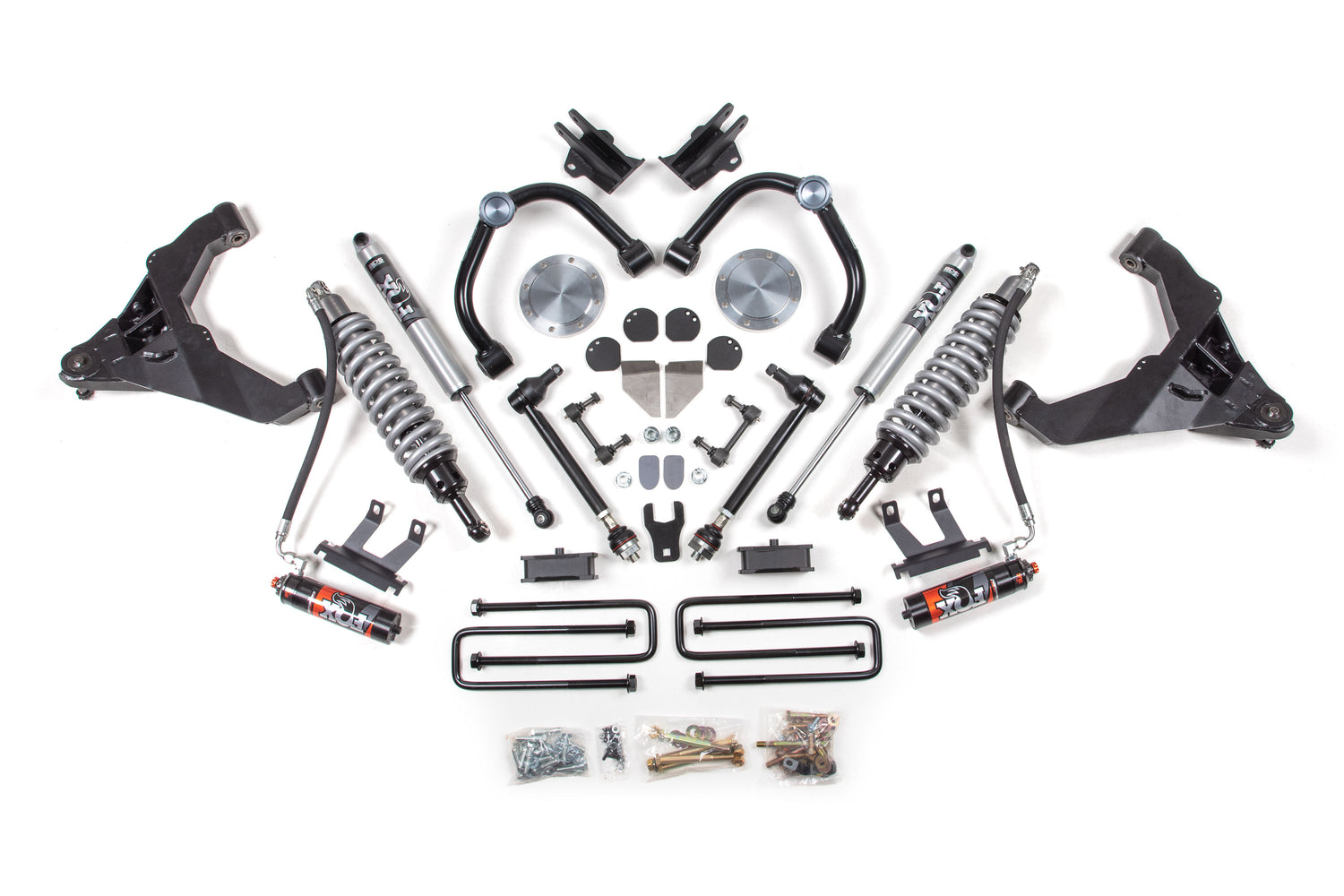

2020-2024 GM HD 3" FOX 2.5 PE Coilover Conversion (BDS1812FPE)

Transform your GM 2500HD or 3500HD with this premium suspension conversion from BDS Suspension. This system replaces your factory torsion bar setup with FOX 2.0 Performance Series coil-over shocks, delivering enhanced ride quality, increased wheel travel, and superior off-road performance. The conversion accommodates up to 35" tires and features upgraded control arms engineered for improved suspension geometry and durability. Whether tackling challenging terrain or daily driving, this lift kit provides the responsive handling and comfort that serious truck owners demand.

Features

• Converts torsion bar front suspension to a Coil-over for improved ride comfort.
• Includes BDS upper and lower control arms.
• FOX 2.5 Performance Elite series DSC coil-overs offer improved damper performance over stock.
• BDS performance UCAs increase strength and allow for more suspension travel
• Factory Protection Plus drivetrain warranty included Easy,
• 100% Bolt on installation

• Dual Speed Compression (DSC) Adjuster increases both low and high speed compression levels up to 25%
• Provides added control and comfort for on-road use or more aggressive damping for use off-road

Notes

• Models with two-piece rear drive shafts will require a carrier bearing drop kit. (BDS121612)
• Requires frame bracket modification and minor welding
• Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool.
• The GM specified tool # is CH48809.

• Dually Models will require aftermarket 20" wheels with a max tire size of 285/60/20.

• Factory 17", 18" and 20" wheels cannot be reinstalled due to upper control arm clearance.
• Coilover coil has a large amount of preload, a coil spring compressor must be used to remove the coil from the coilover. Failure to use a coil spring compressor may result in death or injury.
• Do NOT increase coilover preload.
• For replacement ball joints use service kit BDS081203. Ball joints are directional and must be installed with the "dot" facing either inward or outward on the vehicle, otherwise damage may occur.
• Increase of 1" of track width per side (2" overall) is done to create a better travel range of the suspension to allow more droop travel from ride height along width helping the coilover clear the frame components.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 3"
• Rear Lift Method : Block
• Rear Lift Height : 2"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Tire Fitment

• 35 x 12.50 on 17" x 9" w/ 4-1/2 to 5-1/2" Backspacing
• 285/75 on 17x9" w/ 4-1/2 to 5-1/2" Backspacing
• 35 x 12.50 on 18" x 9" w/ 4-1/2 to 5-1/2" Backspacing
• 285/70 on 18x9" w/ 4-1/2 to 5-1/2" Backspacing
• 35 x 12.50 on 20" x 9" w/ 4-1/2 to 5-1/2" Backspacing
• 295/60 on 20" x 9" w/ 4-1/2 to 5-1/2" Backspacing
