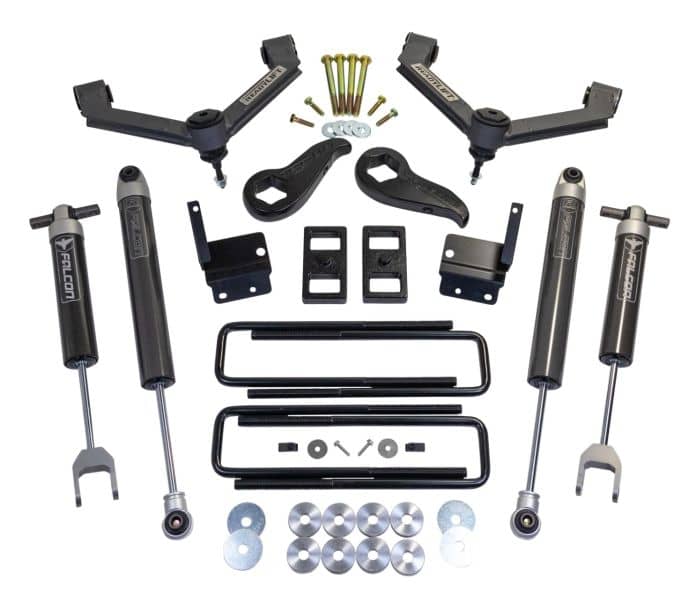

2020-2025 GM HD 3" Lift Kit with Falcon 1.1 Monotube Shocks (69-30320)

ReadyLIFT delivers a performance game changer with the 3 inch SST Lift Kit, which includes Xtreme-Duty fabricated control arms and Falcon 1.1 Monotube shocks. Designed to improve stance, performance, and capability, this kit is a true bolt-on solution that provides a 3 inch front lift with forged torsion keys and a 1 inch rear lift with blocks. The kit features Falcon 1.1 Monotube shocks on all four corners, specifically designed for the GM 2500/3500 to increase suspension travel and allow the vehicle to navigate rough terrain while maintaining smooth on-road comfort. The front lift is coupled with re-engineered Xtreme-Duty fabricated 4130 chromoly steel upper control arms, including all-new heavy-duty high angle ball joints and maintenance-free TCT non-bonded pivot bushings. The kit also includes a front inner fender bracket to increase clearance for larger tires. In the rear, ReadyLIFT provides lift blocks for a lifted, level stance that retains factory load capacity.

Features

• 3 inch Front / 1 inch Rear SST Lift Kit
• Includes front and rear Falcon 1.1 Monotube series shocks
• SST lift-specific Forged Torsion Keys for adjustable front lift
• Xtreme-Duty fabricated 4130 chromoly steel Upper Control Arms with heavy-duty high angle ball joints and TCT maintenance-free pivot bushings
• Front inner fender bracket to increase larger tire clearance
• Rear lift blocks retain factory load capacity for a lifted, level stance
• No Cutting of original equipment manufacturer parts or Welding required
• Allows for up to 35 inch tires

Specs

• Front Lift: 3 inches (Forged Torsion Keys)
• Rear Lift: 1 inch (Lift Blocks)
• Shocks: Falcon 1.1 Monotube Shocks (4 included)
• Control Arms: Xtreme-Duty fabricated 4130 chromoly steel

Compatibility Notes

• Fits GM Silverado / Sierra 2500HD/3500HD models from 2020 to 2025.
• Allows for no-trim 35x12.50 tire on a 20x9 0 offset wheel.
• Maximum tire size with trimming: 35x12.50 on a 20x10 -18 offset wheel.
• Maximum width on stock wheels is 11.5 inches.
• Does not work with AT4X or ZR2 models.

Notes

• When setting the torsion key adjustment bolt, do not exceed 27 inches from the wheel center to the fender edge. Exceeding this will overlift the vehicle, resulting in poor ride quality and premature wear of components.
• Some fender well trim variances may be experienced between Silverado and Sierra models.
• The product is backed by the industry-leading ReadyGuard Warranty.
• The vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
