2020-2025 Superduty 4WD 2.5" Leveling Kit w/ Falcon 2.1 Series Shocks (46-20254)

The ReadyLIFT 2.5-inch Coil Spring Front Lift Kit is a premium leveling suspension system built specifically for Ford Super Duty diesel trucks. This kit provides 2.5 inches of front lift using heavy-duty coil springs and features the high-performance Falcon 2.1 Monotube Series shocks on all four corners, with the rear shocks having an Adjustable Tow/Haul design. This complete bolt-on system is precision-tuned to deliver exceptional ride quality, control, and durability for unmatched on- and off-road performance.

Features

• Provides 2.5 inches of front leveling lift via heavy-duty coil springs.
• Includes four Falcon 2.1 Monotube Shocks, precision-tuned for exceptional ride quality, control, and durability.

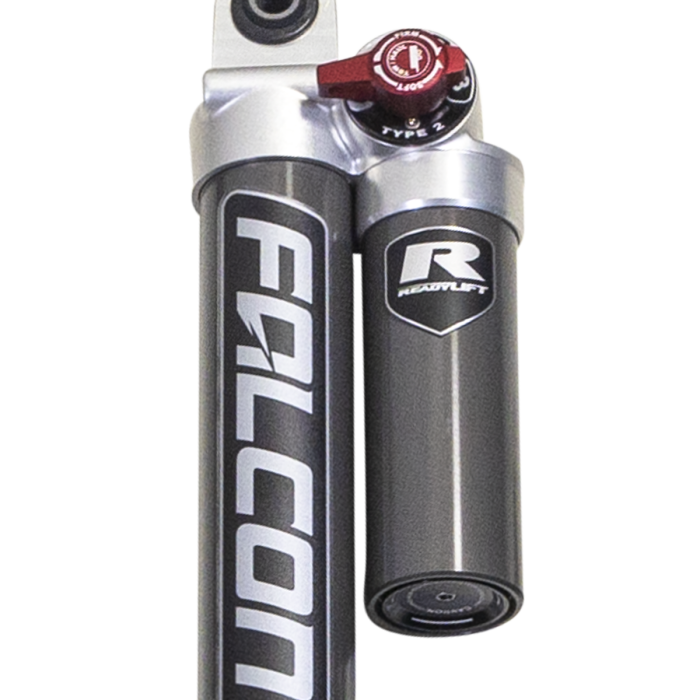

• Rear shocks are the Adjustable Tow/Haul Falcon 2.1 Monotube design.
• Complete bolt-on system with sway bar, bump stop, and brake line extension brackets included.
• Designed to deliver unmatched on-road ride quality and trail-ready toughness.

Notes

• 2023-2025 Tremor models will gain approximately 1.125 inches over stock ride height.
• For trucks with the Onboard Scale option, the Auto-Leveling Headlight Bracket Kit (PN: 67-23210) is required.
• Some 2020-2025 Super Duty trucks may need to retain the factory track bar bracket if the front axle is shifted off center with the provided bracket.

Compatibility Notes

• For use on Diesel Trucks Only.
• Fits DRW (Dually) trucks.
• The spring kits are diesel-specific and are not recommended for gas trucks.

Tire Fitment

• Allows for up to 35-inch tall tires for no rub.
• With minor trimming, fitment is possible for up to 37-inch tall tires.
• Ideal tire/wheel combo is 35x12.50 on a 9 or 10-inch wide wheel with +25 to 0 offset for no rub.

Specs

• Front Lift: 2.5 inches (maximum).
• Maximum Tire Diameter: 37 inches (with trimming).
• Shock Type: Falcon 2.1 Monotube Front / Adjustable Tow/Haul Falcon 2.1 Rear.

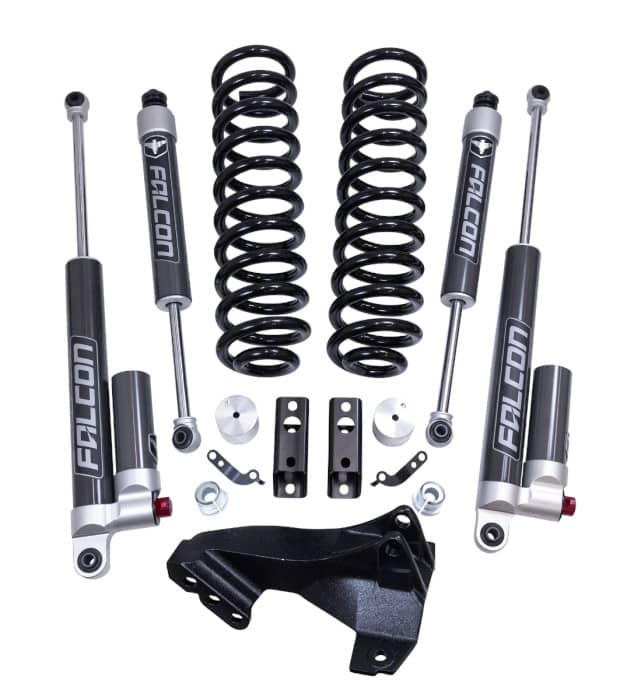

• Kit Contents: 2.5-inch lift front coil springs, Sway bar spacers, Brake line extensions, Front track bar relocation bracket, Front Falcon 2.1 Monotube shocks, and Rear Adjustable Tow Haul Falcon 2.1 Monotube shocks.
