2020-2025 GM HD 6.5" FOX 2.0 Performance Conversion Kit (BDS753FPE)

This BDS 6.5" suspension lift kit transforms your 2020-2025 Chevy Silverado and GMC Sierra 2500 HD with a FOX 2.5 coil-over conversion and clearance for up to 38" tires. It replaces the factory torsion bars and upgrades both upper and lower control arms, the uppers fabricated from 1.5" OD x .120-wall TIG-welded tubing and the lowers built from fully boxed, internally gusseted high-strength steel. BDS's high-clearance design pairs 1/4" steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates with CNC-machined ductile iron steering knuckles to correct steering geometry at ride height.

FOX 2.5 Performance Elite coil-overs come tuned and ready to bolt on, with a remote reservoir for added cooling and Dual Speed Compression Adjust offering 10 low-speed and 12 high-speed settings. The rear uses replacement lift blocks, a u-bolt flip kit for max clearance, and FOX 2.0 Performance shocks.

Features

• FOX 2.5 coil-overs offer improved damper performance over stock
• Dual Speed Compression Adjust adjuster allows easy high-speed and low-speed compression tuning
• Performance UCAs increase strength and allow for more suspension travel
• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6.5 Inch
• Rear Lift Height: 5 Inch

Notes

• Compatible with diesel models ONLY. Works with standard or AT4 diesel models.
• Will NOT work with AT4X or ZR2 models, lower control arm profile is different.
• For DRW models, use the w/ overload rear lift option.
• Requires frame bracket modification.
• Models with two-piece rear drive shafts will require a carrier bearing drop kit (BDS121612).
• Disassembly/assembly of the factory torsion bar system requires a special unloading tool. The GM specified tool # is CH48809.
• Coilover coil has a large amount of preload; a coil spring compressor must be used to remove the coil from the coilover. Failure to use a coil spring compressor may result in death or injury.
• Do not increase coilover preload.
• Factory 17-18" wheels cannot be reinstalled due to tie rod end interference; stock 20" wheels can be reinstalled with up to a 37x12.50 tire.
• Some minor trimming will be required with certain wheel/tire combinations, normally the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. Deeper backspacing and shorter/narrower tires will reduce or eliminate trimming.
• Vehicles used in 4WD on the highway regularly could experience a minor front driveline vibration; if this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.

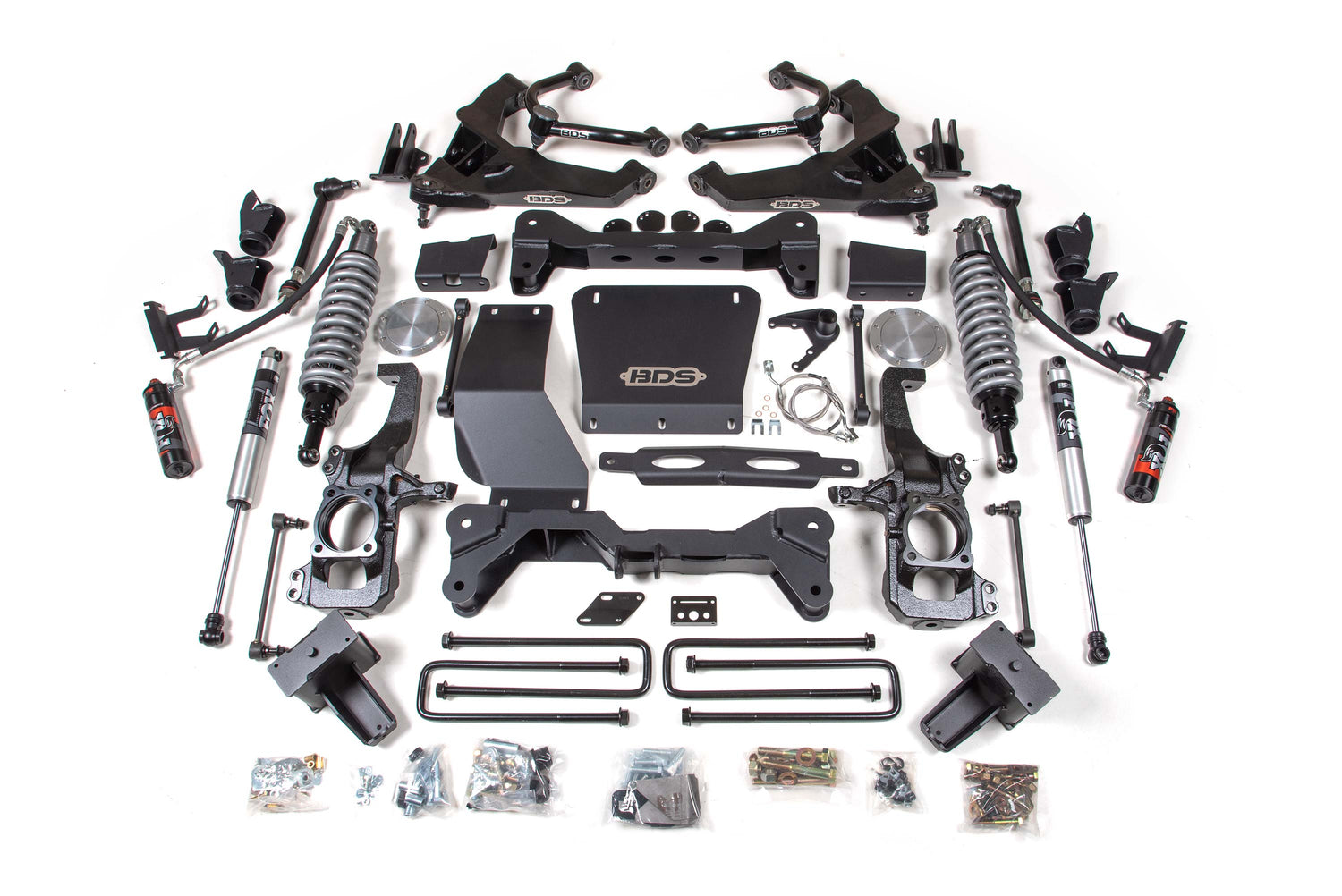

Includes

• BDS011516, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 6.5 Inch Rear Box Kit w/o Overloads (UPC 658848611911)
• BDS021303, 2020-2024 GM HD LCA Kit - Drv (UPC 711745611894)
• BDS021304, 2020-2024 GM HD LCA Kit - Pass (UPC 711745611900)
• BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Drv (UPC 658848615179)
• BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Pass (UPC 658848615186)
• BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 1of2 (UPC 658848615193)
• BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 2of2 (UPC 658848615209)
• BDS121301, 2020-2024 GM HD Coil Over Conversion UCA Kit (UPC 711745612051)
• BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Skid Plate Box Kit (UPC 658848619276)
• BDS121663, 2020-2024 GM HD Coil Over Conversion Kit - 6.5 Inch (UPC 711745612099)
• FOX88406339, Kit: 20+ GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 Inch Lift, Dual Speed Compression Adjust
• FOX98224767, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
