2020-2025 GM HD 6.5" FOX 2.5 Performance Elite Conversion Kit (BDS792FPE)

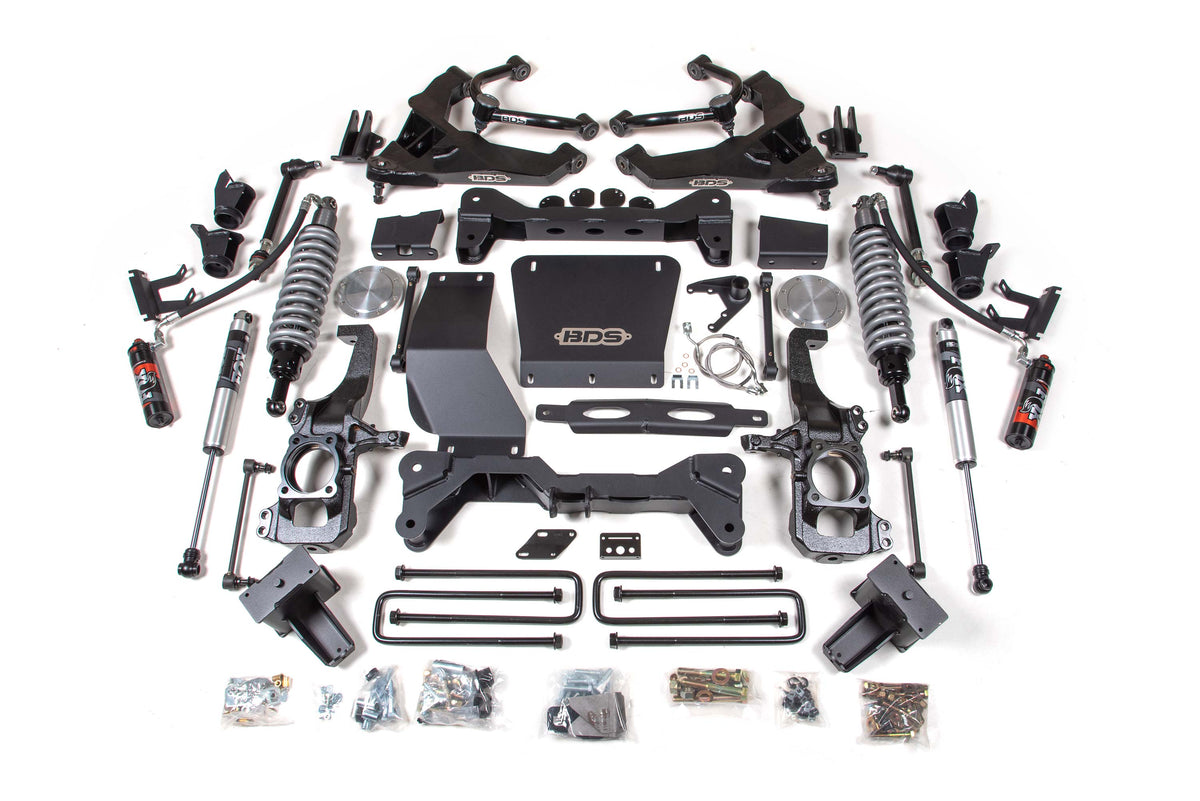

Step up your 2020-2024 Chevy Silverado and GMC Sierra 2500 HD with this BDS 6.5" suspension lift kit with FOX 2.5 coil-over conversion, with clearance for up to 38" tires. It replaces the factory torsion bars and upgrades to fully TIG-welded 1.5" OD x .120-wall tubular upper control arms and fully boxed, internally gusseted lower arms. Up front are the FOX 2.5 coil-overs, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates, CNC-machined ductile iron steering knuckles, sway bar links, bump stop extensions, stainless brake lines and CV spacers. The rear uses replacement lift blocks, a u-bolt flip kit and FOX 2.0 Performance Series shocks. The DSC adjuster offers 10 low-speed and 12 high-speed compression levels.

Features

• FOX 2.5 coil-overs offer improved damper performance over stock
• DSC adjuster allows easy high-speed and low-speed compression tuning
• Performance UCAs increase strength and allow for more suspension travel
• High clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6.5 Inch
• Rear Lift Height: 5 Inch

Notes

• Models with two-piece rear driveshafts will require a carrier bearing drop kit (BDS121612).
• Requires frame bracket modification.
• Disassembly/assembly of the factory torsion bar system requires a special unloading tool; the GM specified tool is CH48809.
• Compatible with diesel models ONLY. Works with standard or AT4 diesel models.
• Some minor trim will be required with certain wheel/tire combinations (inner fender shrouds and/or lower corner of front bumper valance). Deeper backspacing and shorter/narrower tires reduce trimming.
• Factory 17-18" wheels cannot be reinstalled due to tie rod end interference; stock 20" wheels can be reinstalled with up to a 37x12.50 tire.
• Vehicles regularly used in 4WD on the highway could experience a minor front driveline vibration; if so, replace the front driveshaft with a dual Cardan style driveshaft.
• Coilover coil has a large amount of preload; a coil spring compressor must be used to remove the coil. Failure to use one may result in death or injury.
• Do not increase coilover preload.
• For DRW models, use the w/ overload rear lift option.
• Will NOT work with AT4X or ZR2 models; lower control arm profile is different.

Includes

• BDS011516, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 6.5 Inch Rear Box Kit w/o Overloads (UPC 658848611911)
• BDS021303, 2020-2024 GM HD LCA Kit - Drv (UPC 711745611894)
• BDS021304, 2020-2024 GM HD LCA Kit - Pass (UPC 711745611900)
• BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Drv (UPC 658848615179)
• BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Pass (UPC 658848615186)
• BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 1of2 (UPC 658848615193)
• BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 2of2 (UPC 658848615209)
• BDS121301, 2020-2024 GM HD Coil Over Conversion UCA Kit (UPC 711745612051)
• BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Skid Plate Box Kit (UPC 658848619276)
• BDS121663, 2020-2024 GM HD Coil Over Conversion Kit - 6.5 Inch (UPC 711745612099)
• FOX88406339, Kit: 20+ GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 Inch Lift, Dual Speed Compression Adjust
• FOX88426031, Kit: BDS 20-ON GM 2500/3500 Rear, 2.5 Truck Fox Performance Elite Series, P/B, 6.5 Inch Lift, Dual Speed Compression Adjust
