2020-2025 GM HD 6.5" Lift Kit with NX2 Nitro Shocks (BDS753H)

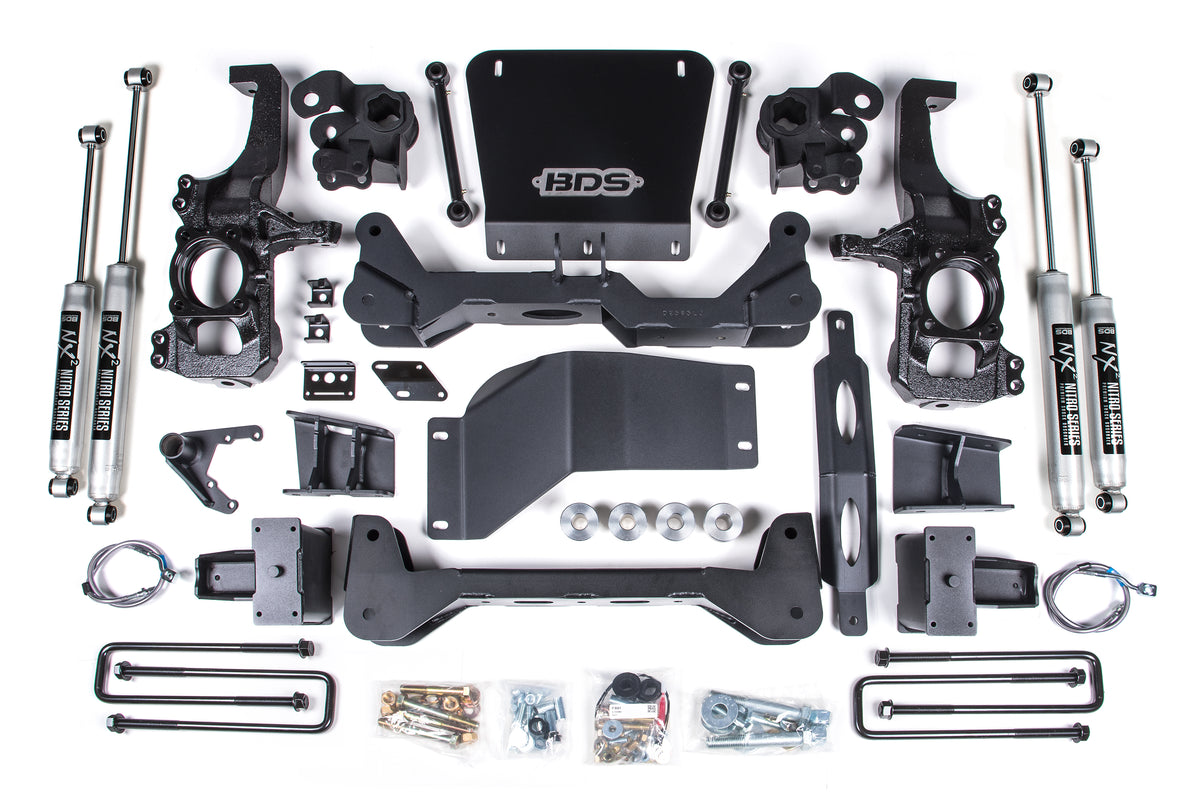

This BDS 6.5" lift kit takes your 2020-2025 Chevy Silverado / GMC Sierra 2500 HD 4WD to the next level, with clearance for up to 38" tires. BDS uses a No Torsion Bar Drop System, mounting the torsion bars to the top of the lower a-arm to maximize ground clearance. Up front it runs torsion bar relocation brackets, high-arched 1/4" steel crossmembers, multipiece differential relocation brackets, HD skid plates and CNC-machined ductile iron steering knuckles, plus sway bar drops and stainless brake lines. The rear uses replacement lift blocks, u-bolts, and brake line and ABS line relocation brackets to retain the factory lines. This kit ships with NX2 Nitro shocks: nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving.

Features

• High clearance design with no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets secure the front axle and improve CV angles
• Brake line and ABS line relocation brackets allow use of factory lines
• Factory Protection Plus drivetrain warranty included
• Choice of NX2, FOX 2.0 or FOX 2.5 gas shocks for improved performance
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6.5 Inch
• Rear Lift Height: 5 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 38x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.625/6.18

Notes

• For DRW models, use the w/ overload rear lift option.
• Requires frame bracket modification.
• Torsion bar tool required to load/unload torsion bars; the GM-specified tool is #CH48809.
• Models with two-piece rear driveshafts will require a carrier bearing drop kit.
• Factory 17-18 inch wheels cannot be reinstalled due to tie rod end interference; stock 20 inch wheels can be reinstalled with up to a 35x12.50 tire.
• Vehicles regularly used in 4WD on the highway could experience a minor front driveline vibration; if so, replace the front driveshaft with a dual Cardan style driveshaft.
• Do not install this system in conjunction with any type of torsion bar lift keys to achieve more than the tested 6.5 inch lift height.
• Some minor trim will be required with certain wheel/tire combinations (typically the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance). Deeper backspacing and shorter/narrower tires reduce trimming.

Includes

• BDS011516, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 6.5 Inch Rear Box Kit w/o Overloads (UPC 658848611911)
• BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Drv (UPC 658848615179)
• BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Pass (UPC 658848615186)
• BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 1of2 (UPC 658848615193)
• BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 2of2 (UPC 658848615209)
• BDS021694, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 6.5 Inch Box Kit (UPC 658848615216)
• BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Skid Plate Box Kit (UPC 658848619276)
• BDS85621, Shock - 21.41 x 13.59 x 2-3/8 EB1 / EB1 (UPC 711745609419)
• BDS85769, Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1 (UPC 711745609761)
