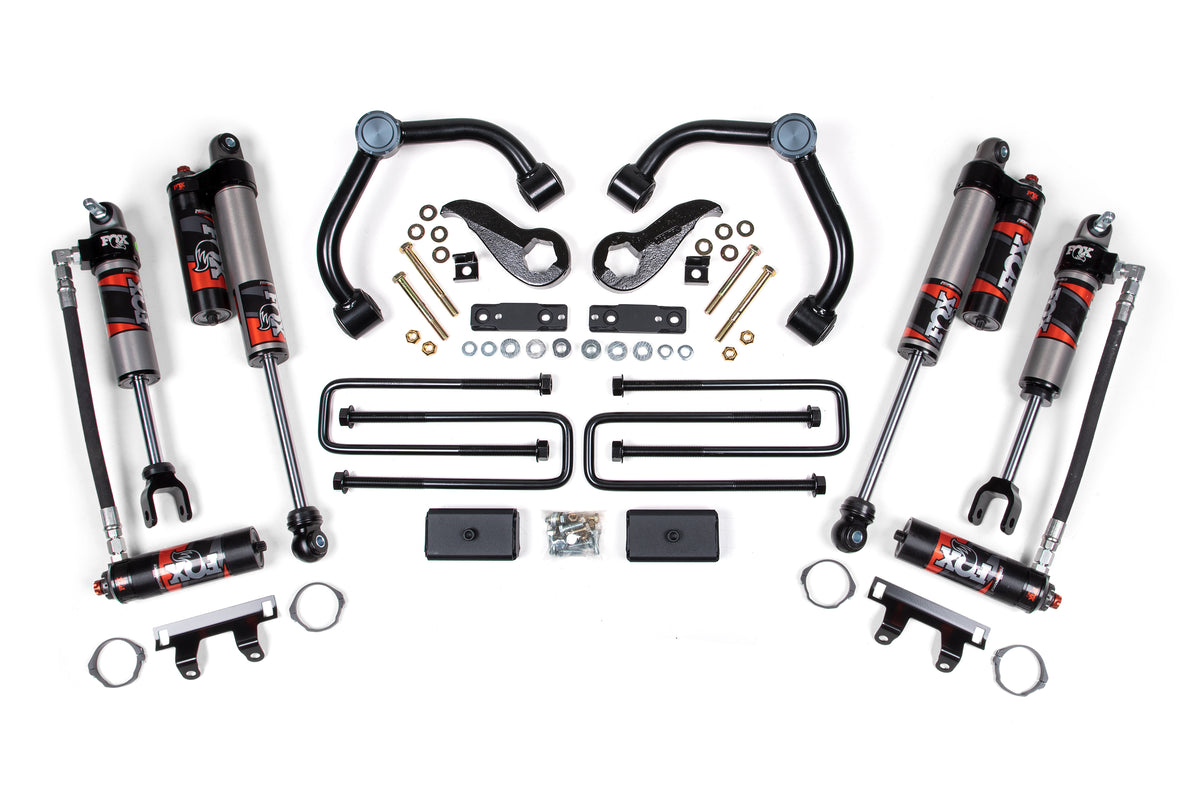

2020-2025 GM HD 3" Lift Kit (BDS761FPE)

This BDS 3" lift kit ups the ante on your 2020-2025 Chevy Silverado / GMC Sierra 2500 HD 4WD with FOX 2.5 Performance Elite shocks, with clearance for up to 35" tires. Up front it includes FOX 2.5 Performance Elite reservoir shocks, heavy duty tubular upper control arms, a pair of indexed cast steel torsion bar keys for lift, a small differential relocation kit to correct CV axle angles, and sway bar relocation brackets. The rear uses a 2" block and u-bolt kit for a level to slightly tail-high unloaded stance, plus a matching pair of FOX 2.5 Performance Elite reservoir shocks. The race-proven shocks feature a Dual Speed Compression adjuster offering 10 low-speed and 12 high-speed compression levels.

Features

• FOX 2.5 Performance Elite reservoir shocks with Dual Speed Compression adjustable reservoir
• Aluminum body for faster heat dispersion
• Performance UCAs increase strength and allow for more suspension travel
• High-strength indexed cast torsion bar keys provide additional ride height
• Sway bar relocation for proper clearance
• Differential relocation to improve CV operating angle
• Rear block and u-bolt kit provides lift while maintaining spring function and load capacity

Specs

• Front Lift Method: Torsion Key
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 295/60, 285/65
• Wheel Diameter: 20x9
• Back Spacing: 5.75/6.18

Notes

• Disassembly/assembly of the factory torsion bar system requires the GM-specified unloading tool #CH48809.
• Some minor trimming may be necessary for certain wheel/tire combinations (typically the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance). Deeper backspacing and shorter/narrower tires reduce trimming.
• Rear lift option: 3 inch block kit with Overload available.
• Determine if your truck was built with or without top-mounted overload springs on the rear leaf springs before selecting the rear option.

Includes

• BDS011217, 2011-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 2 inch Rear Block w/ Overload (UPC 658848611706)
• BDS011310, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 3 inch Box Kit (UPC 658848611720)
• FOX88326084, Kit: 20-ON GM 2500/3500 w/ UCA, Front, 2.5 Truck Fox Performance Elite Series, R/R, 5.7 inch, 1.5-2.5 inch Lift, Dual Speed Compression Adjust (UPC 711745591325)
• FOX88326085, Kit: 20-ON GM 2500/3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 10.17 inch, 0-1 Inch Lift, Dual Speed Compression Adjust (UPC 711745591332)
