2020-2025 GM HD 5" Lift Kit with FOX 2.0 Performance Shocks (BDS766FS)

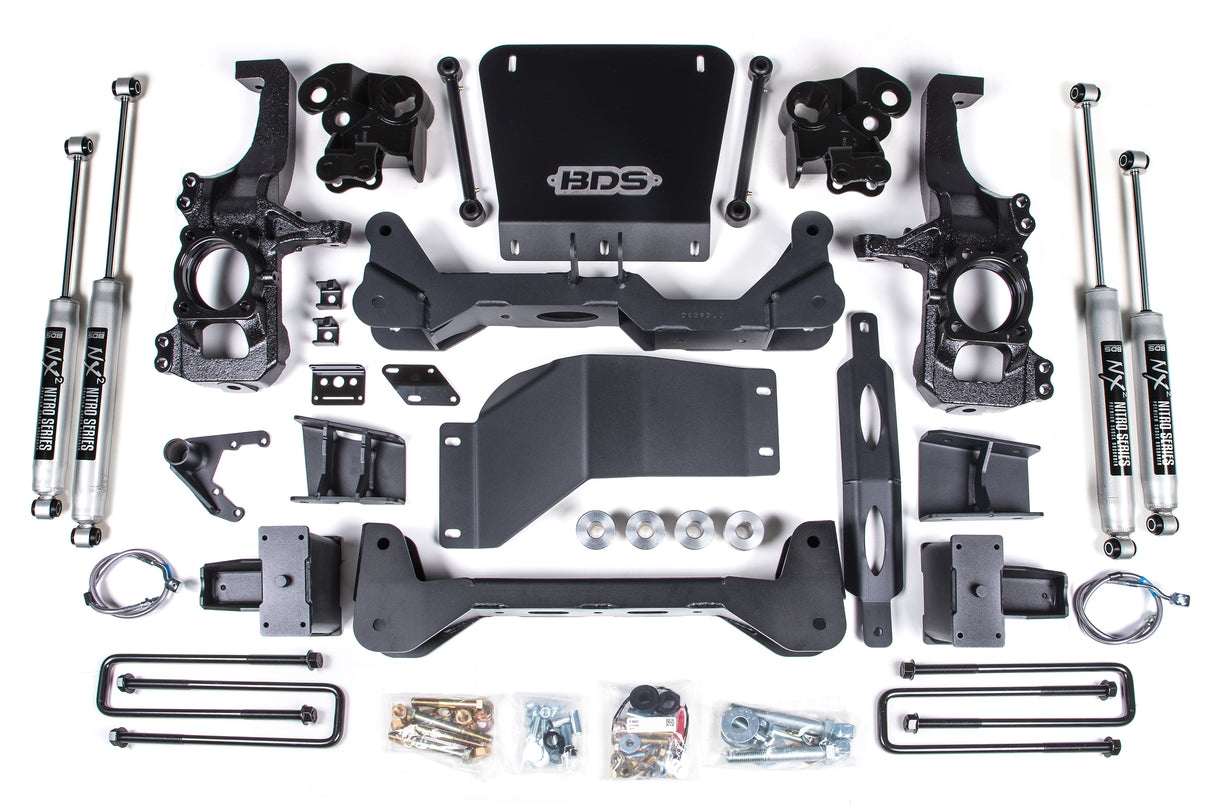

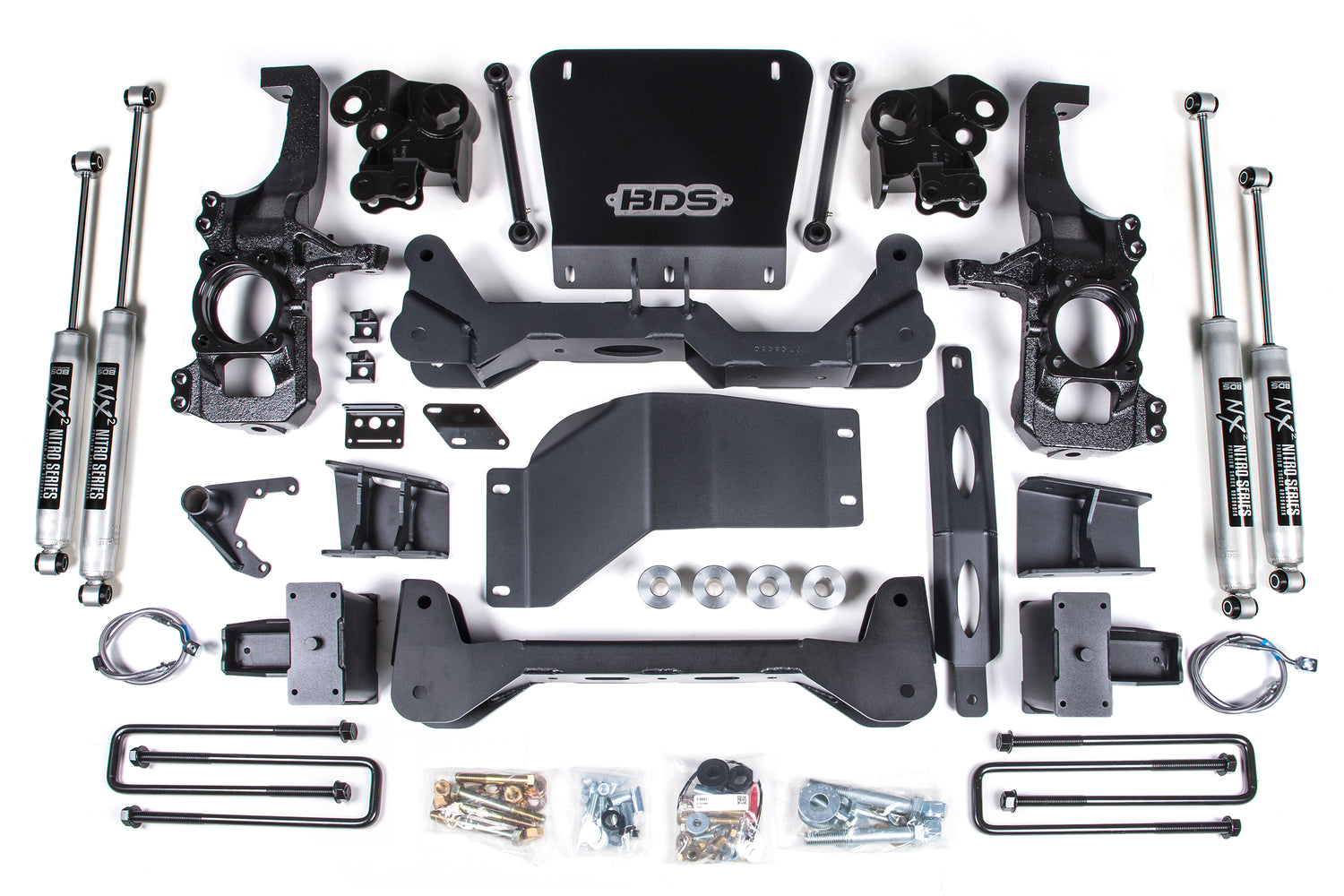

Take your 2020-2025 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level with this BDS 5" lift kit, with clearance for up to 37" tires. BDS uses a No Torsion Bar Drop System, mounting the torsion bars directly to the top of the lower a-arm to maximize ground clearance. The high-clearance front pairs torsion bar relocation brackets, 1/4" steel crossmembers, multipiece differential relocation brackets, heavy duty skid plates, and CNC-machined ductile iron steering knuckles with sway bar drops and stainless steel brake lines. The rear uses replacement lift blocks and u-bolts plus brake and ABS line relocation brackets, finished with a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Choice of NX2, FOX 2.0 or FOX 2.5 gas shocks for improved performance
• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX 2.0 shock: 2" Impact extruded aluminum body, IFP monotube design, 6061-T6 mounting ends, 5/8" hard chrome shaft, application-specific valving, clear anodized finish
• Factory Protection Plus drivetrain warranty included

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5, 37x12.5
• Wheel Diameter: 20x10, 20x9
• Back Spacing: 5.5/5.5

Notes

• Will NOT work with AT4X or ZR2 models, lower control arm profile is different.
• Requires frame bracket modification.
• Torsion bar tool required to load/unload torsion bars; the GM specified tool is CH48809.
• Models with two-piece rear driveshafts will require a carrier bearing drop kit.
• Factory 17-18" wheels cannot be reinstalled due to tie rod end interference; stock 20" wheels can be reinstalled with up to a 35x12.50 tire.
• Some minor trimming will be required with certain wheel/tire combinations, normally the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. Deeper backspacing and shorter/narrower tires will reduce or eliminate trimming.
• Vehicles used in 4WD on the highway regularly could experience a minor front driveline vibration; if this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

Includes

• BDS011416, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Rear Box Kit - w/o Overloads (UPC 658848611829)
• BDS021505, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch Box Kit (UPC 658848614714)
• BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Drv (UPC 658848615179)
• BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Knuckle Box Kit - Pass (UPC 658848615186)
• BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 1of2 (UPC 658848615193)
• BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Front Box Kit 2of2 (UPC 658848615209)
• BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 inch-6.5 inch Skid Plate Box Kit (UPC 658848619276)
• FOX98224621, Fox 2.0 Shock 21.47 x 14.60 x 2 - EB1/EB1
• FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
