2020-2025 GM HD 6.5" Lift Kit with FOX 2.0 Performance Shocks (BDS753FS)

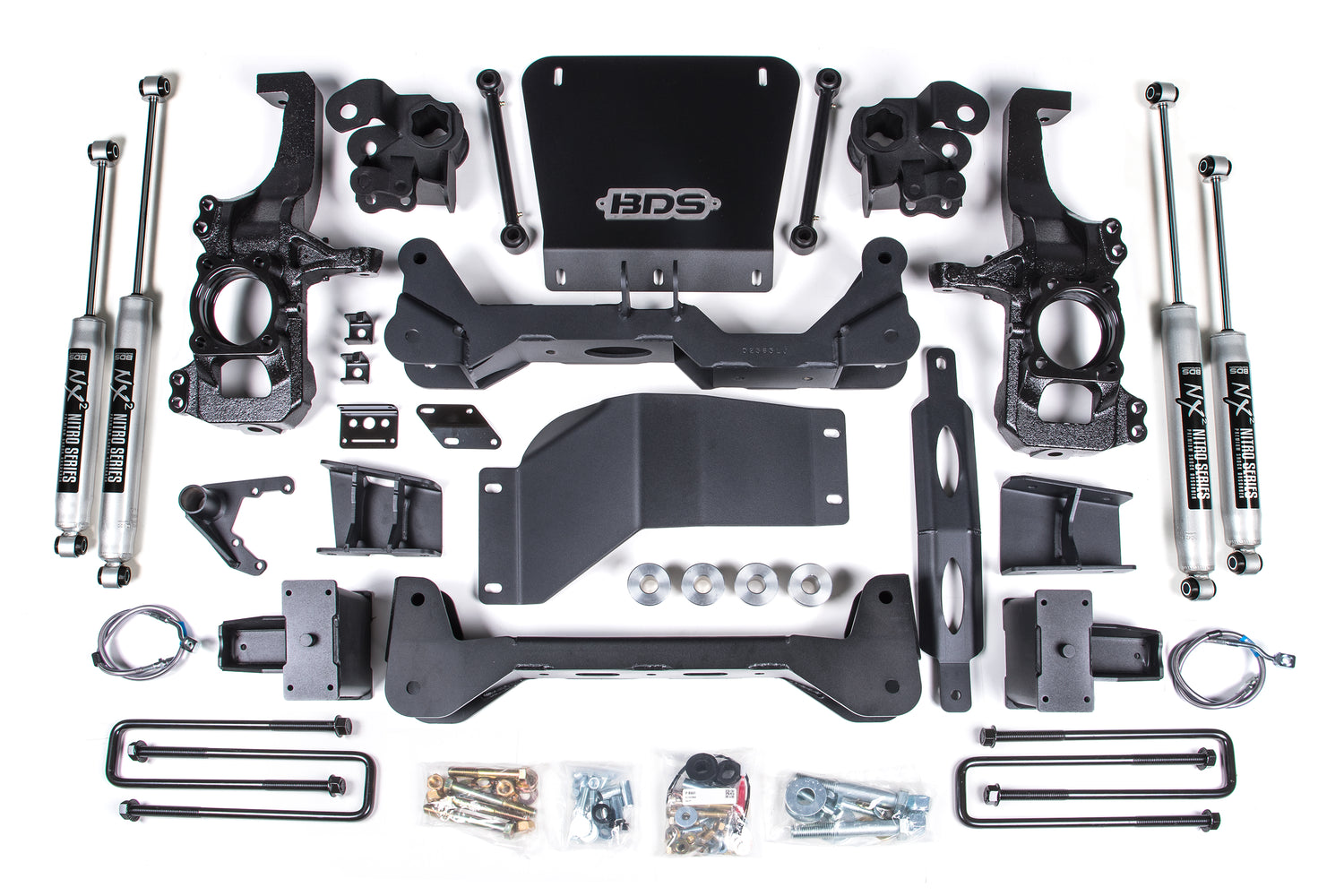

Take your 2020-2024 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level with this BDS 6.5" lift kit, with clearance for up to 38" tires. For maximum ground clearance, BDS uses a No Torsion Bar Drop System mounting the torsion bars directly to the top of the lower a-arm. Up front it uses torsion bar relocation brackets, 1/4" thick high-arched steel crossmembers, multipiece differential relocation brackets, and heavy duty skid plates, with CNC-machined ductile iron steering knuckles, sway bar drops, and stainless steel brake lines. The rear uses replacement lift blocks and u-bolts that retain ride quality and load capacity, brake line and ABS line relocation brackets, and a matching set of NX2 Nitro or FOX 2.0 Performance Series shocks.

Features

• High clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improves offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2, FOX 2.0 or FOX 2.5 gas shocks for improved performance
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6.5 Inch
• Rear Lift Height: 5 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 38x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.625/6.18

Notes

• For DRW models, use the w/ overload rear lift option.
• Requires frame bracket modification.
• Torsion Bar Tool required to load/unload torsion bars. The GM specified tool is #CH48809.
• Models with two-piece rear driveshafts will require a carrier bearing drop kit.
• Factory 17-18 inch wheels cannot be reinstalled due to tie rod end interference; stock 20 inch wheels can be reinstalled with up to a 35x12.50 tire.
• In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs, BDS recommends replacing the front driveshaft with a dual Cardan style driveshaft.
• Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieve more than the tested 6.5 inch lift height.
• Some minor trimming will be required with certain wheel/tire combinations (bottom edge of the inner fender shrouds and/or lower corner of front bumper valance). Deeper backspacing and shorter/narrower tires will reduce or eliminate trimming.

Includes

• BDS011516, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 6.5 Inch Rear Box Kit w/o Overloads (UPC 658848611911)
• BDS021690, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Drv (UPC 658848615179)
• BDS021691, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Knuckle Box Kit - Pass (UPC 658848615186)
• BDS021692, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 1of2 (UPC 658848615193)
• BDS021693, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Front Box Kit 2of2 (UPC 658848615209)
• BDS021694, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 6.5 Inch Box Kit (UPC 658848615216)
• BDS121661, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 5 Inch-6.5 Inch Skid Plate Box Kit (UPC 658848619276)
• FOX98224621, Fox 2.0 Shock 21.47 x 14.60 x 2 - EB1/EB1
• FOX98224767, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
