2020-2025 GM HD 3" Lift Kit with FOX 2.0 Performance Shocks (BDS761FS)

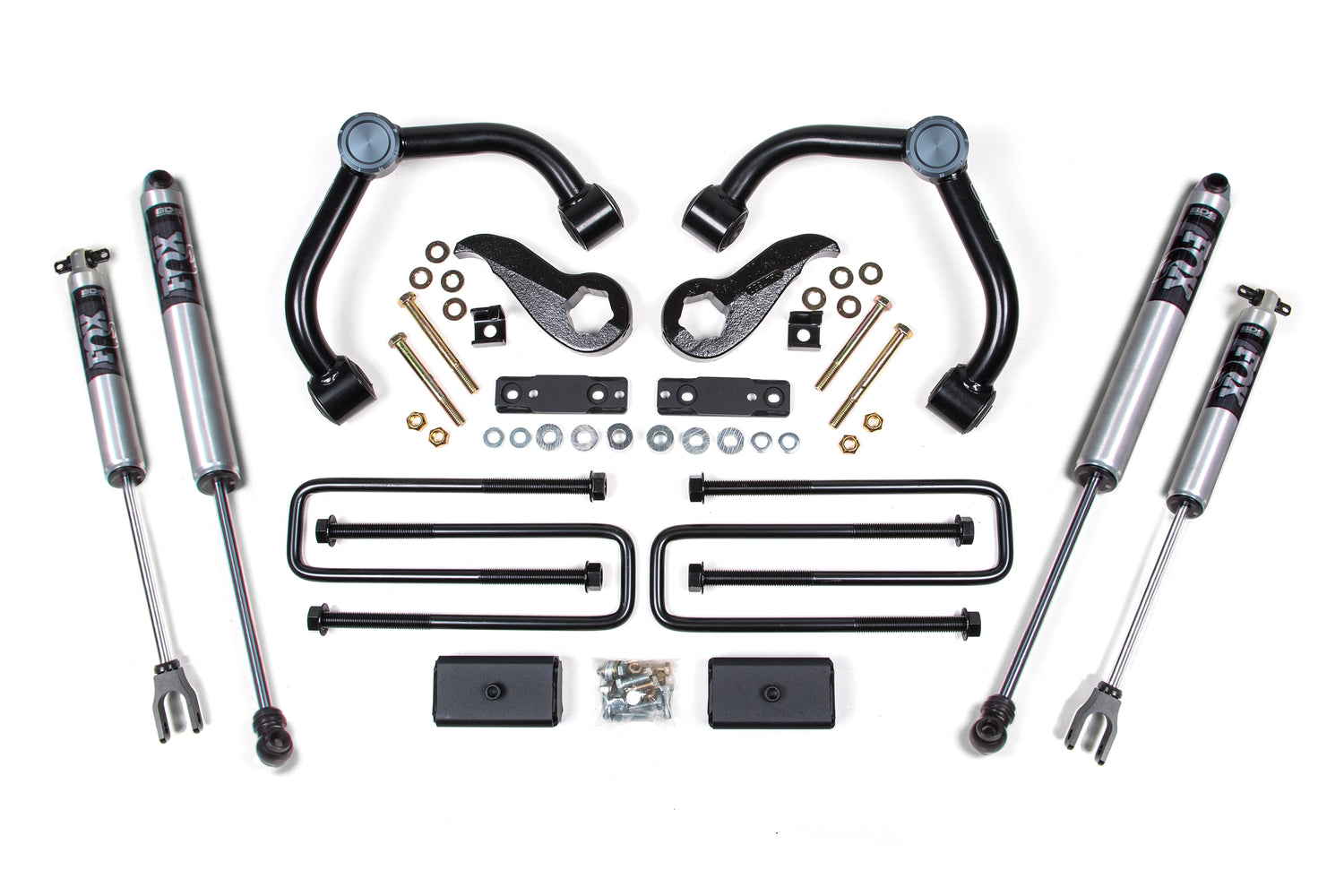

Level out your 2020-2025 Chevy Silverado and GMC Sierra 2500 HD 4WD with this BDS 3" leveling lift kit, with clearance for up to 35" tires. Up front it includes FOX 2.0 Performance Series IFP shocks and heavy duty tubular upper control arms, indexed cast steel torsion bar keys to lift the vehicle, a small differential relocation kit to correct CV angles without losing ground clearance, and sway bar relocation brackets. The rear uses a 2" block and u-bolt kit for a level to slightly tail-high stance with a matching pair of FOX 2.0 Performance Series IFP shocks. The monotube shocks use a 2.0" machined 6061-T6 aluminum body and 5/8" hard chrome shaft with application-specific valving.

Features

• FOX 2.0 Performance Series shocks offer improved performance and damper capacity
• Performance UCAs increase strength and allow for more suspension travel
• High strength cast torsion bar keys use an indexed design to provide additional ride height
• Sway bar relocation for proper clearance
• Differential relocation to improve CV operating angle
• Rear block and u-bolt kit provides lift while maintaining spring function and load capacity

Specs

• Front Lift Method: Torsion Key
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 295/60, 285/65
• Wheel Diameter: 20x9
• Back Spacing: 5.75/6.18

Notes

• Disassembly/assembly of the factory torsion bar system requires a special unloading tool. The GM specified tool is CH48809.
• Some minor trimming may be necessary with certain wheel/tire combinations, typically the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. Deeper backspacing and shorter/narrower tires will reduce or eliminate trimming.
• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

Includes

• BDS011217, 2011-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 2 inch Rear Block w/ Overload (UPC 658848611706)
• BDS011310, 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 3 inch Box Kit (UPC 658848611720)
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
• FOX98524240, 20-ON GM 2500/3500 HD Front w/UCA, PS, 2.0, Internal Floating Piston, 5.6 inch, 1.5-2.5 inch Lift (UPC 711745591240)
