2020-2026 Transit Adjustable High Clearance Lower Control Arms (1055)

Ford built the Transit front end for fleet duty, which means almost no alignment adjustment beyond toe, a real problem once you add a lift and bigger tires. The Van Compass adjustable lower control arm fixes that oversight with a simple cam-bolt system that lets you set camber into spec easily on either side. Taking a cue from high-end off-road race cars, the arm is also shaped to tuck up high into the chassis for better clearance, all without the noise and harshness of race-car rod ends.

Features

• Cam-bolt adjustment dials camber into specification on either side for better performance and tire life
• Clamped on two axes by pinch bolts with a precision cam to hold the alignment

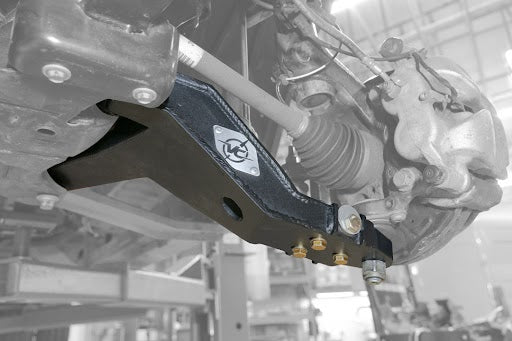

• High-clearance shape tucks the arm up into the chassis
• Made from laser-cut, precision-bent steel, welded on a fixture in-house

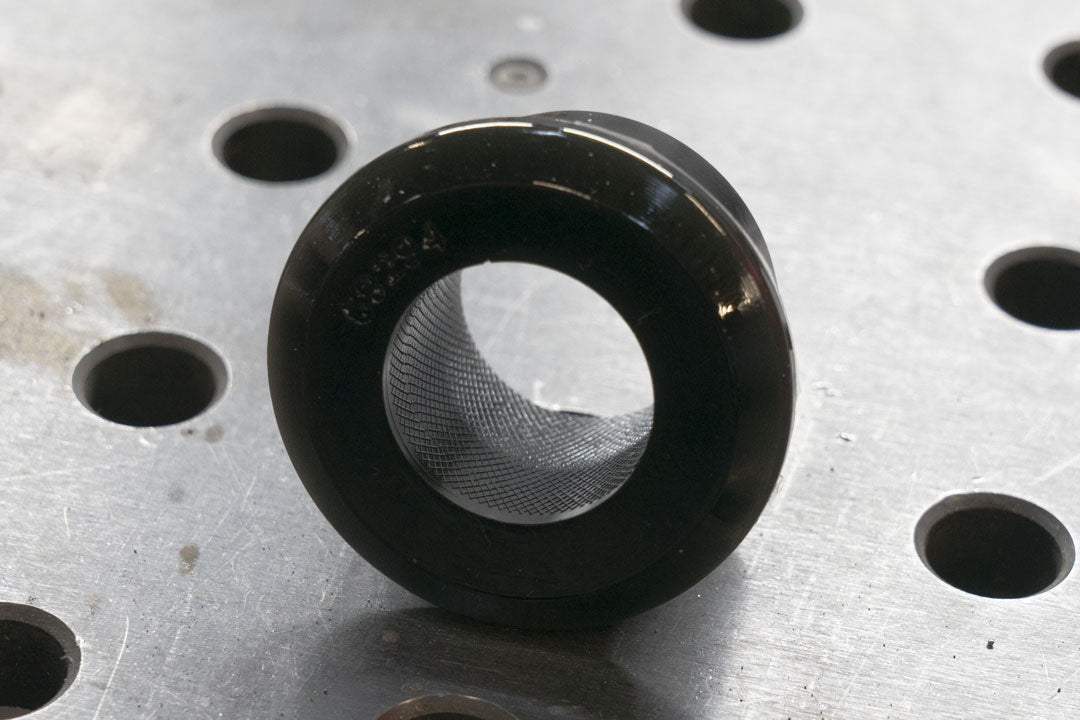

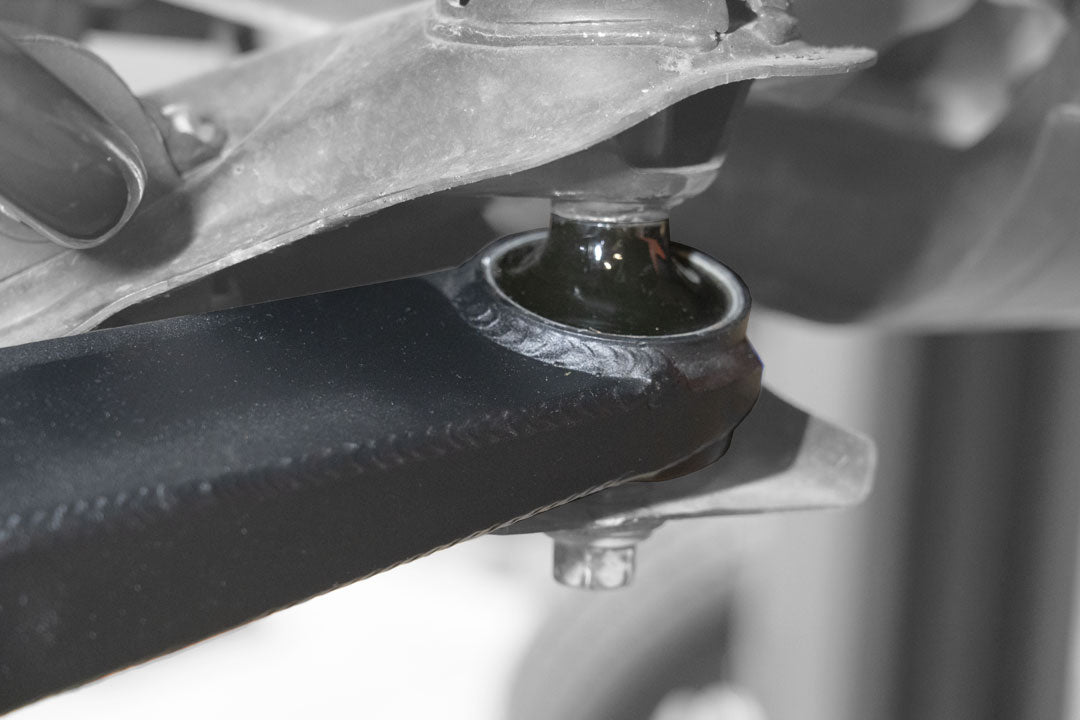

• High-quality polyurethane bushings (not rod ends) isolate the cabin from clunks, pops, and harshness while allowing full travel
• Powder-coated for corrosion resistance

Included Components

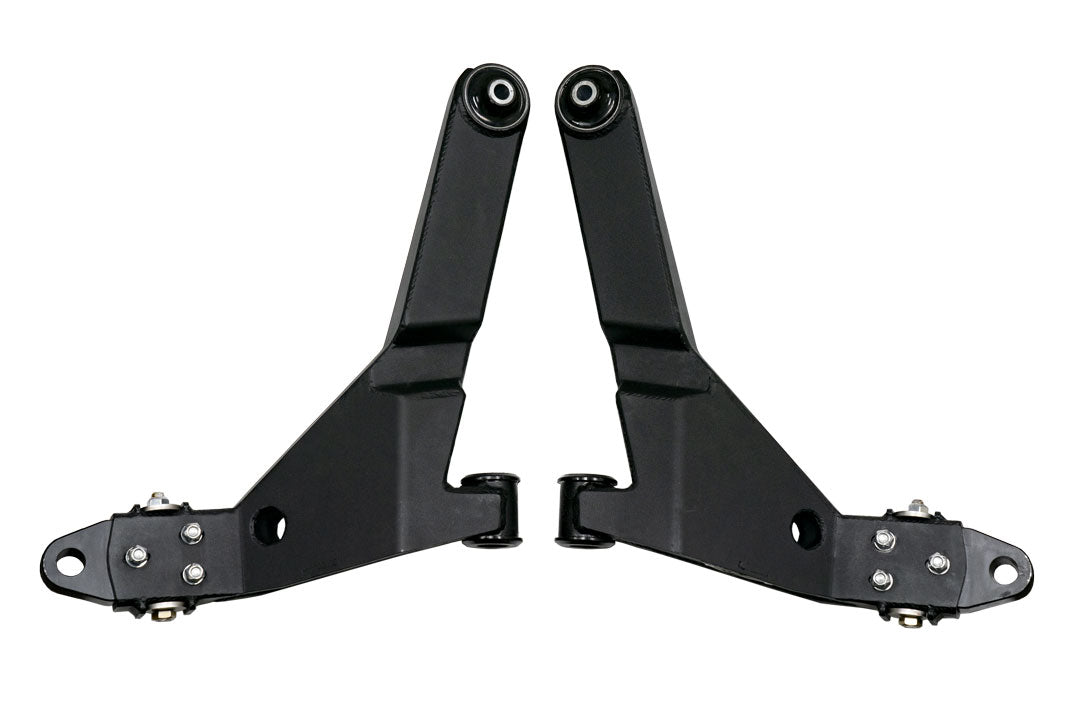

• Left and Right High Clearance Lower control arms
• Lower control arm bushings
• Hardware

Important Notes

• Requires 2" TOPO Lift Kit

Labor Time

Recommended shop labor time: 7 hours.

Specifications

• Color: Black
• Material: Steel
• Finish: Powder Coated
• Grade: Performance
