2020-2022 Superduty 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1564FS)

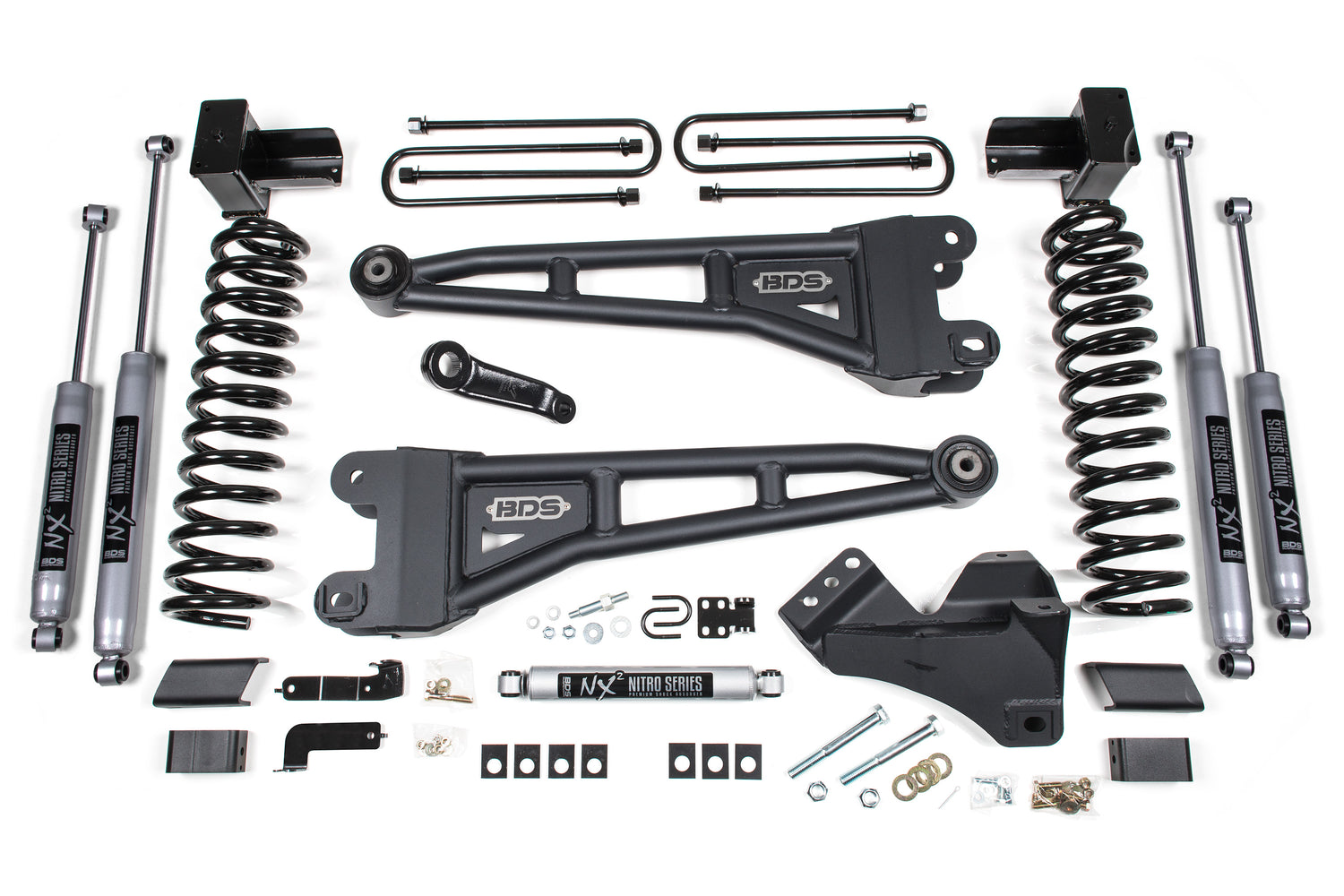

BDS 4" radius arm lift kit for Ford F350 Dually Super Duty gas trucks, with clearance for up to 37" tires. Up front are gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms that correct caster, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and nitrogen charged shocks. The rear uses a fabricated lift block, longer u-bolts, brake line brackets, and NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide a level stance front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Removal of the factory leaf spring block is required. Net rear lift varies with the factory block height but results in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• Front exhaust modification may be required to clear the front driveshaft (gas only)
• Torque wrench capable of 405 ft-lbs required
• 37x12.50 tires may require minor trimming

Includes

• BDS013317, 2020-2022 Ford F-250/F-350 3In Rear Box Kit (UPC 658848613281)
• BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit (UPC 658848613458)
• BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit (UPC 658848616534)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
