2020-2022 Superduty 4" Lift Kit with NX2 Nitro Shocks (BDS1563H)

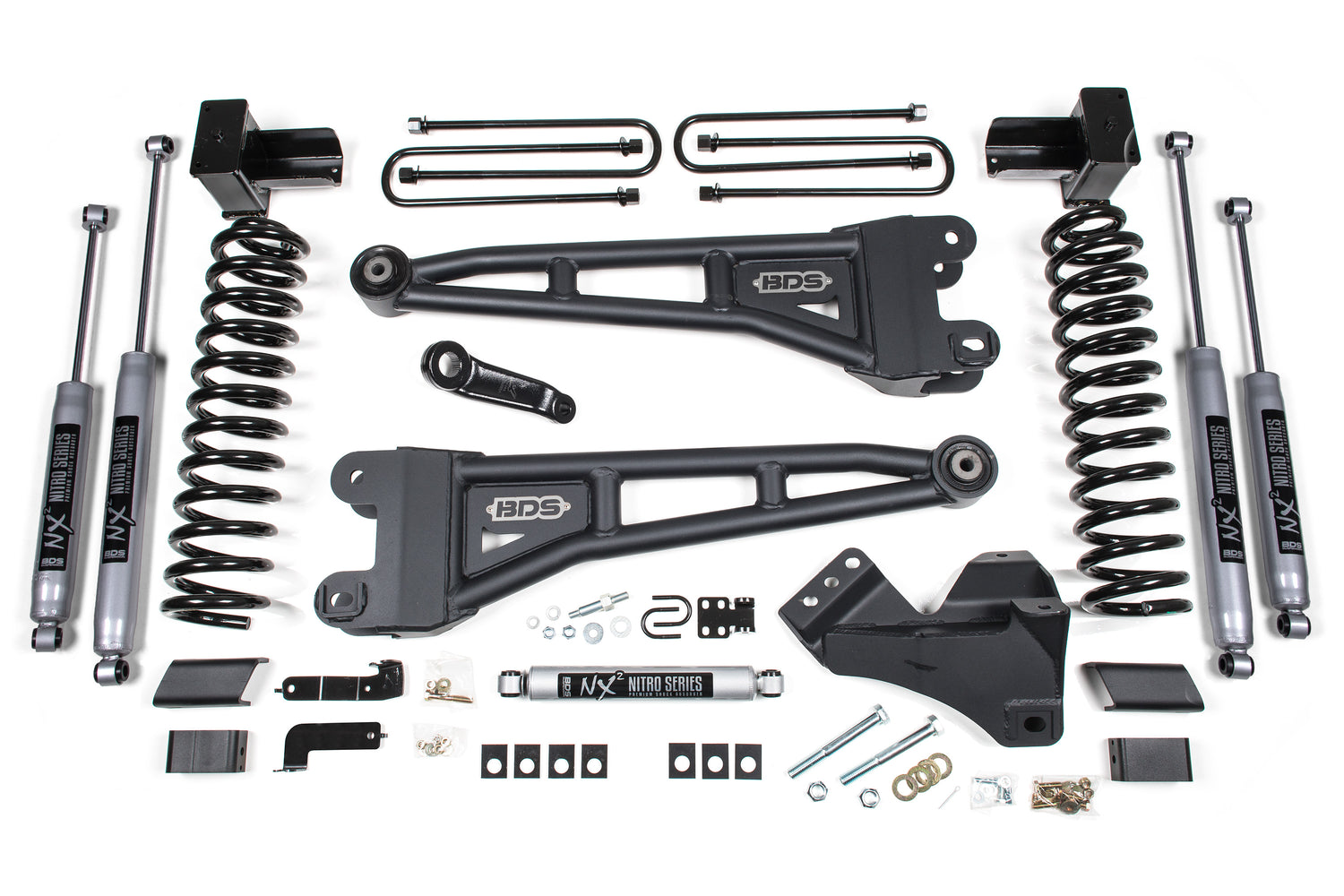

Improve the ride on your Ford F350 Dually Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37 inch Tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• Torque wrench capable of 405 ft-lbs required.
• 37 x 12.50 Tires may require minor trimming.

Includes

• BDS013317, 2020-2022 Ford F-250/F-350 3In Rear Box Kit (UPC 658848613281)
• BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit (UPC 658848613458)
• BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel (UPC 658848616527)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 (UPC 711745609495)
• BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609563)
