2020-2022 Superduty 7" Lift Kit with FOX 2.0 Performance Shocks (BDS1573FS)

BDS 7" radius arm lift kit for Ford F350 Dually (DRW) Super Duty diesel trucks, with clearance for up to 38" tires. Up front are diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms that correct caster, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and nitrogen charged shocks. At this height the transfer case is indexed for use of the factory front driveshaft, so an ARP-stud indexing ring and a high-clearance transmission crossmember are supplied. The rear uses a fabricated lift block, longer u-bolts, brake line brackets, and NX2 Nitro or FOX Performance shocks.

Features

• 100 percent bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide a level stance front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving
• Upgrade to FOX 2.0 Performance Series shocks for max on- and off-road performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 5 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 38x13.5
• Wheel Diameter: 20x10
• Back Spacing: 5

Notes

• Due to taller factory ride height, Tremor models will not net the full advertised lift; final height matches standard models
• Dually models only
• The transfer case indexing ring will not fit 6.2L vehicles with the 6R100 transmission
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• 38x13.50 tires may require minor trimming
• The indexing ring is not designed for manual shift transfer case models; modification of the shift cable mount is required

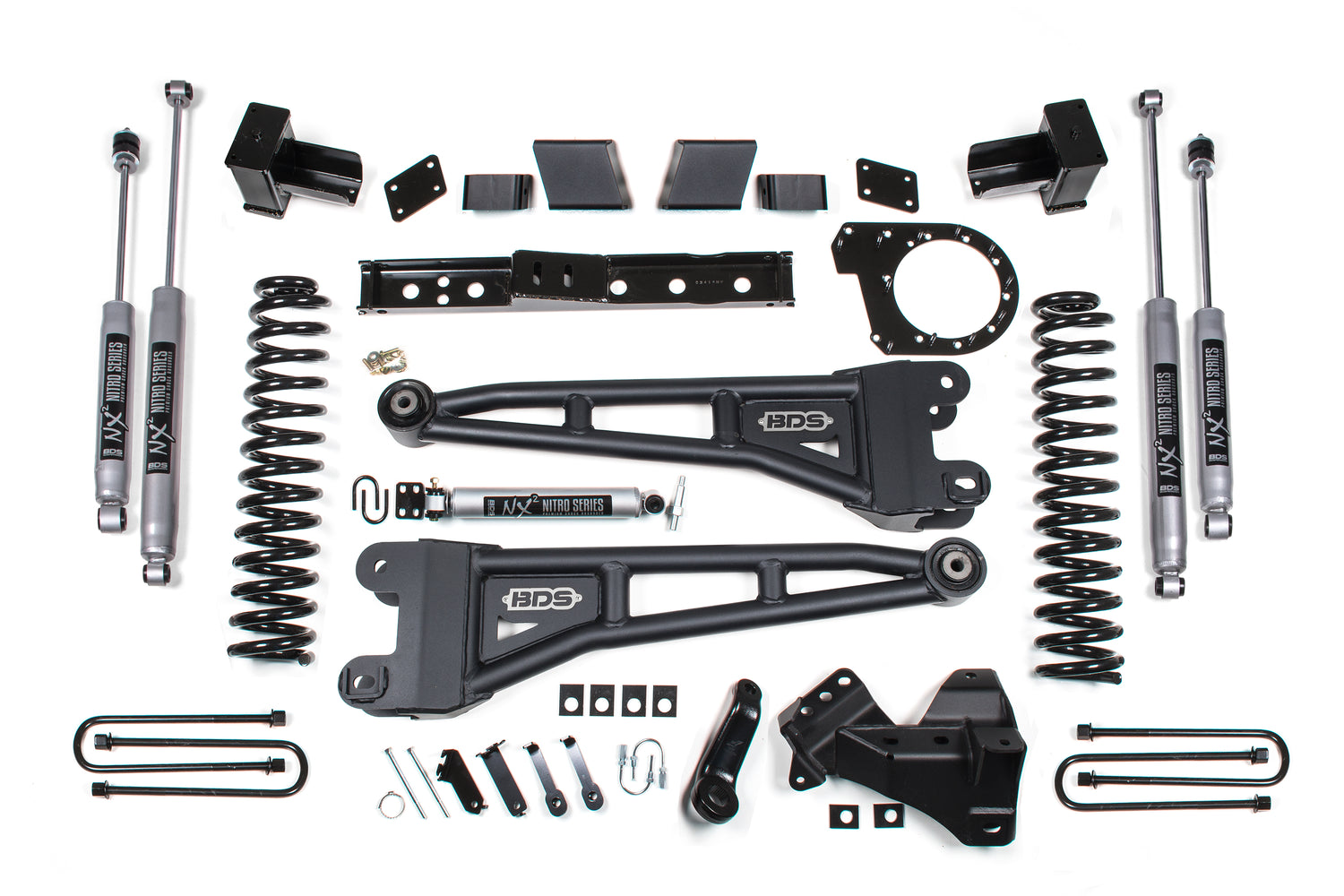

Includes

• BDS013526, 2017-2020 F350 Dually 5 Inch Block Kit (UPC 658848613632)
• BDS013603, 2020-2022 F250/F350 6 Inch RA Front Box Suspension System (UPC 658848613724)
• BDS033611, 2005-2022 Ford F250/F350 6 Inch (Diesel) Coil Kit (UPC 658848616589)
• BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (UPC 711745604087)
• BDS123605, 2017-2022 SD T-Case Indexing Kit- Diesel (UPC 711745604377)
• BDS85431, 2017-2024 F250/F350 Single Stabilizer (UPC 711745609242)
• FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
