2021-2024 Bronco 3" SST Lift Kit (69-21310)

Description

Note: Will NOT fit any Bronco Sport models

For those who own the Sasquatch package, you are well aware that these Broncos are built for some serious off-roading. With locking front and rear axles, high-clearance suspension, and aggressive fender flares, not just any lift kit will do.

ReadyLift has engineered this kit specifically for the Sasquatch package-equipped Bronco, giving you superior performance, durability, and unmatched curb appeal. Featuring fully bolt-on, high-angle HD ball joints pre-installed into the tubular control arms, eliminating the need to modify your OEM ball joints, effectively maintaining your factory geometry, and vastly improving articulation over any trail.

Part Number: 69-21310

Features

• 100% bolt-on installation, no modifications required
• CNC-machined aircraft-grade 6061 T6 billet Aluminum front spacers
• CNC turned 4130 Chromoly front preload spacers
• High-strength steel offset rear spacers
• .250" steel heavy-duty rear track bar bracket to optimize rear geometry

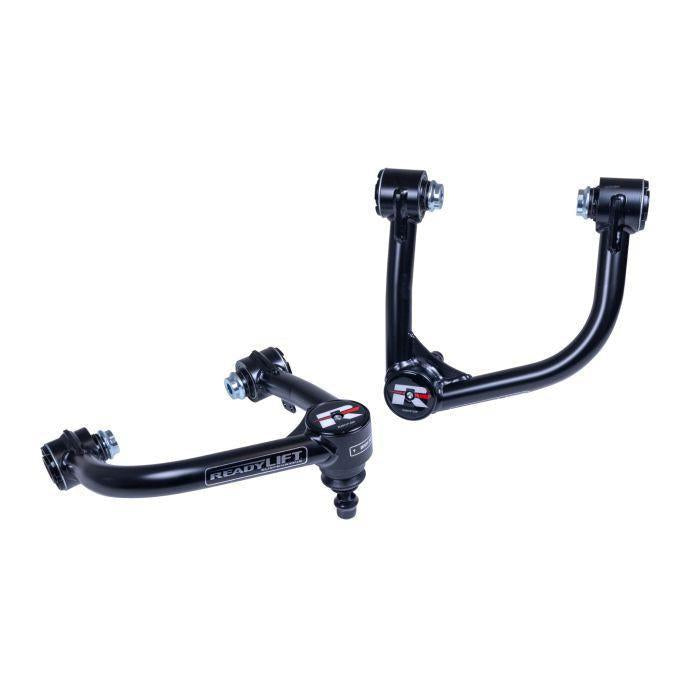

• High-performance tubular upper control arms
• Corrected ball joint angle and position to address caster/camber
• Dust cap to protect from debris
• High-grade hardware

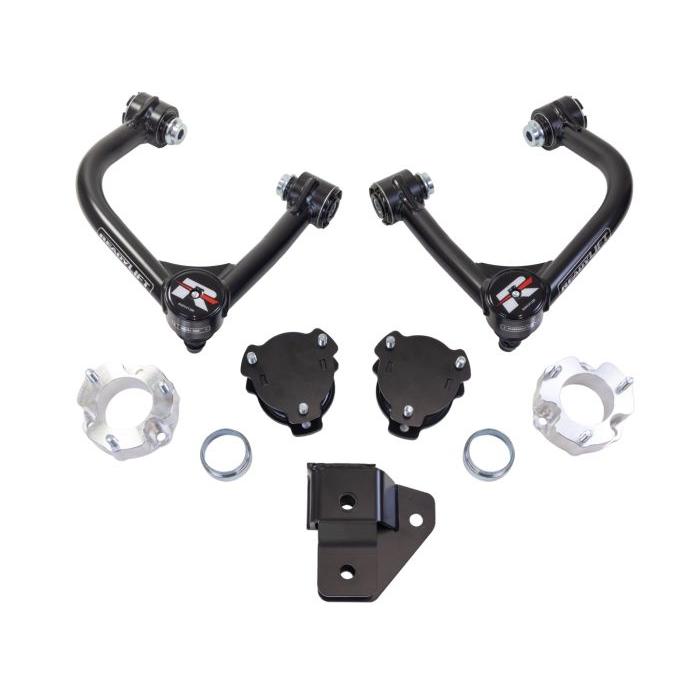

Includes:

• (2) Front strut spacers
• (2) Front preload spacers
• (1) Left upper control arm
• (1) Right upper control arm
• (2) Rear strut spacers
• (1) Rear track bar bracket
• Rear brake line bracket
• Hardware pack

Additional Info

Tire Fitment:

• Allows for up to 37x12.50" tall tires when used on 17"x8.5" wide wheels with a +18mm offset
• Max tire size with trimming 38"x12.50" on 17"x8.5" wide wheels with a +18mm offset

Notes

• Although 37" x 12.50" will work at ride height, the tires will still contact the front body mount and possibly the rear inner fender through wheel travel and steering lock to lock. If running this size tire and using the full suspension travel, these areas must be addressed.
• Designed exclusively for Sasquatch Package-equipped vehicles, including Badlands, Wildtrak, First Edition, and Wildtrack.
• Not for use on Bronco Sport or vehicles equipped with Hoss 3.0 Fox shocks.

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs LTD are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
