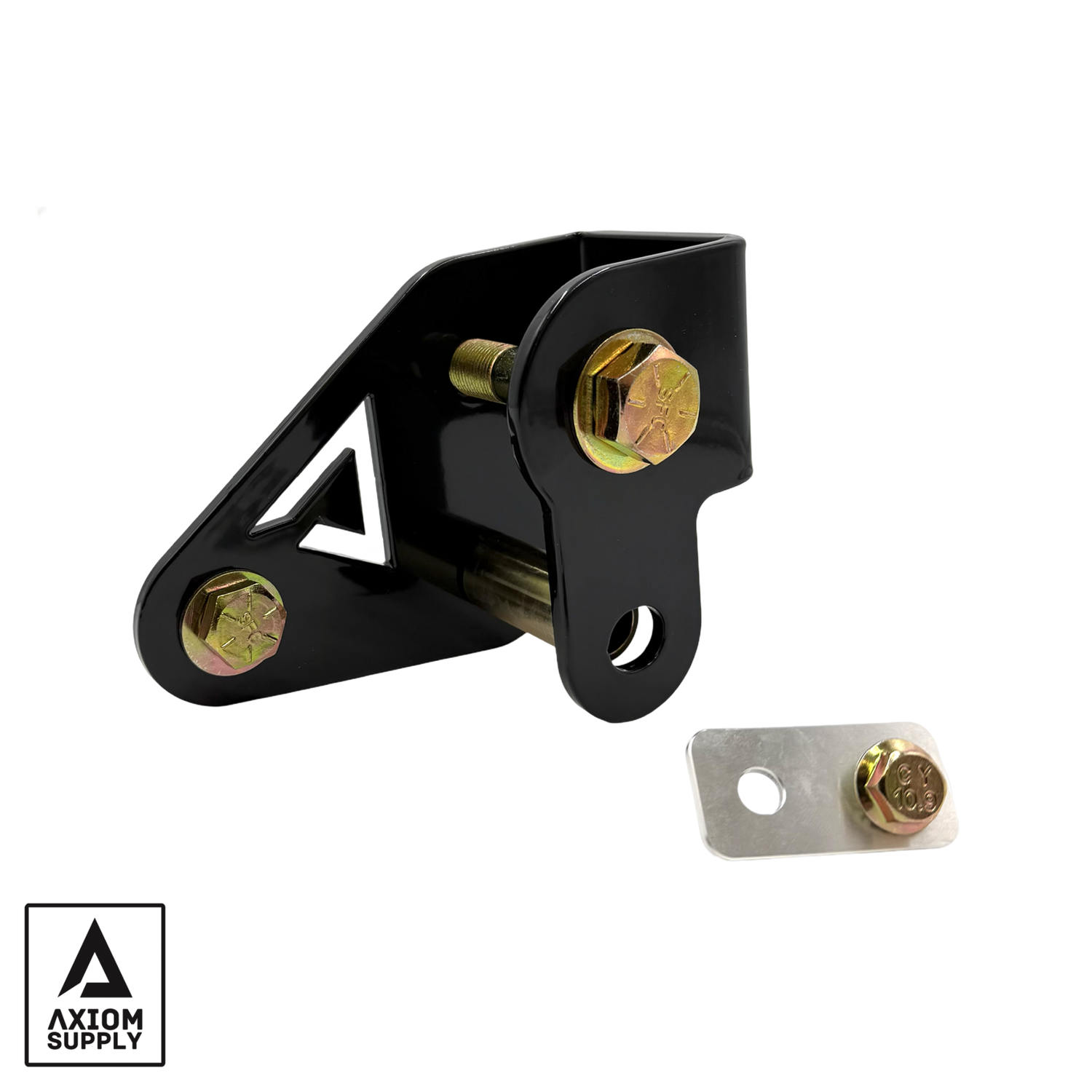

2021-2023 Bronco Rear Track Bar Relocation Kit (AXBRTB01)

Description

You'll want this Axiom Supply bracket on lifted vehicles that carry extra weight up high or behind the tailgate. Adding this bracket helps restore rear suspension geometry and improve handling by raising the rear roll center closer to the vehicle's center of gravity. This fully bolt-on kit works with factory and aftermarket track bars, installs on the factory axle housing, and includes a rear brake line relocation tab for proper clearance at the new track bar bolt location.

Features

• 3/16" plate steel construction with a durable powder coated finish
• Grade 10.9 hardware with corrosion-resistant zinc coating
• Precision-machined sleeve and reinforced washer for proper fit and finish

Includes

• (1) Track Bar Relocation Tab
• (1) Brake Line Relocation Bracket
• (1) Hardware Pack

Notes

• *Not for use on - stock vehicles!
• Base Model +2 in. lift
• Badlands Model +1 1/2 in. lift
• Sasquatch Package (any model) +1 in. lift

Important Fitment Notes:

• Shocks 18.15 in. minimum rear shock length at full compression (otherwise bracket can collide with the frame).
• Trac Bar Intended to be used with a factory or an aftermarket adjustable track bar
• Bracket Specs. 3/16 in. laser cut and formed steel, gloss black powder coat finish.
