2021-2025 GM 1500 3" Lift Kit Tahoe Suburban Yukon (69-31300)

ReadyLIFT is now shipping a premium-grade lift solution for the GM 1500 SUVs. The 3 inch SST Lift Kit is engineered specifically for vehicles with standard coil suspension to provide 3 inches of lift height overstock, without over-lifting. Three inches of lift is perfect for installing a plus-1 or plus-2 larger tire and wheel combination, all while maintaining the plush factory ride and handling. This is the highest-quality, best-engineered bolt-on lift system available for these SUVs. The kit includes ReadyLIFT tubular control arms with corrected ball joint cup angles, heavy-duty one-ton ball joints, and maintenance-free non-bonded TCT pivot bushings that ensure proper suspension geometry. The front lift uses new heavy-duty steel top mount front strut extensions, while the rear is lifted with fabricated steel top mount spacers and CNC-machined billet Aluminum rear coil spring pre-load spacers, which add a touch of rear spring rate ideal for preventing rear sag when the vehicle is loaded down. The kit also includes new relocation brackets for critical suspension sensor wires.

Features

• 3 inch lift height over stock provides a substantially taller stance
• Bolt-on installation with no modifications required
• Includes ReadyLIFT tubular control arms with corrected ball joint pivot angles and heavy-duty 1-ton ball joints
• Maintenance-free non-bonded TCT pivot bushings for proper suspension geometry
• Heavy-duty steel top mount front strut extensions and CNC-machined billet Aluminum rear coil spring pre-load spacers for lift
• Rear pre-load spacers help prevent rear sag when vehicle is loaded
• Includes new relocation brackets for critical suspension sensor wires
• Maintains the plush factory ride and handling experience

Specs

• Lift Height: 3 inches over stock

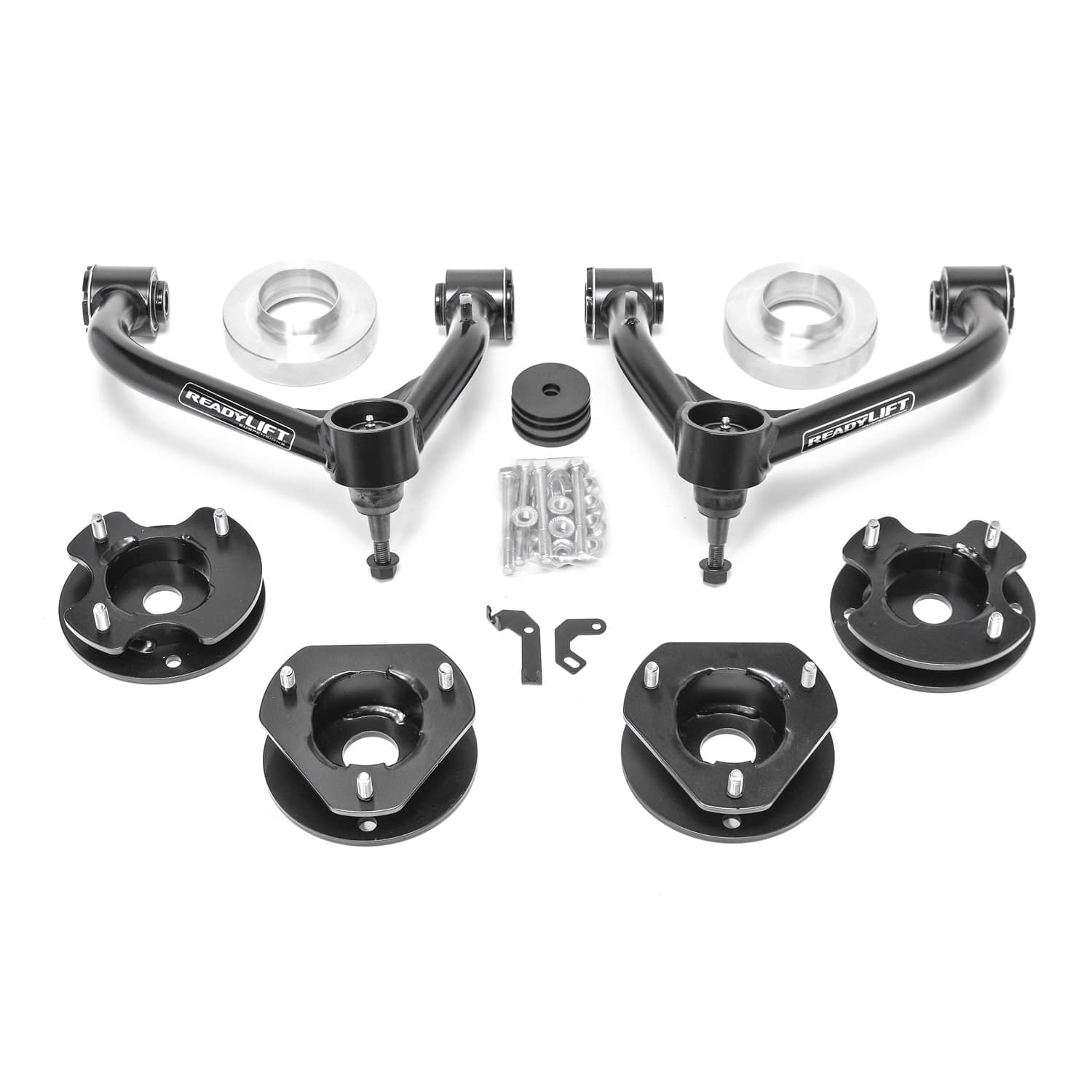

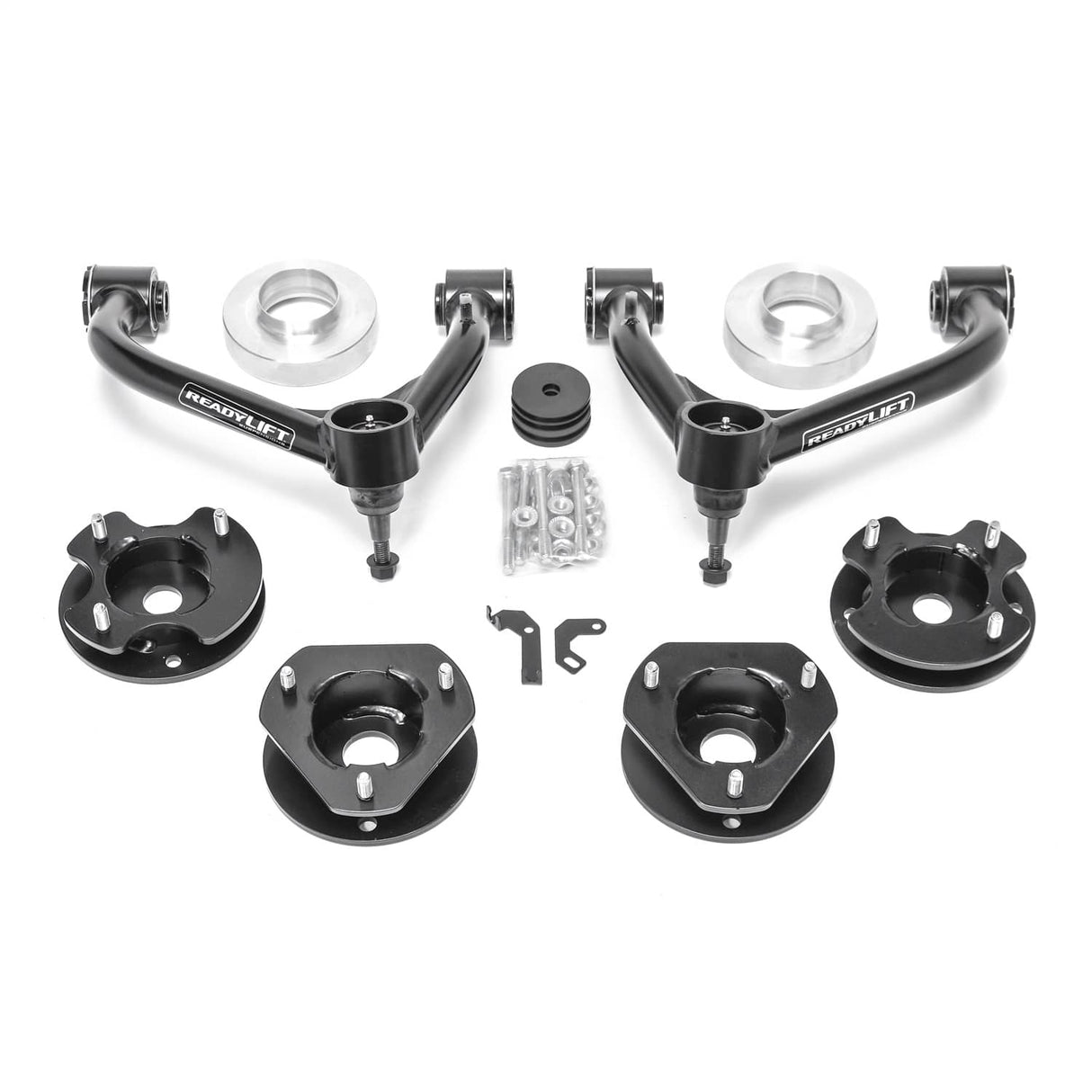

• Kit Components: Front Strut Spacer, Front Upper Control Arms, Rear Preload Spacer, Rear Strut Spacer, Sensor Relocation Bracket, Brake Pad Sensor Relocation Bracket, Hardware Pack
• Control Arms: Tubular steel with heavy-duty 1-ton ball joints and TCT pivot bushings

Compatibility Notes

• Fits Chevrolet Tahoe, Suburban and GMC Yukon vehicles with standard coil suspension from 2021 to 2025.
• Fits 2WD/4WD models.
• Excludes models with Magnetic Ride Control and adaptive air suspension.
• Will not work on Premier, High Country, AT4, and Denali trims.
• Not for use with GM Super Cruise or GM Ultra Cruise.
• Will not work with stock OE wheels.
• Allows for up to a 285/60-20 tire on a +18 offset wheel with no trimming. A 295/60-20 with a 0 to +14mm offset can be installed with trimming.
• If using Chevy Tahoe Diesel, a tire size of 285/60R20 +18 will require trimming or recommend a smaller tire size.

Notes

• The product is backed by a ReadyLIFT ReadyGuard Powertrain warranty.
• The vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
