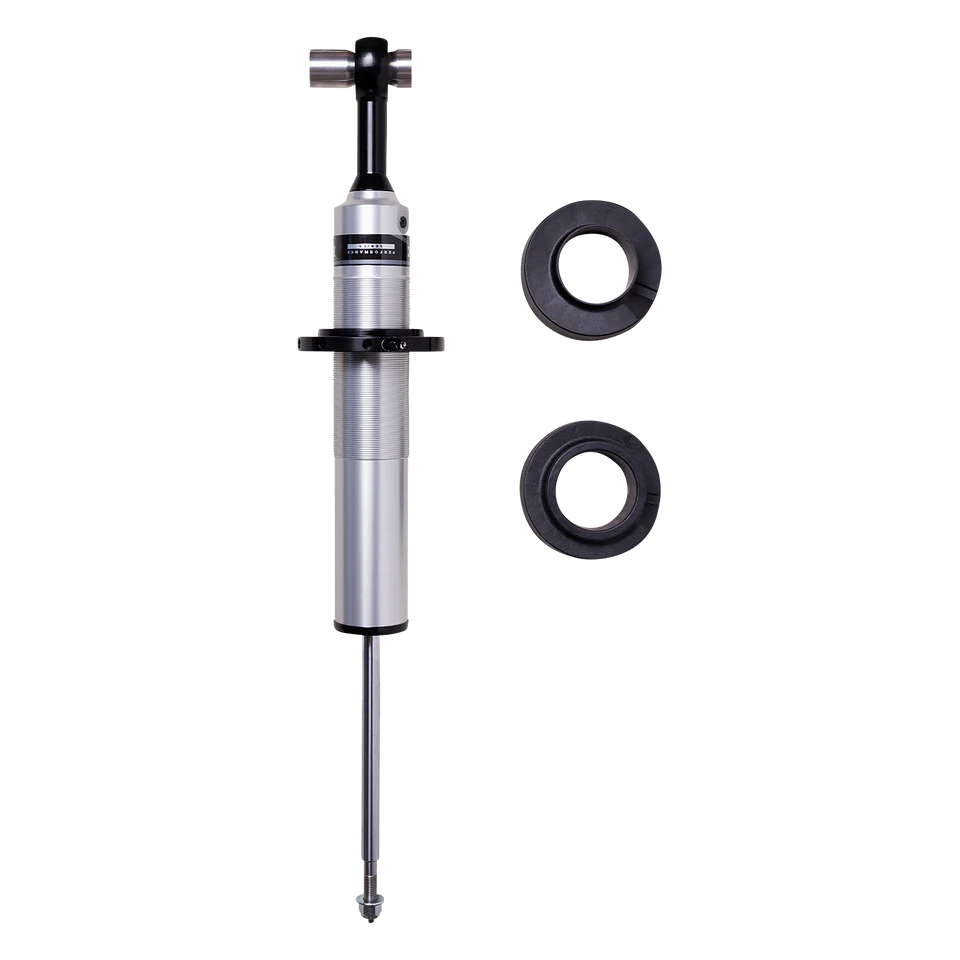

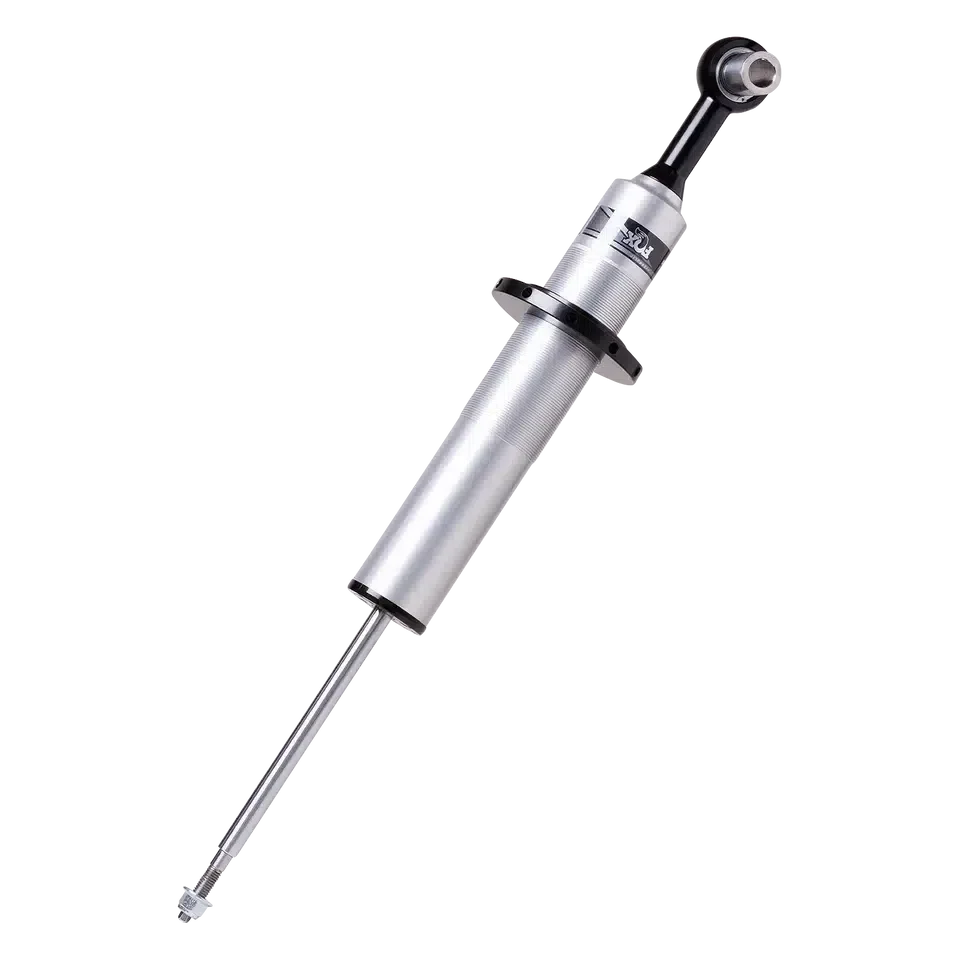

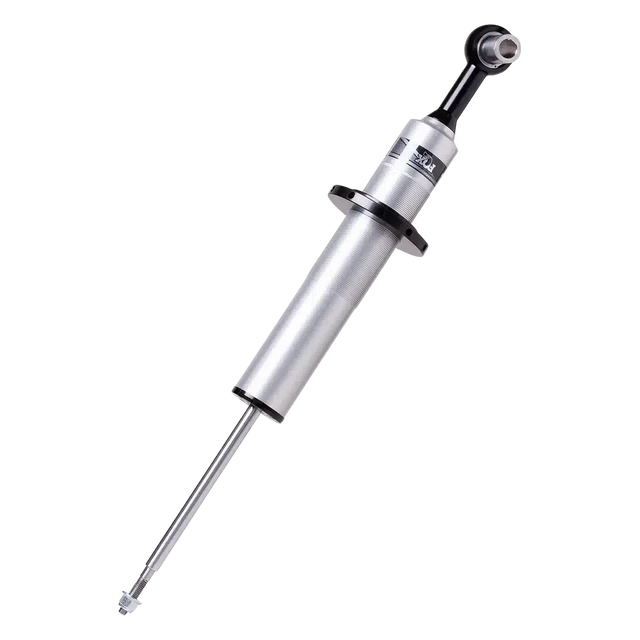

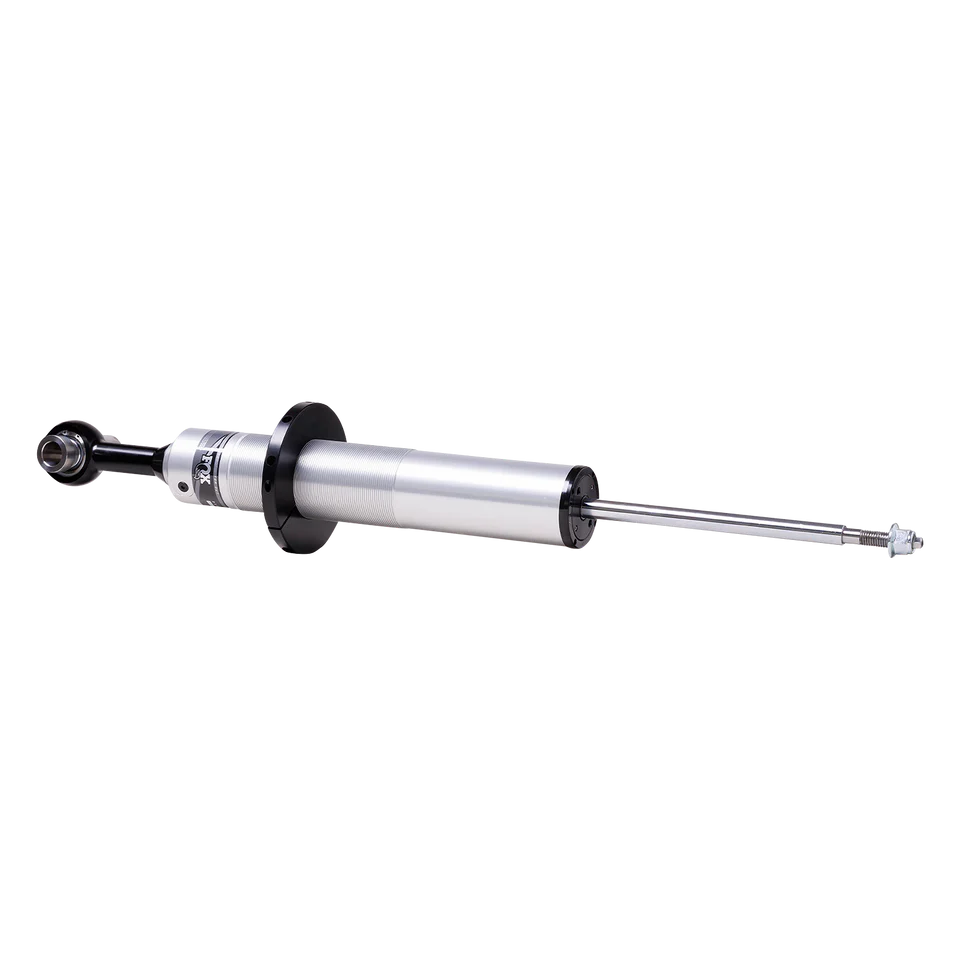

2021-2024 Bronco Rear 0-2" Performance Series 2.5 IFP Coilover Shock (987-62-001)

Description

The FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on- and off-road performance. A Type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement, reducing harsh top-outs and increasing comfort especially with heavier or more aggressive setups.

Part Number: 987-62-001

Features

• 2.5ʺ impact-extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating to resist corrosion
• High-flow velocity-sensitive damping
• 5/8ʺ hard chrome shaft
• Internal Floating Piston (IFP)

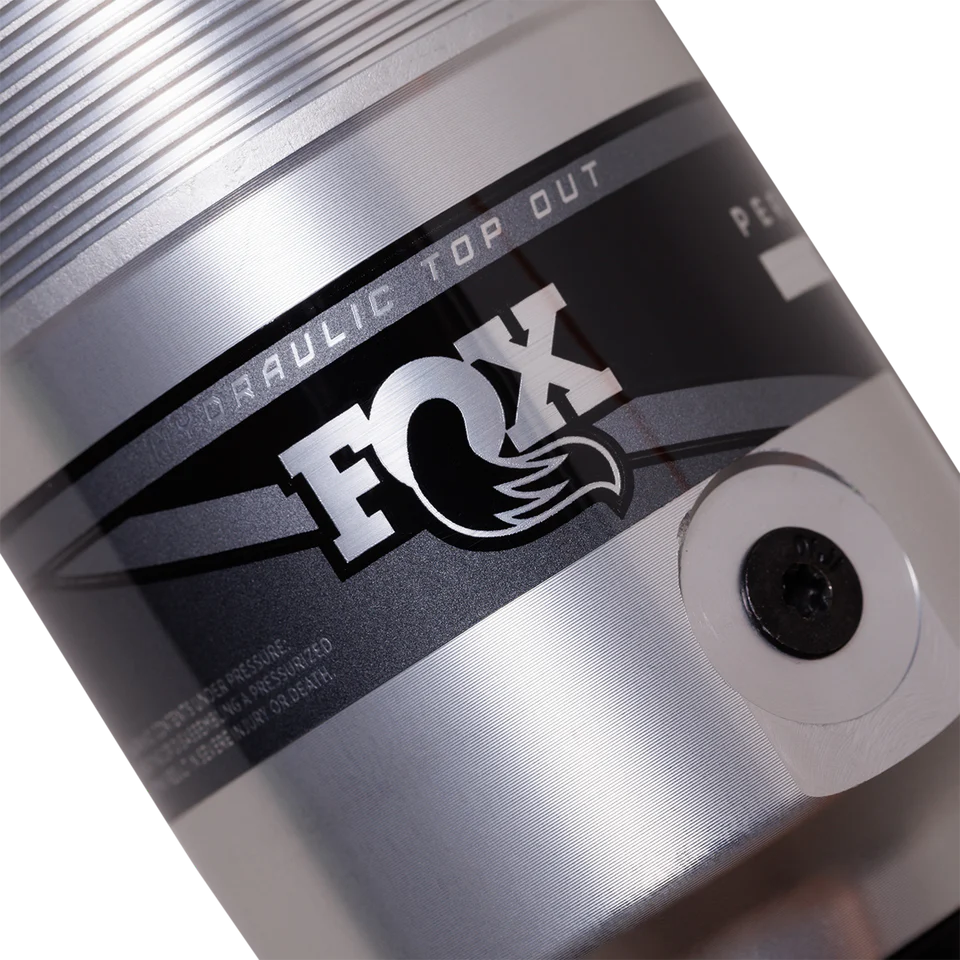

• Hydraulic Top Out (HTO) counteracts harsh top-outs
• OEM top mount, reuse OE springs and spring hardware

Specs

• Travel: 7.97″
• Extended Length: 26.47″
• Compressed Length: 18.50″

Notes

• Reuse OE spring and OE top mount hardware for correct fit

Warranty

FOX Manufacturer Warranty: Covers defects in materials and workmanship under normal use according to FOX’s published terms.
