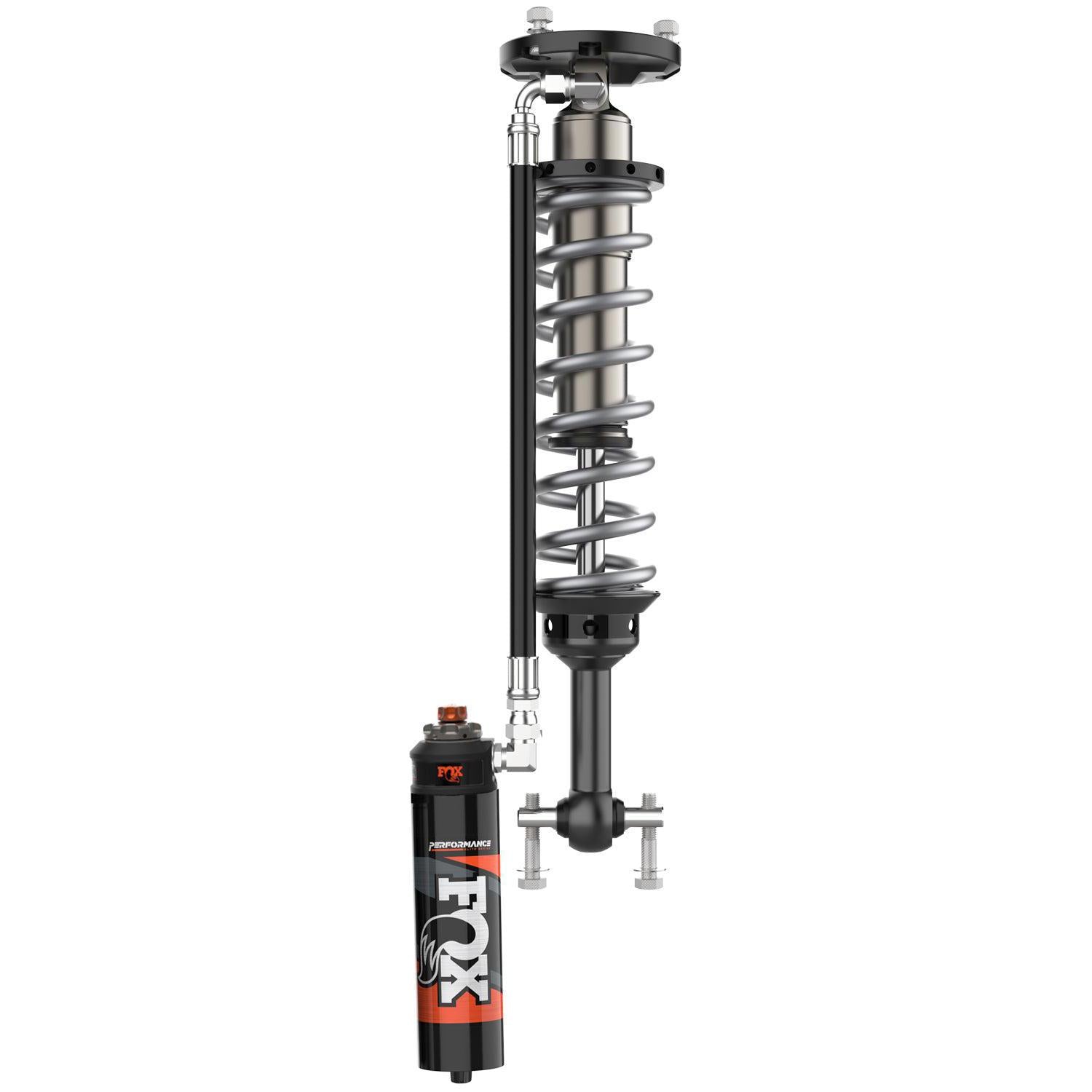

2021-2025 F-150 2.5 Elite Series 1.5-2" Lift Front R/R Coilovers w/ DSC (883-06-200)

Description

FOX Factory Race Series 2.5 Internal Bypass shocks for the F-150 deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Part Number: 883-06-200

Features

• Performance Tuned For Vehicle Specific Application
• Aluminum Body Dissipates Heat Faster Than Steel
• External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components

Specs:

• Extended Length: 22.02"
• Compressed Length: 16.15"
• Travel Length: 5.08"
• Top Mount: OEM
• Bottom Mount: Bar Pin
