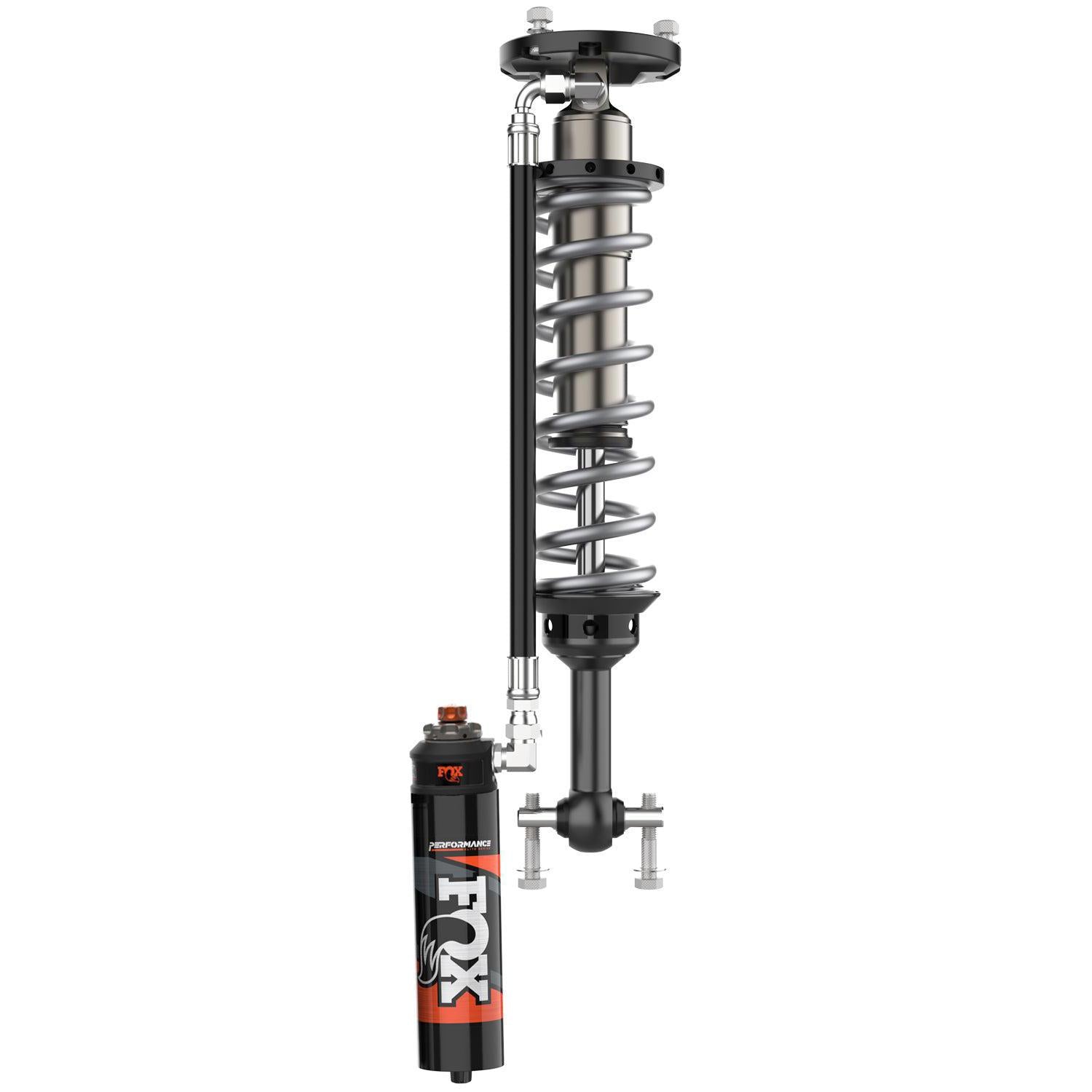

2021-2025 F-150 2.5 Elite Series 2" Lift Front RR Coilovers w/ DSC (883-06-199)

Description

Note: Zero lift on Tremor models

FOX Performance Elite Series 2.5 shocks improve the stock F-150 platform by eliminating the forward rake, providing a level ride height, and increasing the suspension articulation of your truck.

Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External Reservoirs increase oil capacity, remove dead space from the shock Body, and decrease the harshness associated with nitrogen ramp-up. Cooler shock temperatures, more Travel, and consistent damping forces result. Each Reservoir Features a Dual Speed Compression (DSC) adjuster, strategically mounted to eliminate interference with aggressive tires at full lock.

Part Number: 883-06-199

Features

• 2.5" impact-extruded and CNC machined 6061-T6 Type III anodized aluminum Body
• Application-specific springs
• 7/8" hard chrome-plated steel Shafts
• Vehicle-specific Valving to maximize performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Rear Shaft boot to protect against roost spray

Specs:

• Travel: 5.58"
• Front Lift Height: 2"
• Extended Length: 23.32"
• Compressed Length: 16.94"
• Top Mount: OEM
• Bottom Mount: Bar Pin
